ObjectStore Collections C++ API Reference

Chapter 2 Collection, Query, and Index Classes

Classes

This chapter presents the following classes related to collections, queries, and indexes:

os_Array

template <class E>
class os_Array : public os_Collection<E>

An array, like a list (see the class os_List), is an ordered collection. Arrays always provide access to collection elements in constant time. That is, for all allowable representations of an os_Array, the time complexity of operations such as retrieval of the n^th element is order 1 in the array's cardinality.

Arrays also have a set_cardinality() function that changes the array cardinality, filling the additional array slots (if the cardinality is increased) with a specified fill value. In addition, the array create() functions have additional arguments that allow specification of the initial array cardinality and fill value (the initial value to put in each slot).

By default, arrays allow both duplicates and nulls. As with other ordered collections, array elements can be inserted, removed, replaced, or retrieved based on a specified numerical array index or based on the position of a specified cursor.

If an element is inserted into an os_Array, elements after it are pushed down in order. If an element is removed, elements after it in the array are pushed up. If you want the index to an element to remain constant, set the element at index n to either 0 or another pointer.

The class os_Array is parameterized, with a parameter for constraining the type of values allowable as elements (for the nonparameterized version of this class, see os_array). This means that when specifying os_Array as a function's formal parameter, or as the type of a variable or data member, you must specify the parameter (the array's element type). This is accomplished by appending to os_Array the name of the element type enclosed in angle brackets, < >:

os_Array< element-type-name>

The element type parameter, E, occurs in the signatures of some of the functions described below. The parameter is used by the compiler to detect type errors.

The element type of any collection type, such as an array, must be a pointer type (for example, employee*).

Create arrays with the member create() or, for stack-based or embedded collections, with a constructor. Do not use new to create arrays.

Required header files

Programs using arrays must include the header file <ostore/coll.hh> after including <ostore/ostore.hh>.

Required libraries

Programs using arrays must link with the library file oscol.lib
(UNIX platforms) or oscol.ldb (Windows platforms).

Type definitions

The types os_int32 and os_boolean, used throughout this manual, are each defined as a signed 32-bit integer type. The type os_unsigned_int32 is defined as an unsigned 32-bit integer type.

Name	Arguments	Returns	Defined By
add_index	( const os_index_path&, os_int32 options, os_database* ) ( const os_index_path&, os_int32 options, os_segment* = 0 ) ( const os_index_path&, os_segment* = 0 ) ( const os_index_path&, os_database* )	void void void void	os_collection
cardinality	( ) const	os_unsigned_int32	os_collection
change_behavior	( os_unsigned_int32 behavior_enums, os_int32 = verify_enum )	void	os_collection
change_rep	( os_unsigned_int32 expected_size const os_coll_rep_descriptor *policy = 0, os_int32 retain_enum = dont_associate_policy )	void	os_collection
clear	( )	void	os_collection
contains	( const E ) const	os_int32	os_Collection
count	( const E ) const	os_int32	os_Collection
create (static)	( os_database db, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor = 0, os_int32 retain_enum = dont_associate_policy, os_unsigned_int32 cardinality = 0, E fill_value = 0 )	os_Array<E>&	os_Array
	( os_segment* seg, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor* = 0, os_int32 retain_enum = dont_associate_policy, os_unsigned_int32 cardinality = 0, E fill_value = 0 )	os_Array<E>&
	( os_object_cluster clust, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor = 0, os_int32 retain_enum = dont_associate_policy, os_unsigned_int32 cardinality = 0, E fill_value = 0 )	os_Array<E>&
	( void proximity, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor = 0, os_int32 retain_enum = dont_associate_policy, os_unsigned_int32 cardinality = 0, E fill_value = 0 )	os_Array<E>&
default_behavior (static)	( )	os_unsigned_int32	os_Array
destroy (static)	( os_Array<E>& )	void	os_Array
drop_index	( const os_index_path& )	void	os_collection
empty	( )	os_int32	os_collection
exists	( char element_type_name, char query_string, os_database schema_database = 0, char file os_unsigned_int32 line ) ( const os_bound_query& ) const	os_int32 os_int32	os_collection
get_behavior	( ) const	os_unsigned_int32	os_collection
get_rep	( ) const	os_coll_rep_ descriptor&	os_collection
has_index	( const os_index_path&, os_int32 index_option_enums ) const	os_int32	os_collection
initialize (static)	( )	void	os_collection
insert	( const E )	void	os_Collection
insert_after	( const E, const os_Cursor<E>& ) ( const E, os_unsigned_int32 )	void void	os_Collection
insert_before	( const E, const os_Cursor<E>& ) ( const E, os_unsigned_int32 )	void void	os_Collection
insert_first	( const E )	void	os_Collection
insert_last	( const E )	void	os_Collection
multi_trans_add_ index	static void multi_trans_add_index( os_reference c, const os_index_path & p, os_int32 index_options, os_segment * index_seg, os_segment * scratch_seg, os_unsigned_int32 num_per_trans )		os_collection
multi_trans_drop_ index	static void multi_trans_drop_index( os_reference c, const os_index_path & p, os_segment * scratch_seg, os_unsigned_int32 num_per_trans )		os_collection
only	( ) const	E	os_Collection
operator os_Bag<E>&	( )		os_Collection
operator const os_Bag<E>&	( ) const		os_Collection
operator os_bag&	( )		os_collection
operator const os_bag&	( ) const		os_collection
operator os_List<E>&	( )		os_Collection
operator const os_List<E>&	( ) const		os_Collection
operator os_list&	( )		os_collection
operator const os_list&	( ) const		os_collection
operator os_Set<E>&	( )		os_Collection
operator const os_Set<E>&	( ) const		os_Collection
operator ==	( const os_Collection<E>& ) const ( E ) const	os_int32 os_int32	os_Collection
operator !=	( const os_Collection<E>& ) const ( E ) const	os_int32 os_int32	os_Collection
operator <	( const os_Collection<E>& ) const ( E ) const	os_int32 os_int32	os_Collection
operator <=	( const os_Collection<E>& ) const ( E ) const	os_int32 os_int32	os_Collection
operator >	( const os_Collection<E>& ) const ( E ) const	os_int32 os_int32	os_Collection
operator >=	( const os_Collection<E>& ) const ( E ) const	os_int32 os_int32	os_Collection
operator =	( const os_Array<E>& ) const ( const os_Collection<E>& ) const ( E ) const	os_Array<E>& os_array& os_array	os_Array
operator \|=	( const os_Collection<E>& ) const ( E ) const	os_Array<E>& os_Array<E>&	os_Array
operator \|	( const os_Collection<E>& ) const ( E ) const	os_Collection<E>& os_Collection<E>&	os_Collection
operator &=	( const os_Collection<E>& ) const ( E ) const	os_Array<E>& os_Array<E>&	os_Array
operator &	( const os_Collection<E>& ) const ( E ) const	os_Collection<E>& os_Collection<E>&	os_Collection
operator -=	( const os_Collection<E>& ) const ( E ) const	os_Array<E>& os_Array<E>&	os_Array
operator -	( const os_Collection<E>& ) const ( E ) const	os_Collection<E>& os_Collection<E>&	os_Collection
os_Array<E>	( ) ( os_collection_size expected_size ) ( const os_Array<E>& ) ( const const os_Collection<E>& ) ( os_unsigned_int32 card, E fill_value )		os_Array
pick	( ) const ( const os_index_path&, const os_coll_range&) const	E E	os_Collection
query	( char element_type_name, char query_string, os_database schema_database = 0, char file, os_unsigned_int32 line, os_boolean dups ) const ( const os_bound_query&, os_boolean dups ) const	os_Collection<E>& os_Collection<E>&	os_Collection
query_pick	( char element_type_name, char query_string, os_database schema_database = 0, char filename, os_unsigned_int32 line ) const ( const os_bound_query& ) const	E E	os_Collection
remove	(const E )	os_int32	os_Collection
remove_at	( const os_Cursor<E>& ) ( os_unsigned_int32 )	void void	os_Collection
remove_first	(const E& ) ( )	os_int32 E	os_Collection
remove_last	(const E& ) ( )	os_int32 E	os_Collection
replace_at	( const E, const os_Cursor<E>& ) ( const E, os_unsigned_int32 )	E E	os_Collection
retrieve	( os_unsigned_int32 ) const ( const os_Cursor<E>& ) const	E E	os_Collection
retrieve_first	( ) const ( const E& ) const	E os_int32	os_Collection
retrieve_last	( ) const ( const E& ) const	E os_int32	os_Collection
set_cardinality	( os_unsigned_int32 new_card, E fill_value )	void	os_Array

os_Array enumerators

The following table lists the enumerators that can be used for os_Array member functions.


Name	Inherited From
allow_duplicates	os_collection
allow_nulls	os_collection
associate_policy	os_collection
dont_associate_policy	os_collection
dont_verify	os_collection
EQ	os_collection
GT	os_collection
LT	os_collection
maintain_cursors	os_collection
maintain_order	os_collection
pick_from_empty_returns_null	os_collection
signal_cardinality	os_collection
signal_duplicates	os_collection
unordered	os_collection
verify	os_collection

os_Array::create()

static os_Array<E> &create(
      os_database *db,
      os_unsigned_int32 behavior_enums = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain_enum = dont_associate_policy,
      os_unsigned_int32 cardinality = 0,
      E  fill_value = 0
);

Creates a new array in the database pointed to by db. If the transient database is specified, the array is allocated in transient memory.

Properties

A new array has the following default properties:


Property	Enumerator That Controls Behavior
Its entries are ordered.	os_collection::maintain_order (required)
Duplicate elements are allowed.	os_collection::allow_duplicates (on by default)
Null pointers can be inserted.	os_collection::allow_nulls (required)
It has array semantics.	os_collection::be_an_array (required)

An array can also have these behaviors:

Behavior Enumerators
With pick() returns null from an empty array. When this behavior is not specified, err_coll_empty is raised.
os_collection::pick_from_empty_ returns_null

Signals when an attempt is made to insert a duplicate element into array for allow_duplicates is not in effect.
os_collection::signal_duplicates

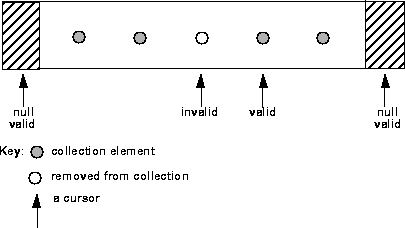

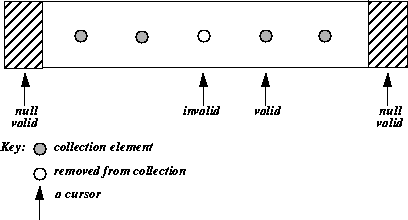

Maintains the position of a cursor while elements are being inserted or removed from an array.
os_collection::maintains_cursors

Behavior	Enumerators
With pick() returns null from an empty array. When this behavior is not specified, err_coll_empty is raised.	os_collection::pick_from_empty_ returns_null
Signals when an attempt is made to insert a duplicate element into array for allow_duplicates is not in effect.	os_collection::signal_duplicates
Maintains the position of a cursor while elements are being inserted or removed from an array.	os_collection::maintains_cursors

By default a new array also has the following properties:

Performing pick() on an empty array raises err_coll_empty.
No guarantees are made concerning whether an element inserted or removed during a traversal of its elements will be visited later in that same traversal.

Using the behavior_enums argument, you can customize the properties of new arrays with regard to these two properties.

See Customizing Collection Behavior in ObjectStore Advanced C++ API User Guide for further information.

Representation policy

The default representation policy for arrays is as follows:

An array created as an embedded object has the representation of os_tiny_array (0 to 4 elements). An embedded array becomes out of line and mutates to an os_chained_list when the fifth element is inserted.
An array created with ::create with cardinality <= 20 is represented as an os_chained_list.
Once the array grows past 20, its representation is os_packed_list. (see the description in Chapter 4, Advanced Collections, of ObjectStore Advanced C++ API User Guide).

If you want a new array presized for a different cardinality, supply the expected_size argument explicitly.

Note that expected_size determines the initial representation. So, for example, if expected_size is 21, os_packed_list is used for the array's entire lifetime (unless you use change_rep()).

If you want to customize the representation of a new array, pass an os_rep as the rep_policy argument and pass the enumerator os_collection::dont_associate_policy as the retain argument, or else pass an os_rep_policy as the policy argument and pass the enumerator os_collection::associate_policy as the retain argument. See the class os_rep. See also Customizing Collection Behavior in ObjectStore Advanced C++ API User Guide.

cardinality and
fill_value

cardinality and fill_value specify the number of slots in the new array, and the value to occupy all slots initially. The value specified by the cardinality argument must be less than or equal to the expected_size

can also affect the underlying collection representation; the larger of the two values (the values for cardinality and expected_size) takes precedence.

static os_Array<E> &create(
      os_segment * seg,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy,
      os_unsigned_int32 cardinality = 0,
      E fill_value = 0
);

Creates a new array in the segment pointed to by seg. If the transient segment is specified, the array is allocated in transient memory. The rest of the arguments are just as described above.

static os_Array<E> &create(
      os_object_cluster *clust,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy,
      os_int32 cardinality = 0,
      E fill_value = 0
);

Creates a new array in the object cluster pointed to by clust. The rest of the arguments are just as described above.

static os_Array<E> &create(
      void * proximity,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy,
      os_int32 cardinality = 0,
      E fill_value = 0
);

Creates a new array in the segment occupied by the object pointed to by proximity. If the object is part of an object cluster, the new array is allocated in that cluster. If the specified object is transient, the array is allocated in transient memory. The rest of the arguments are just as described above.

os_Array::default_behavior()

static os_unsigned_int32 default_behavior();

Returns a bit pattern indicating this type's default behavior, which is maintain_order, allow_duplicates, allow_nulls, and be_an_array.

os_Array::destroy()

static void destroy(os_Array<E>&);

Deletes the specified array and deallocates associated storage. This is the same as calling delete on a pointer to an os_Array.

Assignment Operator Semantics

Note: The assignment operator semantics are described for the following functions in terms of insert operations into the target collection. Describing the semantics in terms of insert operations serves to illustrate how duplicate, null, and order semantics are enforced. The actual implementation of the assignment might be quite different, while still maintaining the associated semantics.

os_Array::operator =()

os_Array<E> &operator =(const os_Array<E> &s);

Copies the contents of the array s into the target array and returns the target array. The copy is performed by effectively clearing the target, iterating over the source array, and inserting each element into the target collection. The iteration is ordered. The target collection semantics are enforced as usual during the insertion process.

os_Array<E> &operator =(const os_array<E> &s);

Copies the contents of the array s into the target array and returns the target array. The copy is performed by effectively clearing the target, iterating over the source array, and inserting each element into the target array. The iteration is ordered if the source array is ordered. The target array semantics are enforced as usual during the insertion process.

os_Array<E> &operator =(const E e);

Clears the target array, inserts the element e into the target array, and returns the target array.

os_Array::operator |=()

os_Array<E> &operator |=(const os_Collection<E> &s);

Inserts the elements contained in s into the target array and returns the target array.

os_Array<E> &operator |=(const E e);

Inserts the element e into the target array, and returns the target array. In effect, this appends the elements of a collection to an os_Array.

os_Array::operator &=()

os_Array<E> &operator &=(const os_Collection<E> &s);

For each element in the target collection, reduces the count of the element in the target to the minimum of the counts in the source and target collections. If the collection is ordered and contains duplicates, it does so by retaining the appropriate number of leading elements. It returns the target collection.

os_Array<E> &operator &=(const E e);

If e is present in the target, converts the target into a collection containing just the element e. Otherwise, it clears the target collection. It returns the target collection.

os_Array::operator -=()

os_Array<E> &operator -=(const os_Collection<E> &s);

For each element in the collection s, removes s.count(e) occurrences of the element from the target collection. If the collection is ordered it is the first s.count(e) elements that are removed. It returns the target collection.

os_Array<E> &operator -=(const E e);

Removes the element e from the target collection. If the collection is ordered, it is the first occurrence of the element that is removed from the target collection. It returns the target collection.

os_Array::os_Array()

os_Array();

Returns an empty array.

os_Array(os_collection_size);

The user should pass an os_int32 as the os_collection_size argument. Returns an empty array whose initial implementation is based on the expectation that the specified os_int32 indicates the approximate usual cardinality of the array, once it has been loaded with elements.

os_Array(const os_Array<E>&);

Returns an array that results from assigning the specified array to an empty array.

os_Array(const os_Collection<E>&);

Returns an array that results from assigning the specified collection to an empty array.

os_Array(os_unsigned_int32 card, E fill_value);

Returns an array with cardinality card, all of whose elements are fill_value.

os_Array::set_cardinality()

void set_cardinality(os_unsigned_int32 new_card, E fill_value);

Augments the array to have the specified cardinality, using the specified fill_value to occupy the array's new slots.

os_array

class os_array : public os_collection

An array, like a list (see the class os_list), is an ordered collection. Unlike other ordered collections, however, arrays have a set_cardinality() function that changes the array cardinality, filling the additional array slots (if the cardinality is increased) with a specified fill value. In addition, the array create() functions have additional arguments that allow specification of the initial array cardinality and fill value (the initial value to put in each slot). By default, arrays allow both duplicates and nulls. As with other ordered collections, array elements can be inserted, removed, replaced, or retrieved based on a specified numerical array index or based on the position of a specified cursor.

The class os_array is nonparameterized. For the parameterized version of this class, see os_Array.

Array elements are pointers, so the element type of any array must be a pointer type (for example, char*).

Create arrays with the member create() or, for stack-based or embedded arrays, with a constructor. Do not use new to create arrays.

Required header files

Any program using arrays must include the header file <ostore/coll.hh> after including <ostore/ostore.hh>.

Required libraries

Programs using arrays must link with the library file oscol.lib
(UNIX platforms) or oscol.ldb (Windows platforms).

Type definitions

The types os_int32 and os_boolean, used throughout this manual, are each defined as a signed 32-bit integer type. The type os_unsigned_int32 is defined as an unsigned 32-bit integer type.

Name	Arguments	Returns	Defined By
add_index	( const os_index_path&, os_int32 = options, os_database* = 0 ) ( const os_index_path&, os_int32 = options, os_segment* = 0 ) ( const os_index_path&, os_database* = 0 ) ( const os_index_path&, os_segment* = 0 )	void void void void	os_collection
cardinality	( ) const	os_unsigned_int32	os_collection
change_behavior	( os_unsigned_int32 behavior enums, os_int32 = verify_enum )	void	os_collection
change_rep	( os_unsigned_int32 expected_size, const os_coll_rep_descriptor *policy = 0, os_int32 retain_enum = dont_associate_policy )	void	os_collection
clear	( )	void	os_collection
contains	( const void* ) const	os_int32	os_collection
count	( const void* ) const	os_int32	os_collection
create (static)	( os_database db, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor = 0, os_int32 retain_enum = dont_associate_policy, os_unsigned_int32 cardinality = 0, void* fill_value = 0 )	os_array&	os_array
	( os_segment seg, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor = 0, os_int32 retain_enum = dont_associate_policy, os_unsigned_int32 cardinality = 0, void* fill_value = 0 )	os_array&
	( os_object_cluster clust, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor = 0, os_int32 retain_enum = dont_associate_policy, os_unsigned_int32 cardinality = 0, void* fill_value = 0 )	os_array&
	( void proximity, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor = 0, os_int32 retain_enum = dont_associate_policy, os_unsigned_int32 cardinality = 0, void* fill_value = 0 )	os_array&
default_behavior (static)	( )	os_unsigned_int32	os_array
destroy (static)	( os_array& )	void	os_array
drop_index	( const os_index_path& )	void	os_collection
empty	( ) const	os_int32	os_collection
exists	( char element_type_name, char query_string, os_database schema_database = 0, char file os_unsigned_int32 line ) ( const os_bound_query& ) const	os_int32 os_int32	os_collection
get_behavior	( ) const	os_unsigned_int32	os_collection
get_rep	( ) const	os_coll_rep_ descriptor&	os_collection
has_index	( const os_index_path&, os_int32 index_option_enums ) const	os_int32	os_collection
insert	( const void* )	void	os_collection
insert_after	( const void, const os_cursor& ) ( const void, os_unsigned_int32 )	void void	os_collection
insert_before	( const void, const os_cursor& ) ( const void, os_unsigned_int32 )	void void	os_collection
insert_first	( const void* )	void	os_collection
insert_last	( const void* )	void	os_collection
multi_trans_add_ index	static void multi_trans_add_index( os_reference c, const os_index_path & p, os_int32 index_options, os_segment * index_seg, os_segment * scratch_seg, os_unsigned_int32 num_per_trans )		os_collection
multi_trans_ drop_index	static void multi_trans_drop_index( os_reference c, const os_index_path & p, os_segment * scratch_seg, os_unsigned_int32 num_per_trans )		os_collection
only	( ) const	void*	os_collection
operator os_bag&	( )		os_collection
operator const os_bag&	( ) const		os_collection
operator os_list&	( )		os_collection
operator const os_list&	( ) const		os_collection
operator os_set&	( )		os_collection
operator const os_set&	( ) const		os_collection
operator ==	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator !=	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator <	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator <=	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator >	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator >=	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator =	( const os_array& ) const ( const os_collection& ) const ( const void* ) const	os_array& os_array& os_array	os_array
operator \|=	( const os_collection& ) const ( const void* ) const	os_array& os_array&	os_array
operator \|	( const os_collection& ) const ( const void* ) const	os_array& os_array&	os_array
operator &=	( const os_collection& ) const (const void* ) const	os_array& os_array&	os_array
operator &	( const os_collection& ) const ( const void* ) const	os_array& os_array&	os_array
operator -=	( const os_collection& ) const ( const void* ) const	os_array& os_array&	os_array
operator -	( const os_collection& ) const ( const void* ) const	os_array& os_array&	os_array
os_array	( ) ( os_int32 expected_size ) ( const os_array& ) ( const os_collection& ) ( os_unsigned_int32 card, void *fill_value )		os_array
pick	( ) const	void*	os_collection
query	( char element_type_name, char query_string, os_database schema_database = 0, char file, os_unsigned_int32 line, os_boolean dups ) const ( const os_bound_query&, os_boolean dups ) const	os_collection& os_collection&	os_collection
query_pick	( char element_type_name, char query_string, os_database schema_database = 0, char filename, os_unsigned_int32 line ) const ( const os_bound_query& ) const	void* void*	os_collection
remove	( const void* )	os_int32	os_collection
remove_at	( const os_cursor& ) ( os_unsigned_int32 )	void void	os_collection
remove_first	( const void*& ) ( )	os_int32 void*	os_collection
remove_last	( const void*& ) ( )	os_int32 void*	os_collection
replace_at	( const void, const os_cursor& ) ( const void, os_unsigned_int32 )	void* void*	os_collection
retrieve	( os_unsigned_int32 ) const ( const os_cursor& ) const	void* void*	os_collection
retrieve_first	( ) const ( const void*& ) const	void* os_int32	os_collection
retrieve_last	( ) const ( const void*& ) const	void* os_int32	os_collection
set_cardinality	( os_unsigned_int32 new_card, void *fill_value )	void	os_array

os_array enumerators

The following table lists the enumerators inherited by os_array from os_collection.


Name	Inherited From
allow_duplicates	os_collection
allow_nulls	os_collection
associate_policy	os_collection
dont_associate_policy	os_collection
dont_verify	os_collection
EQ	os_collection
GT	os_collection
LT	os_collection
maintain_cursors	os_collection
maintain_order	os_collection
pick_from_empty_returns_null	os_collection
signal_cardinality	os_collection
signal_duplicates	os_collection
unordered	os_collection
verify	os_collection

os_array::create()

static os_array &create(
      os_database *db,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy,
      os_unsigned_int32 cardinality = 0,
      void *fill_value = 0
);

Creates a new array in the database pointed to by db. If the transient database is specified, the array is allocated in transient memory.

Properties

Every array has the following properties:

Its entries are ordered.
Duplicate elements are allowed.
Null pointers can be inserted.

By default a new array also has the following properties:

Performing pick() on an empty result of querying the array raises err_coll_empty.
No guarantees are made concerning whether an element inserted or removed during a traversal of its elements will be visited later in that same traversal.

See also Customizing Collection Behavior in ObjectStore Advanced C++ API User Guide.

By default, arrays are presized with a representation suitable for cardinality 20 or less. If you want a new collection presized for a different cardinality, supply the expected_size argument explicitly.

If you want to customize the representation of a new collection, see Customizing Collection Representation in ObjectStore Advanced C++ API User Guide.

Representation policy

The default representation policy for arrays is as follows:

As the array grows from 0 to 15, the representation is os_chained_list (see a description in Chapter 4, Advanced Collections, of ObjectStore Advanced C++ API User Guide).
Once the array grows past 15, os_packed_list is used.

cardinality and
fill_value

cardinality and fill_value specify the number of slots in the new array, and the value to occupy all slots initially.

static os_array &create(
      os_segment * seg,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy,
      os_unsigned_int32 cardinality = 0,
      void *fill_value = 0
);

Creates a new array in the segment pointed to by seg. If the transient segment is specified, the array is allocated in transient memory. The rest of the arguments are just as described above.

static os_array &create(
      os_object_cluster *clust,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy,
      os_unsigned_int32 cardinality = 0,
      void *fill_value = 0
);

Creates a new array in the object cluster pointed to by clust. The rest of the arguments are just as described above.

static os_array &create(
      void * proximity,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy,
      os_unsigned_int32 cardinality = 0,
      void *fill_value = 0
);

os_array::default_behavior()

static os_unsigned_int32 default_behavior();

Returns a bit pattern indicating this type's default behavior.

os_array::destroy()

static void destroy(os_array&);

Deletes the specified array and deallocates associated storage.

os_array::operator =()

os_array &operator =(const os_array &s);
os_array &operator =(const os_collection &s);

Copies the contents of the collection s into the target collection and returns the target collection. The copy is performed by effectively clearing the target, iterating over the source collection, and inserting each element into the target collection. The iteration is ordered if the source collection is ordered. The target collection semantics are enforced as usual during the insertion process.

os_array &operator =(const void *e);

Clears the target array, inserts the element e into the target array, and returns the target array.

Note on assignment operator semantics

The assignment operator semantics are described throughout the ObjectStore Collections C++ API Reference in terms of insert operations into the target array. Describing the semantics in terms of insert operations serves to illustrate how duplicate, null, and order semantics are enforced. The actual implementation of the assignment might be quite different, while still maintaining the associated semantics.

os_array::operator |=()

os_array &operator |=(const os_collection &s);

Inserts the elements contained in s into the target collection, and returns the target collection.

os_array &operator |=(const void *e);

Inserts the element e into the target collection, and returns the target collection.

Note: Assignment operator semantics are described in terms of insert operations into the target array. Note, however that the actual implementation might be different, while still maintaining the associated semantics.

os_array::operator |()

os_collection &operator |(const os_collection &s) const;

Copies the contents of this into a new collection, c, and then performs c |= s. The new collection, c, is then returned. If either operand allows nulls, the result does. The result allows duplicates and does not maintain cursors or signal duplicates.

os_collection &operator |(const void *e) const;

Copies the contents of this into a new collection, c, and then performs c |= s. The new collection, c, is then returned. If this allows nulls, the result does. The result allows duplicates and does not maintain cursors or signal duplicates.

os_array::operator &=()

os_array &operator &=(const os_collection &s);

os_array &operator &=(const void *e);

If e is present in the target, converts the target into a collection containing just the element e. Otherwise, it clears the target collection. It returns the target collection.

os_array::operator &()

os_array &operator &(const os_collection &s) const;

Copies the contents of this into a new array, a, and then performs a &= s. The new array, a, is then returned. If either operand allows nulls, the result does. The result allows duplicates and does not maintain cursors or signal duplicates.

os_array &operator &(const void *e) const;

Creates a new array and copies the element e into it if this-> e returns true. Behavior bits match those of the original array. That is, if this allows nulls, the result does. The result allows duplicates and does not maintain cursors or signal duplicates.

os_array::operator -=()

os_array &operator -=(const os_collection &s);

For each element in the collection s, removes s.count(e) occurrences of the element from the target collection. If the collection is ordered, it is the first s.count(e) elements that are removed. It returns the target collection.

os_array &operator -=(const void *e);

Removes the element e from the target collection. If the collection is ordered, it is the first occurrence of the element that is removed from the target collection. It returns the target collection.

os_array::operator -()

os_array &operator -(const os_collection &s) const;

Copies the contents of this into a new collection, c, and then performs c -= s. The new collection, c, is then returned. If either operand allows nulls, the result does. The result allows duplicates and does not maintain cursors or signal duplicates.

os_array &operator -(const void *e) const;

Copies the contents of this into a new array and then removes e from the array and returns the new array. If this allows nulls, the result does. The result allows duplicates and does not maintain cursors or signal duplicates.

os_array::os_array()

os_array();

Returns an empty array.

os_array(os_collection_size);

os_array(const os_array&);

Returns an array that results from assigning the specified array to an empty array.

os_array(const os_collection&);

Returns an array that results from assigning the specified collection to an empty array.

os_array(os_unsigned_int32 card, void *fill_value);

Returns an array with cardinality card, all of whose elements are fill_value.

os_array::set_cardinality()

void set_cardinality(os_unsigned_int32 new_card, void *fill_value);

Augments the array to have the specified cardinality, using the specified fill_value to occupy the array's new slots.

os_backptr

If there is a possibility that a data member of an object could be modified and this data member is used in an index, then index maintenance must occur before and after the update. This is possible only if the object has an os_backptr data member and appropriate index maintenance occurs. The os_backptr is an object that allows the object to point back to all indexes it participates in.

The os_backptr declaration must appear before the declaration of the data members intended to be indexable. Note that you must define at most one data member of type os_backptr. With one such member, all members (data and function) of the class declared after it are established as indexable.

When an element is inserted or removed from a collection that has an index on it, implicit index maintenance occurs, whether the element has an os_backptr or not. Another possibility for update of data members that participate in an index is that you remove the element from the collection, update the data member, then insert it back into the collection. This then performs the appropriate index maintenance. Using this scenario avoids the requirement of having an os_backptr in your object. Because an os_backptr data member takes up twelve bytes and points back to the indexes, using an os_backptr data member might not be desirable in some cases, such as when using reference-based indexes.

ObjectStore supports inheritance of the os_backptr data member provided that the member is inherited from a base class along the leftmost side of the type inheritance lattice and provided that the leftmost base class is not a virtual base class (directly or through inheritance). In all other cases, the user must define a data member of type os_backptr directly in the class defining the members desired to be indexable.

The os_backptr member is used internally by ObjectStore for index maintenance associated with indexable members defined using the os_indexable_member() macro or with data members for which you are doing manual index maintenance (break_link() or make_link()). An example of where manual index maintenance is required is if the data member is a pointer and what gets updated is what is pointed to rather than the pointer value. The member functions described below can also be used explicitly by the user for index maintenance associated with indexable members defined without the os_indexable_member() macro.

The break_link() function should be invoked to break the index association before a modification to an indexable data member. This removes an entry from the index. In addition, after an indexable member has been given a new value, make_link() should be invoked to bring the index up to date. This inserts a new entry into the index, indexing the object by its new member value. You can ensure that this happens by encapsulating these calls in a member function for setting the value of the indexable member. The function should call break_link(), assign the new value to the member, and then call make_link(). There are also special considerations for index maintenance when member functions are incurred.

member functions that will be used in query strings or index paths

For examples, see User-Controlled Index Maintenance with an os_backptr in the ObjectStore Advanced C++ API User Guide.

Type definitions

The types os_int32 and os_boolean, used throughout this manual, are each defined as a signed 32-bit integer type. The type os_unsigned_int32 is defined as an unsigned 32-bit integer type.

os_backptr::break_link()

void break_link(void *, void*, os_int32 = 0) const;

Removes an entry from the index associated with the indexable data member pointed to by the void* arguments. For a class, C, with os_backptr member C::b and indexable member m, the void* arguments should both be

&m

The os_int32 argument should be

      os_index(C,b) - os_index(C,m)

The this pointer points to the os_backptr for the object indexed by the removed entry. The removed entry indexes the object by the value of the specified member, m.

void break_link(
      void* ptr_to_obj,
      void* ptr_to_obj,
      const char* class_name,
      const char* function_name
) const;

Use this function to maintain indexes keyed by paths containing member function calls.

ptr_to_obj is the object whose state changed, requiring an update to one or more indexes. When you call these functions, supply the same value for the first and second arguments.

class_name is the name of the class that defines the member function called in the path of the indexes to be updated.

function_name is the name of the member function itself.

Call this function before you perform an update that affects the return value of any member function appearing in an index. You must make a pair of calls (one to break_link() and one to make_link()) for each such member function affected by each data member change. If there are multiple functions affected by change, then you must call it for each function that participates in an index.

Call break_link() just before making the change (this removes an entry from each relevant index), and call make_link() just after making the change (this inserts a new entry into each relevant index, indexing the object by the new value of the relevant path). You can ensure that this happens by encapsulating these calls in a member function for setting the value of the data member.

For indexes keyed by paths that go through the elements of a collection (for example, * ( (*get_children())[]->get_location() ) ), index maintenance is performed automatically when you change the membership of a collection.

os_backptr::make_link()

void make_link(void *, void*, os_int32 = 0) const;

Inserts an entry into the index associated with the indexable data member pointed to by the void* arguments. For a class, C, with os_backptr member C::b and indexable member m, the void* arguments should both be

&m

and the os_int32 argument should be

      os_index(C,b) - os_index(C,m)

The this pointer points to the os_backptr for the object being indexed. The inserted entry indexes this object by the value of the specified member, m.

void make_link(
      void* ptr_to_obj,
      void* ptr_to_obj,
      const char* class_name,
      const char* function_name
) const;

Use this function to maintain indexes keyed by paths containing member function calls.

ptr_to_obj is the object whose state changed, requiring an update to one or more indexes. When you call these functions, supply the same value for the first and second arguments.

class_name is the name of the class that defines the member function called in the path of the indexes to be updated.

function_name is the name of the member function itself.

os_Bag

template <class E>
class os_Bag : public os_Collection<E>

Characteristics

A bag (sometimes called a multiset) is an unordered collection. Unlike sets, values can occur in a bag more than once at a given time.

The count of a value in a given bag is the number of times it occurs in the bag. Repeated insertion of a value into a bag increases its count in the bag by one each time. The count of a value in a bag is 0 if and only if the value is not an element of the bag.

Values can be inserted into an os_Bag anywhere. That is, the user has no control over the ordering of the elements.

Create bags with the member create() or, for stack-based or embedded bags, with a constructor. Do not use new to create bags.

In summary, every bag has the following properties:

Its entries have no intrinsic order.
Duplicate elements are allowed.

Using the behavior argument, you can customize the behavior of new bags. See Customizing Collection Behavior in the ObjectStore Advanced C++ API User Guide for further information.

You can also presize a bag with a nondefault value when it is created. See os_Bag::create() and os_Bag::os_Bag().

Representation policy

The default representation policy for newly created bags is as follows:

A bag created as an embedded object has the representation of os_tiny_array (0 to 4 elements). An embedded bag becomes out of line and mutates to an os_chained_list when the fifth element is inserted.
A bag created with ::create with cardinality <= 20 is represented as an os_chained_list.
Once the bag grows past 20, os_dyn_bag is used, unless the array has maintain_cursors behavior, in which case os_packed_list is used.

Using the behavior argument, you can customize the representation of a new bag. For more information, see Customizing Collection Representation in the ObjectStore Advanced C++ API User Guide.

Parameterized classes

The class os_Bag is parameterized, with a parameter for constraining the type of values allowable as elements (for the nonparameterized version of this class, see os_bag). This means that when specifying os_Bag as a function's formal parameter, or as the type of a variable or data member, you must specify the parameter (the bag's element type). This is accomplished by appending to os_Bag the name of the element type enclosed in angle brackets, < >:

os_Bag< element-type-name>

The element type parameter, E, occurs in the signatures of some of the functions described below. The parameter is used by the compiler to detect type errors.

The element type of any instance of os_Bag must be a pointer type.

Below are two tables. The first table lists the member functions that can be performed on instances of os_Bag. The second table lists the enumerators inherited by os_Bag from os_collection. Many functions are also inherited by os_Bag from os_Collection or os_collection. The full explanation of each inherited function or enumerator appears in the entry for the class from which it is inherited. The full explanation of each function defined by os_Bag appears in this entry, after the tables. In each case, the Defined By column gives the class whose entry contains the full explanation.


Name	Arguments	Returns	Defined By
add_index	( const os_index_path&, os_int32, os_segment* = 0 ) ( const os_index_path&, os_int32, os_database* = 0 ) ( const os_index_path&, os_segment* = 0 ) ( const os_index_path&, os_database* = 0 )	void	os_collection
cardinality	( ) const	os_int32	os_collection
change_behavior	( os_unsigned_int32 behavior_enums, os_int32 = verify_enum )	void	os_collection
change_rep	( os_unsigned_int32 expected_size, const os_coll_rep_descriptor *policy = 0, os_int32 retain_enum = dont_associate_policy )	void	os_collection
clear	( )	void	os_collection
contains	( const E ) const	os_int32	os_Collection
count	( const E ) const	os_int32	os_Collection
create (static)	( os_database db, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor rep_policy = 0, os_int32 retain_enum = dont_associate_policy )	os_Bag<E>&	os_Bag
	( os_segment seg, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor rep_policy = 0, os_int32 retain_enum = dont_associate_policy )	os_Bag<E>&
	( os_object_cluster clust, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor rep_policy = 0, os_int32 retain_enum = dont_associate_policy )	os_Bag<E>&
	( void proximity, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor rep_policy = 0, os_int32 retain_enum = dont_associate_policy )	os_Bag<E>&
default_behavior (static)	( )	os_unsigned_int32	os_Bag
destroy (static)	( os_Bag<E>& )	void	os_Bag
drop_index	( const os_index_path& )	void	os_collection
empty	( )	os_int32	os_collection
exists	( char element_type_name, char query_string, os_database schema_database = 0, char file, os_unsigned_int32 line ) const ( const os_bound_query& ) const	os_int32 os_int32	os_collection
get_behavior	( ) const	os_unsigned_int32	os_collection
get_rep	( ) const	os_coll_rep_ descriptor&	os_collection
has_index	( const os_index_path&, os_int32 index_options ) const	os_int32	os_collection
insert	( const E)	void	os_Collection
multi_trans_add_ index	static void multi_trans_add_index( os_reference c, const os_index_path & p, os_int32 index_options, os_segment * index_seg, os_segment * scratch_seg, os_unsigned_int32 num_per_trans )		os_collection
multi_trans_drop_ index	static void multi_trans_drop_index( os_reference c, const os_index_path & p, os_segment * scratch_seg, os_unsigned_int32 num_per_trans )	void	os_Collection
only	( ) const	E	os_Collection
operator os_Array<E>&	( )		os_Collection
operator const os_Array<E>&	( ) const		os_Collection
operator os_array&	( )		os_collection
operator const os_array&	( ) const		os_collection
operator os_bag&	( )		os_collection
operator const os_bag&	( ) const		os_collection
operator os_List<E>&	( )		os_Collection
operator const os_List<E>&	( ) const		os_Collection
operator os_list&	( )		os_collection
operator const os_list&	( ) const		os_collection
operator os_Set<E>&	( )		os_Collection
operator const os_Set<E>&	( ) const		os_Collection
operator os_set&	( )		os_collection
operator const os_set&	( ) const		os_collection
operator ==	( const os_Collection<E>& ) const ( const E ) const	os_int32 os_int32	os_Collection
operator !=	( const os_Collection<E>& ) const ( const E ) const	os_int32 os_int32	os_Collection
operator <	( const os_Collection<E>& ) const ( const E ) const	os_int32 os_int32	os_Collection
operator <=	( const os_Collection<E>& ) const ( const E ) const	os_int32 os_int32	os_Collection
operator >	( const os_Collection<E>& ) const ( const E ) const	os_int32 os_int32	os_Collection
operator >=	( const os_Collection<E>& ) const ( const E ) const	os_int32 os_int32	os_Collection
operator =	( const os_Bag<E>& ) const ( const os_Collection<E>& ) const ( const E ) const	os_Bag<E>& os_Bag<E>& os_Bag<E>&	os_Bag
operator \|=	( const os_Collection<E>& ) const ( const E ) const	os_Bag<E>& os_Bag<E>&	os_Bag
operator \|	( const os_Collection<E>& ) const ( const E ) const	os_Collection<E>& os_Collection<E>&	os_Collection
operator &=	( const os_Collection<E>& ) const ( const E ) const	os_Bag<E>& os_Bag<E>&	os_Bag
operator &	( const os_Collection<E>& ) const ( const E ) const	os_Collection<E>& os_Collection<E>&	os_Collection
operator -=	( const os_Collection<E>& ) const ( const E ) const	os_Bag<E>& os_Bag<E>&	os_Bag
operator -	( const os_Collection<E>& ) const ( const E ) const	os_Collection<E>& os_Collection<E>&	os_Collection
os_Bag	( ) ( os_collection_size expected_size ) ( const os_Bag<E>& ) ( const os_Collection<E>& )		os_Bag
pick	( ) const ( const os_index_path&, const os_coll_range& ) const	E E	os_Collection
query	( char element_type_name, char query_string, os_database schema_database = 0, char filename, os_unsigned_int32 ) const ( const os_bound_query& ) const	os_Collection<E>& os_Collection<E>&	os_Collection
query_pick	( char element_type_name, char query_string, os_database *schema_database = 0 ) const ( const os_bound_query& ) const	E E	os_Collection
remove	( const E )	os_int32	os_Collection
remove_at	( const os_Cursor<E>& )	void	os_Collection
replace_at	( const E, const os_Cursor<E>& )	E	os_Collection
retrieve	( const os_Cursor<E>& ) const	E	os_Collection

os_Bag enumerators

The following table lists the enumerators inherited by os_Bag from os_collection.


Enumerator	Inherited From
allow_duplicates	os_collection
allow_nulls	os_collection
associate_policy	os_collection
dont_associate_policy	os_collection
dont_verify	os_collection
EQ	os_collection
GT	os_collection
LT	os_collection
maintain_cursors	os_collection
maintain_order	os_collection
pick_from_empty_returns_null	os_collection
signal_cardinality	os_collection
signal_duplicates	os_collection
unordered	os_collection
verify	os_collection

os_Bag::create()

static os_Bag<E> &create(
      os_database *db,
      os_unsigned_int32 behavior_enums = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain_enum = dont_associate_policy
);

Creates a new bag in the database pointed to by db. If the transient database is specified, the bag is allocated in transient memory.

A new bag has the following default properties:

Its entries have no intrinsic order.
Duplicate elements are allowed os_collection::allow duplicates (required)
Performing pick() on an empty result of querying the bag raises err_coll_empty.
Null pointers cannot be inserted.
No guarantees are made concerning whether an element inserted or removed during a traversal of its elements will be visited later in that same traversal.

Using the behavior argument, you can customize the behavior of new bags with regard to the last three properties. See Customizing Collection Behavior in the ObjectStore Advanced C++ API User Guide.

An os_Bag can have the following additional behaviors:

os_collection::pick_from_empty_returns_null
os_collection::allow_nulls

You can also customize the representation of a new collection (see Customizing Collection Representation in the ObjectStore Advanced C++ API User Guide).

The default representation policy for bags created with create() is
as follows:

A bag created as an embedded object has a representation of os_tiny_array (0 to 4 elements). An embedded bag becomes out of line when the fifth element is inserted and the representation mutates to os_chained _list.
Nonembedded bags have a representation of os_chained_list if
the expected size is less than 20.
Once the bag grows past 20, os_dyn_bag is used, unless the bag has maintain_cursors behavior, in which case os_packed_list is used. (See the description in Chapter 4, Advanced Collections, of ObjectStore Advanced C++ API User Guide.)

If you want a new collection presized for a different cardinality, supply the expected_size argument explicitly.

So, for example, if expected_size is 21, os_dyn_bag is used for the collection's entire lifetime (unless you use change_rep()).

static os_Bag<E> &create(
      os_segment * seg,
      os_unsigned_int32 behavior_enums = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain_enum = dont_associate_policy
);

Creates a new bag in the segment pointed to by seg. If the transient segment is specified, the bag is allocated in transient memory. The rest of the arguments are just as described above.

static os_Bag<E> &create(
      os_object_cluster *clust,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new bag in the object cluster pointed to by clust. The rest of the arguments are just as described above.

static os_Bag<E> &create(
      void * proximity,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new bag in the segment occupied by the object pointed to by proximity. If the object is part of an object cluster, the new bag is allocated in that cluster. If the specified object is transient, the bag is allocated in transient memory. The rest of the arguments are just as described above.

os_Bag::default_behavior()

static os_unsigned_int32 default_behavior();

Returns a bit pattern indicating this type's default behavior, which is os_collection::allow_duplicates.

os_Bag::destroy()

static void destroy(os_Bag<E>&);

Deletes the specified collection and deallocates associated storage. This is the same as calling delete on the os_Bag.

Assignment Operator Semantics

Note: The assignment operator semantics are described below in terms of insert operations into the target collection. Describing the semantics in terms of insert operations serves to illustrate how duplicate, null, and order semantics are enforced. The actual implementation of the assignment might be quite different, while still maintaining the associated semantics.

os_Bag::operator =()

os_Bag<E> &operator =(const os_Collection<E> &s);
os_Bag<> &operator=(const os_Bag<E> &s);

Copies the contents of the collection s into the target collection and returns the target collection. The copy is performed by effectively clearing the target, iterating over the source collection, and inserting each element into the target collection. The target collection semantics are enforced as usual during the insertion process.

os_Bag<E> &operator =(const E e);

Clears the target collection, inserts the element e into the target collection, and returns the target collection.

os_Bag::operator |=()

os_Bag<E> &operator |=(const os_Collection<E> &s);

Inserts the elements contained in s into the target collection, and returns the target collection.

os_Bag<E> &operator |=(const E e);

Inserts the element e into the target collection, and returns the target collection.

Note: Assignment operator semantics are described in terms of insert operations into the target bag. Note, however that the actual implementation might be different, while still maintaining the associated semantics.

os_Bag::operator &=()

os_Bag<E> &operator &=(const os_Collection<E> &s);

For each element in the target collection, reduces the count of the element in the target to the minimum of the counts in the source and target collections. It returns the target collection.

os_Bag<E> &operator &=(const E e);

If e is present in the target, converts the target into a collection containing just the element e. Otherwise, it clears the target collection. It returns the target collection.

os_Bag::operator -=()

os_Bag<E> &operator -=(const os_Collection<E> &s);

For each element in the collection s, removes s.count(e) occurrences of the element from the target collection. It returns the target collection.

os_Bag<E> &operator -=(const E e);

Removes the element e from the target collection. It returns the target collection.

os_Bag::os_Bag()

os_Bag();

Returns an empty bag.

os_Bag(os_collection_size);

The user should pass an os_int32 as the os_collection_size argument. Returns an empty bag whose initial implementation is based on the expectation that the specified os_int32 indicates the approximate usual size of the bag, once it has been loaded with elements.

os_Bag(const os_Bag<E>&);

Returns a bag that results from assigning the specified bag to an empty bag.

os_Bag(const os_Collection<E>&);

Returns a bag that results from assigning the specified collection to an empty bag.

os_bag

class os_bag : public os_collection

A bag (sometimes called a multiset) is an unordered collection. Unlike sets, values can occur in a bag more than once at a given time. The count of a value in a given bag is the number of times it occurs in the bag. Repeated insertion of a value into a bag increases its count in the bag by one each time. The count of a value in a bag is 0 if and only if the value is not an element of the bag.

The class os_bag is nonparameterized. For the parameterized version of this class, see os_Bag.

Below are two tables. The first table lists the member functions that can be performed on instances of os_bag. The second table lists the enumerators inherited by os_bag from os_collection. Many functions are also inherited by os_bag from os_collection. The full explanation of each inherited function or enumerator appears in the entry for the class from which it is inherited. The full explanation of each function defined by os_bag appears in this entry, after the tables. In each case, the Defined By column gives the class whose entry contains the full explanation.


Name	Arguments	Returns	Defined By
add_index	( const os_index_path&, os_int32, os_segment* = 0 ) ( const os_index_path&, os_int32, os_database* = 0 ) ( const os_index_path&, os_segment* = 0 ) ( const os_index_path&, os_database* = 0 )	void void void void	os_collection
cardinality	( ) const	os_int32	os_collection
change_behavior	( os_unsigned_int32 behavior_enums, os_int32 = verify_enum )	void	os_collection
change_rep	( os_unsigned_int32 expected_size, const os_coll_rep_descriptor *policy = 0, os_int32 retain_enum = dont_associate_policy )	void	os_collection
clear	( )	void	os_collection
contains	( const void* ) const	os_int32	os_collection
count	( const void* ) const	os_int32	os_collection
create (static)	( os_database db, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor rep_policy = 0, os_int32 retain_enum = dont_associate_policy )	os_bag&	os_bag
	( os_segment seg, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor rep_policy = 0, os_int32 retain_enum = dont_associate_policy )	os_bag&
	( os_object_cluster clust, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor rep_policy = 0, os_int32 retain_enum = dont_associate_policy )	os_bag&
	( void proximity, os_unsigned_int32 behavior_enums = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor rep_policy = 0, os_int32 retain_enum = dont_associate_policy )	os_bag&
default_behavior (static)	( )	os_unsigned_int32	os_bag
destroy (static)	( os_bag& )	void	os_bag
drop_index	( const os_index_path& )	void	os_collection
empty	( )	os_int32	os_collection
exists	( char element_type_name, char query_string, os_database schema_database = 0, char file, os_unsigned_int32 line ) const ( const os_bound_query& ) const	os_int32 os_int32	os_collection
get_behavior	( ) const	os_unsigned_int32	os_collection
get_rep	( ) const	os_coll_rep_ descriptor&	os_collection
has_index	( const os_index_path&, os_int32 index_options ) const	os_int32	os_collection
insert	( const void* )	void	os_collection
multi_trans_add_ index	static void multi_trans_add_index( os_reference c, const os_index_path & p, os_int32 index_options, os_segment * index_seg, os_segment * scratch_seg, os_unsigned_int32 num_per_trans )		os_collection
multi_trans_drop_ index	static void multi_trans_drop_index( os_reference c, const os_index_path & p, os_segment * scratch_seg, os_unsigned_int32 num_per_trans )	void	os_Collection
only	( ) const	void*	os_Collection
operator os_array&	( )		os_collection
operator const os_array&	( ) const		os_collection
operator os_list&	( )		os_collection
operator const os_list&	( ) const		os_collection
operator os_set&	( )		os_collection
operator const os_set&	( ) const		os_collection
operator ==	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator !=	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator <	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator <=	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator >	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator >=	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator =	( const os_bag& ) const ( const os_collection& ) const ( const void* ) const	os_bag& os_bag& os_bag	os_bag
operator \|=	( const os_collection& ) const ( const void* ) const	os_bag& os_bag&	os_bag
operator \|	( const os_collection& ) const ( const void* ) const	os_bag& os_bag&	os_bag
operator &=	( const os_collection& ) const ( const void* ) const	os_bag& os_bag&	os_bag
operator &	( const os_collection& ) const ( const void* ) const	os_bag& os_bag&	os_bag
operator -=	( const os_collection& ) const ( const void* ) const	os_bag& os_bag&	os_bag
operator -	( const os_collection& ) const ( const void* ) const	os_bag& os_bag&	os_bag
os_bag	( ) ( os_collection_size expected_size ) ( const os_bag& ) ( const os_collection& )		os_bag
pick	( ) const ( const os_index_path&, const os_coll_range& ) const	void* void*	os_collection
query	( char element_type_name, char query_string, os_database schema_database = 0, char filename, os_unsigned_int32 ) const ( const os_bound_query& ) const	os_collection& os_collection&	os_collection
query_pick	( char element_type_name, char query_string, os_database *schema_database = 0 ) const ( const os_bound_query& ) const	void* void*	os_collection
remove	( const void* )	os_int32	os_collection
remove_at	( const os_cursor& )	void	os_collection
replace_at	( const void*, const os_cursor& )	void*	os_collection
retrieve	( const os_cursor& ) const	void*	os_collection

os_bag enumerators

The following table lists the enumerators inherited by os_Bag from os_collection.


Name	Inherited From
allow_duplicates	os_collection
allow_nulls	os_collection
associate_policy	os_collection
dont_associate_policy	os_collection
dont_verify	os_collection
EQ	os_collection
GT	os_collection
LT	os_collection
maintain_cursors	os_collection
maintain_order	os_collection
pick_from_empty_returns_null	os_collection
signal_cardinality	os_collection
signal_duplicates	os_collection
unordered	os_collection
verify	os_collection

os_bag::create()

static os_bag &create(
      os_database *db,
      os_unsigned_int32 behavior       = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new bag in the database pointed to by db. If the transient database is specified, the bag is allocated in transient memory.

Every bag has the following properties:

Its entries have no intrinsic order.
Duplicate elements are allowed.

By default a new bag also has the following properties:

Performing pick() on an empty result of querying the bag raises err_coll_empty.
Null pointers cannot be inserted.
No guarantees are made concerning whether an element inserted or removed during a traversal of its elements will be visited later in that same traversal.

Using the behavior argument, you can customize the behavior of new bags with regard to these last three properties. See Customizing Collection Behavior in the ObjectStore Advanced C++ API User Guide.

By default, bags are presized with a representation suitable for cardinality 20 or less. If you want a new collection presized for a different cardinality, supply the expected_size argument explicitly.

If you want to customize the representation of a new collection, see Customizing Collection Representation in the ObjectStore Advanced C++ API User Guide.

The default representation policy for bags is as follows:

As the collection grows from 0 to 15, the representation is os_chained_list.
Once the collection grows past 15, os_dyn_bag is used, unless the collection has maintain_cursors behavior, in which case os_packed_list is used.

Note that expected_size determines the initial representation. So, for example, if expected_size is 21, os_dyn_bag is used for the collection's entire lifetime (unless you use change_rep()).

static os_bag &create(
      os_segment * seg,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new bag in the segment pointed to by seg. If the transient segment is specified, the bag is allocated in transient memory. The rest of the arguments are just as described above.

static os_bag &create(
      os_object_cluster *clust,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new bag in the object cluster pointed to by clust. The rest of the arguments are just as described above.

static os_bag &create(
      void * proximity,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new bag in the segment occupied by the object pointed to by proximity. If the object is part of an object cluster, the new collection is allocated in that cluster. If the specified object is transient, the bag is allocated in transient memory. The rest of the arguments are just as described above.

os_bag::default_behavior()

static os_unsigned_int32 default_behavior();

Returns a bit pattern indicating this type's default behavior.

os_bag::destroy()

static void destroy(os_bag&);

Deletes the specified collection and deallocates associated storage.

os_bag::operator =()

os_bag &operator =  (const os_collection &s);

Copies the contents of the collection s into the target collection and returns the target collection. The copy is performed by effectively clearing the target, iterating over the source collection, and inserting each element into the target collection. The target collection semantics are enforced as usual during the insertion process.

os_bag &operator =(const void *e);

Clears the target collection, inserts the element e into the target collection, and returns the target collection.

os_bag::operator |=()

os_bag &operator |=(const os_bag &s);

Inserts the elements contained in s into the target collection and returns the target collection.

os_bag &operator |=(const void *e);

Inserts the element e into the target collection and returns the target collection.

os_bag::operator |()

os_bag &operator |(const os_collection &s) const;

os_bag &operator |(const void *e) const;

Copies the contents of this into a new collection, c, and then performs c |= e. The new collection, c, is then returned. If this allows nulls, the result does. The result allows duplicates and does not maintain order, maintain cursors, or signal duplicates.

os_bag::operator &=()

os_bag &operator &=(const os_collection &s);

For each element in the target collection, reduces the count of the element in the target to the minimum of the counts in the source and target collections. It returns the target collection.

os_bag &operator &=(const void *e);

If e is present in the target, converts the target into a collection containing just the element e. Otherwise, it clears the target collection. It returns the target collection.

os_bag::operator &()

os_bag &operator &(const os_collection &s) const;

Copies the contents of this into a new collection, c, and then performs c &= s. The new collection, c, is then returned. If either operand allows nulls, the result does. The result allows duplicates and does not maintain order, maintain cursors, or signal duplicates.

os_bag &operator &(const void *e) const;

Copies the contents of this into a new collection, c, and then performs c &= e. The new collection, c, is then returned. If this allows nulls, the result does. The result allows duplicates and does not maintain order, maintain cursors, or signal duplicates.

os_bag::operator -=()

os_bag &operator -=(const os_collection &s);

For each element in the collection s, removes s.count(e) occurrences of the element from the target collection. It returns the target collection.

os_bag &operator -=(const void *e);

Removes the element e from the target collection. It returns the target collection.

os_bag::operator -()

os_collection &operator -(const os_collection &s) const;

os_collection &operator -(const void *e) const;

Copies the contents of this into a new collection, c, and then performs c -= e. The new collection, c, is then returned. If this allows nulls, the result does. The result allows duplicates and does not maintain order, maintain cursors, or signal duplicates.

os_bag::os_bag()

os_bag();

Returns an empty bag.

os_bag(os_collection_size);

The user should pass an os_int32 as the os_collection_size argument. Returns an empty bag whose initial implementation is based on the expectation that the specified os_int32 indicates the approximate usual cardinality of the bag, once it has been loaded with elements.

os_bag(const os_bag&);

Returns a bag that results from assigning the specified bag to an empty bag.

os_bag(const os_collection&);

Returns a bag that results from assigning the specified collection to an empty bag.

os_bound_query

Instances of this class are query objects built from instances of os_coll_query and os_keyword_arg_list. Bound queries must be transiently allocated; they should not be allocated in persistent memory.

os_bound_query::os_bound_query()

os_bound_query(
      const os_coll_query&,
      const os_keyword_arg_list&
);

Creates a bound query, binding the free references in the os_coll_query according to the os_keyword_arg_list.

os_bound_query(
      const os_coll_query&
);

Creates a bound query from an os_coll_query with no free references.

os_Collection

template <class E>
class os_Collection : public os_collection

A collection is an object that serves to group together other objects. The objects so grouped are the collection's elements. For some collections, a value can occur as an element more than once. The count of a value in a given collection is the number of times (possibly 0) it occurs in the collection.

The class os_Collection is parameterized, with a parameter for constraining the type of values allowable as elements (for the nonparameterized version of this class, see os_collection). This means that when specifying os_Collection as a function's formal parameter, or as the type of a variable or data member, you must specify the parameter (the collection's element type). This is accomplished by appending to os_Collection the name of the element type enclosed in angle brackets, < >:

      os_Collection<element-type-name>

The element type parameter, E, occurs in the signatures of some of the functions described below. The parameter is used by the compiler to detect type errors.

The element type of any instance of os_Collection must be a pointer type.

Create collections with the member create() or, for stack-based or embedded collections, with a constructor. Do not use new to create collections.

os_Collection enumerators

The following table lists the enumerators for os_Collection.


Name	Inherited From
allow_duplicates	os_collection
allow_nulls	os_collection
associate_policy	os_collection
dont_associate_policy	os_collection
dont_verify	os_collection
EQ	os_collection
GT	os_collection
LT	os_collection
maintain_cursors	os_collection
maintain_order	os_collection
pick_from_empty_returns_null	os_collection
signal_cardinality	os_collection
signal_duplicates	os_collection
unordered	os_collection
verify	os_collection

os_Collection::contains()

os_int32 contains(E) const;

Returns a nonzero os_int32 if the specified E is an element of the specified collection, and 0 otherwise.

os_Collection::count()

os_int32 count(E);

Returns the number of occurrences (possibly 0) of the specified E in the collection for which the function was called.

os_Collection::create()

static os_Collection<E> &create(
      os_database *db,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new collection in the database pointed to by db. If the transient database is specified, the collection is allocated in transient memory.

Every instance of os_Collection has the following properties:

Its entries have no intrinsic order.
Duplicate elements are not allowed.

By default a new os_Collection object also has the following properties:

Performing pick() on an empty result of querying the collection raises err_coll_empty.
Null pointers cannot be inserted.
No guarantees are made concerning whether an element inserted or removed during a traversal of its elements will be visited later in that same traversal.

Using the behavior argument, you can customize the behavior of new os_Collections with regard to these last three properties. See Customizing Collection Behavior in the ObjectStore Advanced C++ API User Guide.

Collections are the most flexible container class. The behaviors that they can have are

allow_duplicates
maintain_order
signal_duplicates
allow_nulls
pick_from_empty_returns_null
maintain_cursors

By default, instances of os_Collection are presized with a representation suitable for cardinality 20 or less. If you want a new collection presized for a different cardinality, supply the expected_size argument explicitly.

If you want to customize the representation of a new collection, see Customizing Collection Representation in the ObjectStore Advanced C++ API User Guide.

The default representation policy for os_Collections is as follows:

A collection created as an embedded object has the representation of os_tiny_array (0 to 4 elements).
An embedded collection becomes out of line and mutates to an os_chained_list when the fifth element is inserted.
A collection created with ::create with cardinality <= 20 is represented as an os_chained_list.
Once the collection grows past 20, os_dyn_hash is used for the collection's entire lifetime (unless you use change_rep).

Note that expected_size determines the initial representation. So, for example, if expected_size is 21, os_dyn_hash is used for the collection's entire lifetime (unless you use change_rep().

static os_Collection<E> &create(
      os_segment * seg,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new collection in the segment pointed to by seg. If the transient segment is specified, the collection is allocated in transient memory. The rest of the arguments are just as described above.

static os_Collection<E> &create(
      os_object_cluster *clust,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new collection in the object cluster pointed to by clust. The rest of the arguments are just as described above.

static os_Collection<E> &create(
      void * proximity,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new collection in the segment occupied by the object pointed to by proximity. If the object is part of an object cluster, the new collection is allocated in that cluster. If the specified object is transient, the collection is allocated in transient memory. The rest of the arguments are just as described above.

os_Collection::default_behavior()

os_unsigned_int32 default_behavior();

Returns a bit pattern indicating this type's default behavior. In this case, the bit pattern is 0.

os_Collection::destroy()

static void destroy(os_Collection<E>&);

Deletes the specified collection and deallocates associated storage. This is the same as calling delete() on an os_Collection.

os_Collection::drop_index()

void drop_index(const os_index_path &p);

Destroys the index into the specified collection whose key is specified by p. The argument p does not need to be the same instance of os_index_path supplied when the index was added, but it must specify the same key. Two os_index_paths created with the same path string and type string specify the same index key.

Collections with large cardinality might warrant removing the index with multiple transactions. See os_collection::multi_trans_drop_index().

An err_no_such_index exception is signaled if an index with the specified key does not exist for the collection.

os_Collection::exists()

exists(query_string);

os_Collection::insert()

void insert(const E);

Adds the specified instance of E to the collection for which the function was called. The behavior of insert() depends on the characteristics of the collection you are using:

If the collection is ordered, the element is inserted at the end of the collection.
If the collection disallows duplicates (has behavior signal_duplicates), and the specified E is already present in the collection, err_coll_duplicates is signaled. Otherwise the insertion is ignored.
If the collection disallows nulls, and the specified E is 0, err_coll_nulls is signaled.

os_Collection::insert_after()

void insert_after(const E, const os_Cursor<E>&);

Adds the specified instance of E to the collection for which the function was called. The new element is inserted immediately after the element at which the specified cursor is positioned. The index of all elements after the new element increases by 1. The cursor must be a default cursor (that is, one that results from a constructor call with only a single argument). If the cursor is null, err_null_cursor is signaled. If the cursor is invalid, err_coll_illegal_cursor is signaled.

The behavior of insert_after() depends on the characteristics of the collection you are using:

If the collection is not ordered, err_coll_not_supported is signaled.
If the collection disallows duplicates (has behavior signal_duplicates), and the specified E is already present in the collection, err_coll_duplicates is signaled. Otherwise the insertion is ignored.
If the collection disallows nulls, and the specified E is 0, err_coll_nulls is signaled.

If the collection has behavior maintain_cursors and the cursor has behavior update_safe, the next element in the forward iteration will be E.

void insert_after(const E, os_unsigned_int32);

Adds the specified instance of E to the collection for which the function was called. The new element is inserted after the position indicated by the os_unsigned_int32. The index of all elements after the new element increases by 1. If the index is not less than the collection's cardinality, err_coll_out_of_range is signaled.

The behavior of insert_after() depends on the characteristics of the collection you are using:

If the collection is not ordered, err_coll_not_supported is signaled.
If the collection disallows duplicates (has the behavior signal_duplicates), and the specified E is already present in the collection, err_coll_duplicates is signaled.
If the collection disallows nulls, and the specified E is 0, err_coll_nulls is signaled.
If the collection has behavior maintain_cursors and the cursor has behavior update_safe, the next element in the forward iteration will be E.

os_Collection::insert_before()

void insert_before(const E, const os_Cursor<E>&);

Adds the specified instance of E to the collection for which the function was called. The new element is inserted immediately before the element at which the specified cursor is positioned. The index of all elements after the new element increases by 1. The cursor must be a default cursor (that is, one that results from a constructor call with only a single argument). If the cursor is null, err_null_cursor is signaled. If the cursor is invalid, err_coll_illegal_cursor is signaled.

The behavior of insert_before() depends on the characteristics of the collection you are using:

If the collection is not ordered, err_coll_not_supported is signaled.
If the collection disallows duplicates (has the behavior signal_duplicates), and the specified E is already present in the collection, err_coll_duplicates is signaled.
If the collection disallows nulls, and the specified E is 0, err_coll_nulls is signaled.
If the collection has behavior maintain_cursors, and the cursor has behavior update_safe, the previous element in the backwards iteration will be E.
If the collection is an array, all elements after this element will be pushed down.

void insert_before(const E, os_unsigned_int32);

Adds the specified instance of E to the collection for which the function was called. The new element is inserted immediately before the position indicated by the os_unsigned_int32. The index of all elements after the new element increases by 1. If the index is not less than the collection's cardinality, err_coll_out_of_range is signaled.

The behavior of insert_before() depends on the characteristics of the collection you are using:

If the collection is not ordered, err_coll_not_supported is signaled.
If the collection disallows duplicates (has the behavior signal_duplicates), and the specified E is already present in the collection, err_coll_duplicates is signaled.
If the collection disallows nulls, and the specified E is 0, err_coll_nulls is signaled.
If the collection has behavior maintain_cursors, and the cursor has behavior update_safe, the previous element in the backwards iteration will be E.
If the collection is an array, all elements after this element will be pushed down.

os_Collection::insert_first()

void insert_first(const E);

Adds the specified instance of E to the beginning of the collection for which the function was called. The behavior of insert_first() depends on the characteristics of the collection you are using:

If the collection is not ordered, err_coll_not_supported is signaled.
If the collection disallows duplicates (has the behavior signal_duplicates), and the specified E is already present in the collection, err_coll_duplicates is signaled.
If the collection disallows nulls, and the specified E is 0, err_coll_nulls is signaled.
If the collection is an array, all elements after this element will be pushed down.

os_Collection::insert_last()

void insert_last(const E);

Adds the specified instance of E to the end of the collection for which the function was called.

If the collection is not ordered, err_coll_not_supported is signaled.
If the collection disallows duplicates (has the behavior signal_duplicates), and the specified E is already present in the collection, err_coll_duplicates is signaled.
If the collection disallows nulls, and the specified E is 0, err_coll_nulls is signaled.

os_Collection::only()

E only() const;

Returns the only element of the specified collection. If the collection has more than one element, err_coll_not_singleton is signaled. If the collection is empty, err_coll_empty is signaled, unless the collection's behavior includes os_collection::pick_from_empty_returns_null, in which case 0 is returned.

os_Collection::operator os_Array()

operator os_Array<E>&();

Returns an array with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of arrays.

os_Collection::operator const os_Array()

operator const os_Array<E>&() const;

Returns an array with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of arrays.

os_Collection::operator os_Bag()

operator os_Bag<E>&();

Returns a bag with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of bags.

os_Collection::operator const os_Bag()

operator const os_Bag<E>&() const;

Returns a bag with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of bags.

os_Collection::operator os_List()

operator os_List<E>&();

Returns a list with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of lists.

os_Collection::operator const os_List()

operator const os_List<E>&() const;

Returns a list with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of lists.

os_Collection::operator os_Set()

operator os_Set<E>&();

Returns a set with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of sets.

os_Collection::operator const os_Set()

operator const os_Set<E>&() const;

Returns a set with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of sets.

os_Collection::operator ==()

os_int32 operator ==(const os_Collection<E> &s) const;

Returns a nonzero value if and only if for each element in the this collection count(element) == s.count(element) and both collections have the same cardinality. Note that the comparison does not take order into account.

os_int32 operator ==(const E s) const;

Returns a nonzero value if and only if the collection contains s and nothing else.

os_Collection::operator !=()

os_int32 operator !=(const os_Collection<E> &s) const;

Returns a nonzero value if and only if it is not the case both that (1) for each element in the this collection count(element) == s.count(element), and (2) both collections have the same cardinality. Note that the comparison does not take order into account.

os_int32 operator !=(const E s) const;

Returns a nonzero value if and only if it is not the case that the collection contains s and nothing else.

os_Collection::operator <()

os_int32 operator <(const os_Collection<E> &s) const;

Returns a nonzero value if and only if for each element in the this collection count(element) <= s.count(element) and cardinality()
< s.cardinality().

os_int32 operator <(const E s) const;

Returns a nonzero value if and only if the specified collection is empty.

os_Collection::operator <=()

os_int32 operator <=(const os_Collection<E> &s) const;

Returns a nonzero value if and only if for each element in the this collection count(element) <= s.count(element).

os_int32 operator <=(const E s) const;

Returns a nonzero value if and only if the specified collection is empty or e is the only element in the collection.

os_Collection::operator >()

os_int32 operator >(const os_Collection<E> &s) const;

Returns a nonzero value if and only if for each element of s, count(element) >= s.count(element) and cardinality() > s.cardinality().

os_int32 operator >(const E s) const;

Returns a nonzero value if and only if count(s) >= 1 and cardinality() > 1.

os_Collection::operator >=()

os_int32 operator >=(const os_Collection<E> &s) const;

Returns a nonzero value if and only if for each element of s, count(element) >= s.count(element).

os_int32 operator >=(const E s) const;

Returns a nonzero value if and only if count(s) >= 1.

Assignment operator semantics

The assignment operator semantics are described below in terms of insert operations into the target collection. Describing the semantics in terms of insert operations serves to illustrate how duplicate, null, and order semantics are enforced. The actual implementation of the assignment might be quite different, while still maintaining the associated semantics.

os_Collection::operator =()

os_Collection<E> &operator =(const os_Collection<E> &s);

os_Collection<E> &operator =(const E e);

Clears the target collection, inserts the element e into the target collection, and returns the target collection.

os_Collection::operator |=()

os_Collection<E> &operator |=(const os_Collection<E> &s);

Inserts the elements contained in s into the target collection, and returns the target collection.

os_Collection<E> &operator |=(const E e);

Inserts the element e into the target collection, and returns the target collection.

os_Collection::operator |()

os_Collection<E> &operator |(const os_Collection<E> &s) const;

Copies the contents of this into a new collection, c, and then performs c |= s. The new collection, c, is then returned. If either operand allows duplicates or nulls, the result does. If both operands maintain order, the result does. The result does not maintain cursors or signal duplicates.

os_Collection<E> &operator |(const E e) const;

Copies the contents of this into a new collection, c, and then performs c |= e. The new collection, c, is then returned. If this allows duplicates, maintains order, or allows nulls, the result does. The result does not maintain cursors or signal duplicates.

os_Collection::operator &=()

os_Collection<E> &operator &=(const os_Collection<E> &s);

os_Collection<E> &operator &=(const E e);

If e is present in the target, converts the target into a collection containing just the element e. Otherwise, it clears the target collection. It returns the target collection.

os_Collection::operator &()

os_Collection<E> &operator &(const os_Collection<E> &s) const;

Copies the contents of this into a new collection, c, and then performs c &= s. The new collection, c, is then returned. If either operand allows duplicates or nulls, the result does. If both operands maintain order, the result does. The result does not maintain cursors or signal duplicates.

os_Collection<E> &operator &(E e) const;

Copies the contents of this into a new collection, c, and then performs c &= e. The new collection, c, is then returned. If this allows duplicates, maintains order, or allows nulls, the result does. The result does not maintain cursors or signal duplicates.

os_Collection::operator -=()

os_Collection<E> &operator -=(const os_Collection<E> &s);

os_Collection<E> &operator -=(E e);

Removes the element e from the target collection. If the collection is ordered, it is the first occurrence of the element that is removed from the target collection. It returns the target collection.

os_Collection::operator -()

os_Collection<E> &operator -(const os_Collection<E> &s) const;

Copies the contents of this into a new collection, c, and then performs c -= s. The new collection, c, is then returned. If either operand allows duplicates or nulls, the result does. If both operands maintain order, the result does. The result does not maintain cursors or signal duplicates.

os_Collection<E> &operator -(E e) const;

Copies the contents of this into a new collection, c, and then performs c -= s. The new collection, c, is then returned. If this allows duplicates, maintains order, or allows nulls, the result does. The result does not maintain cursors or signal duplicates.

os_Collection::pick()

E pick() const;

Returns an arbitrary element of the specified collection. If the collection is empty, err_coll_empty is signaled, unless the collection's behavior includes os_collection::pick_from_empty_returns_null, in which case 0 is returned.

os_Collection::query()

os_Collection<E> &query(
      char *element_type_name,
      char *query_string,
      os_database *schema_database = 0,
      char *file_name = 0,
      os_unsigned_int32 line = 0,
      os_boolean dups = query_dont_preserve_duplicates
) const;

Returns a reference to a heap-allocated collection with default behavior containing those elements of this that satisfy the selection criterion expressed by the query_string. When you no longer need the resulting collection, you should reclaim its memory with ::operator delete() or os_collection::destroy() to avoid memory leaks.

The argument element_type_name is the name of the element type of this. Names established through the use of typedef are not allowed.

Any string consisting of an os_int32-valued C++ expression is allowed in a query string, as long as

Variables are also data members of the elements of the collection.
For local variables (free references), you create an os_coll_query object.
For global functions (free references), you create an os_coll_query object.
There are no function calls, except calls to strcmp() or strcoll().
There are no comparison operators for which the user might be required to define a corresponding rank/hash function.
There are no calls to member functions that satisfy the restrictions listed below.

Within the selection criterion of query expressions, member names are implicitly qualified by this, just as are member names in function member bodies.

       collection-expression [:  os_int32-expression :]

where collection-expression is an expression of type os_Collection, and os_int32-expression is the selection criterion for the nested query.

A nested single-element query has the form

       collection-expression [%  os_int32-expression %]

where collection-expression and os_int32-expression are as for nested collection-valued queries. This form evaluates to one element of collection-expression. If there is more than one element that satisfies the nested query's selection criterion, one of them is picked and returned.

A nested query returning a collection will be converted to an os_int32 when appropriate, using os_collection::operator os_int32().

The schema_database is a database whose schema contains all the types mentioned in the selection criterion. This database provides the environment in which the query is analyzed and optimized. If this argument is not supplied, the database in which the collection resides is used, which is always adequate. If the query is being performed over a transient collection, the application schema database is used by default.

In addition to being used as the default schema database for queries over transient collections, the application schema database is used if the transient database is supplied explicitly.

Since the application schema database is never opened just prior to analysis of a query, use of the application schema database in query analysis carries the overhead of a database open. Therefore, explicitly supplying an appropriate database that is already open will improve query performance.

ObjectStore uses file_name and line when reporting errors related to the query. You can set them to identify the location of the query's source code.

If dups is the enumerator os_collection::query_dont_preserve_duplicates, duplicate elements that satisfy the query condition are not included in the query result. If dups is the enumerator os_collection::query_preserve_duplicates, duplicate elements that satisfy the query condition are included in the query result.

os_Collection <E> &query(
      const os_bound_query&            ,
      os_boolean dups = query_dont_preserve_duplicates
) const;

Returns a reference to a heap-allocated collection with default behavior containing those elements of this that satisfy the os_bound_query. If dups is the enumerator query_dont_preserve_duplicates, duplicate elements that satisfy the query condition are not included in the query result. If dups is the enumerator query_preserve_duplicates, duplicate elements that satisfy the query condition are included in the query result.

When you no longer need the resulting collection, you should reclaim its memory with ::operator delete() or os_collection::destroy() to avoid memory leaks.

os_Collection::query_pick()

E query_pick(
      char *element_type_name,
      char *query_string,
      os_database *schema_database = 0,
      char *filename, os_unsigned_int32 line,
) const;

Returns an element of this that satisfies the selection criterion expressed by the query_string. If there is more than one such element, one is picked arbitrarily and returned. If no element satisfies the query or the collection is empty, 0 is returned.

The argument element_type_name is the name of the element type of this. Names established through the use of typedef are not allowed.

Any string consisting of an os_int32-valued C++ expression is allowed, as long as

Variables are also data members of the elements of the collection.
For local variables (free references), you create an os_coll_query object.
For global functions (free references), you create an os_coll_query object.
There are no function calls, except calls to strcmp() or strcoll().
There are no comparison operators for which the user might be required to define a corresponding rank/hash function.
There are no calls to member functions that satisfy the restrictions listed below.

Within the selection criterion of query expressions, member names are implicitly qualified by this, just as are member names in function member bodies.

Restrictions

Functions called in query strings are subject to certain restrictions:

The return type can be a basic type (int, char, float, char*).
If the function is a member function it can also return a pointer or a reference to a class type.
The function can take up to two arguments. The first argument must be a pointer. For member functions this is the implied first argument.
Global functions are free references and must be used in an os_coll_query object.
Member functions can be used like data members.

Member function in a query string

Applications that use a member function (not returning a reference) in a query string must do four things:

Define an os_backptr-valued data member in the class that defines the member function. It must precede the member function declaration in the class definition.
Call the macro os_query_function(). This should be defined at file scope, for example, in the header file that contains the class that defines the member function. See os_query_function() for more information.
Call the macro os_query_function_body(). This should be defined at file scope in a source file that will only be compiled into the application once. See os_query_function_body() for more information.
Call the macro OS_MARK_QUERY_FUNCTION(). This macro should be invoked in the schema source file. See OS_MARK_QUERY_FUNCTION() for more information.

Member function, returning a reference, in a query string

For applications that use a member function that returns a reference in a query string, you must do the following four things:

Define an os_backptr-valued data member in the class that defines the member function.
Call the macro os_query_function_returning_ref(). This should be defined at file scope, for example, in the header file that contains the class that defines the member function. See os_query_function_body_returning_ref() for more information.
Call the macro os_query_function_body_returning_ref(). This should be defined at file scope in a source file that will only be compiled into the application once. See os_query_function_body_returning_ref() for more information.
Call the macro OS_MARK_QUERY_FUNCTION(). This macro should be invoked in the schema source file. See OS_MARK_QUERY_FUNCTION() for more information.

To maintain indexes keyed by paths containing member function calls, use os_backptr::make_link() and os_backptr::break_link().

The query string can itself contain queries. A notation is defined to allow the user to conveniently specify such nested queries in a single call to a query member function.

A nested collection-valued query has the form

       collection-expression [:  os_int32-expression :]

where collection-expression is an expression of type os_Collection, and os_int32-expression is the selection criterion for the nested query.

A nested single-element query has the form

       collection-expression [%  os_int32-expression %]

A nested query returning a collection is converted to an os_int32 when appropriate, using os_collection::operator os_int32().

If the transient database is specified, the application's schema (stored in the application schema database) is used to evaluate the query.

E query_pick(const os_bound_query&) const;

Returns an element of this that satisfies the os_bound_query. If there is more than one such element, one is picked arbitrarily and returned. If no element satisfies the query or the collection is empty, 0 is returned.

os_Collection::remove()

os_int32 remove(const E);

Removes the specified instance of E from the collection for which the function was called, if present. If the collection is ordered, the first occurrence of the specified E is removed. If the collection is an array, all elements after this element are pushed up.

os_Collection::remove_first()

os_int32 remove_first(E&);

Removes the first element from the specified collection, if the collection is not empty; returns a nonzero os_int32 if the collection was not empty; and modifies its argument to refer to the removed element. If the specified collection is not ordered, err_coll_not_supported is signaled. If the collection is an array, all elements after this element are pushed up.

E remove_first();

Removes the first element from the specified collection and returns the removed element, or 0 if the collection is empty. Note that for collections that allow null elements, the significance of the return value can be ambiguous. The alternative overloading of remove_first(), above, can be used to avoid the ambiguity. If the specified collection is not ordered, err_coll_not_supported is signaled. If the collection is an array, all elements after this element are pushed up.

os_Collection::remove_last()

os_int32 remove_last(const E&);

Removes the last element from the specified collection, if the collection is not empty; returns a nonzero os_int32 if the collection is not empty; and modifies its argument to refer to the removed element. If the specified collection is not ordered, err_coll_not_supported is signaled.

E remove_last();

Removes the last element from the specified collection and returns the removed element, or 0 if the collection was empty. Note that for collections that allow null elements, the significance of the return value can be ambiguous. The alternative overloading of remove_last(), above, can be used to avoid the ambiguity. If the specified collection is not ordered, err_coll_not_supported is signaled.

os_Collection::replace_at()

E replace_at(const E, const os_Cursor<E>&);

Returns the element at which the specified cursor is positioned, and replaces it with the specified instance of E. The cursor must be a default cursor (that is, one that results from a constructor call with only a single argument). If the cursor is null, err_coll_null_cursor is signaled. If the cursor is invalid, err_coll_illegal_cursor is signaled.

E replace_at(const E, os_unsigned_int32 position);

Returns the element with the specified position, and replaces it with the specified instance of E. If the position is not less than the collection's cardinality, err_coll_out_of_range is signaled. If the collection is not ordered, err_coll_not_supported is signaled.

os_Collection::retrieve()

E retrieve(const os_Cursor<E>&) const;

Returns the element at which the specified cursor is positioned. The cursor must be a default cursor (that is, one that results from a constructor call with only a single argument). If the cursor is null, err_coll_null_cursor is signaled. If the cursor is invalid, err_coll_illegal_cursor is signaled.

E retrieve(os_unsigned_int32 position) const;

Returns the element with the specified position. If the position is not less than the collection's cardinality, err_coll_out_of_range is signaled. If the collection is not ordered, err_coll_not_supported is signaled.

os_Collection::retrieve_first()

E retrieve_first() const;

Returns the specified collection's first element, or 0 if the collection is empty. For collections that contain zeros, see the other overloading of this function, following. If the collection is not ordered, err_coll_not_supported is signaled.

os_int32 retrieve_first(const E&) const;

Returns 0 if the specified collection is empty; returns a nonzero os_int32 otherwise. Modifies the argument to refer to the collection's first element. If the collection is not ordered, err_coll_not_supported is signaled.

os_Collection::retrieve_last()

E retrieve_last() const;

Returns the specified collection's last element, or 0 if the collection is empty. For collections that contain zeros, see the other overloading of this function, following. If the collection is not ordered, err_coll_not_supported is signaled.

os_int32 retrieve_last(const E&) const;

Returns 0 if the specified collection is empty; returns a nonzero os_int32 otherwise. Modifies the argument to refer to the collection's last element. If the collection is not ordered, err_coll_not_supported is signaled.

os_collection

This class has a parameterized subtype. See os_Collection.

The element type of any instance of os_collection must be a pointer type.

Create collections with the member create() or, for stack-based or embedded collections, with a constructor. Do not use new to create collections.

Name	Arguments	Returns
add_index	( const os_index_path&, os_int32 = unordered, os_segment* = 0 ) ( const os_index_path&, os_int32 = unordered, os_database* = 0 ) ( const os_index_path&, os_segment* = 0 ) ( const os_index_path&, os_database* = 0 )	void void void void
cardinality	( ) const	os_unsigned_int32
change_behavior	( os_unsigned_int32 behavior, os_int32 = verify )	void
change_rep	( os_unsigned_int32 expected_size const os_coll_rep_descriptor *policy= 0, os_int32 retain = dont_associate_policy )	void
clear	( )	void
contains	( const void* ) const
count	( const void* ) const	os_int32
create (static)	( os_segment seg, os_unsigned_int32 behavior = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor = 0, os_int32 retain = dont_associate_policy )	os_collection&
	( os_database db, os_unsigned_int32 behavior = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor = 0, os_int32 retain = dont_associate_policy )	os_collection&
	( os_object_cluster clust, os_unsigned_int32 behavior = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor = 0, os_int32 retain = dont_associate_policy )	os_collection&
	( void* proximity, os_unsigned_int32 behavior = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor* = 0, os_int32 retain = dont_associate_policy )	os_collection&
default_behavior (static)	( )	os_unsigned_int32
destroy (static)	( os_collection& )	void
drop_index	( const os_index_path& )	void
empty	( )	os_int32
exists	( char element_type_name, char query_string, os_database schema_database = 0, char file, os_unsigned_int32 line ) const ( const os_bound_query& ) const	os_int32 os_int32
get_behavior	( ) const	os_unsigned_int32
get_indexes	( ) const	os_collection*
get_rep	( ) const	os_coll_rep_ descriptor&
get_thread_locking (static)	( )	os_boolean
has_index	( const os_index_path&, os_int32 index_options = unordered ) const	os_int32
insert	( const void* )	void
insert_after	( const void, const os_cursor& ) ( const void, os_unsigned_int32 )	void void
insert_before	( const void, const os_cursor& ) ( const void, os_unsigned_int32 )	void void
insert_first	( const void* )	void
insert_last	( const void* )	void
multi_trans_add_index	( os_reference c, const os_index_path & p, os_int32 index_options, os_segment * index_seg, os_segment * scratch_seg, os_unsigned_int32 num_per_trans )
multi_trans_drop_index	( os_reference c, const os_index_path & p, os_segment * scratch_seg, os_unsigned_int32 num_per_trans )
only	( ) const	E
operator os_array&	( )
operator const os_array&	( ) const
operator os_bag&	( )
operator const os_bag&	( ) const
operator os_list&	( )
operator const os_list&	( ) const
operator os_set&	( )
operator const os_set&	( ) const
operator ==	( const os_collection& ) const ( const void* ) const	os_int32 os_int32
operator !=	( const os_collection& ) const ( const void* ) const	os_int32 os_int32
operator <	( const os_collection& ) const ( const void* ) const	os_int32 os_int32
operator <=	( const os_collection& ) const ( const void* ) const	os_int32 os_int32
operator >	( const os_collection& ) const ( const void* ) const	os_int32 os_int32
operator >=	( const os_collection& ) const ( const void* ) const	os_int32 os_int32
operator =	( const os_collection& ) const ( const void* ) const	os_collection& os_collection&
operator \|=	( const os_collection& ) const ( const void* ) const	os_collection& os_collection&
operator \|	( const os_collection& ) const ( const void* ) const	os_collection& os_collection&
operator &=	( const os_collection& ) const ( const void* ) const	os_collection& os_collection&
operator &	( const os_collection& ) const ( const void* ) const	os_collection& os_collection&
operator -=	( const os_collection& ) const ( const void* ) const	os_collection& os_collection&
operator -	( const os_collection& ) const ( const void* ) const	os_collection& os_collection&
pick	( ) const ( const os_index_path &path, const os_coll_range &range ) const	void* void*
query	( char element_type_name, char query_string, os_database schema_database = 0, char file, os_unsigned_int32 line, os_boolean dups ) const ( const os_bound_query& ) const	os_collection& os_collection&
query_pick	( char element_type_name, char query_string, os_database schema_database = 0, char file, os_unsigned_int32 line ) const ( const os_bound_query& ) const	void* void*
remove	( const void* )	os_int32
remove_at	( const os_cursor& ) ( os_unsigned_int32 )	void void
remove_first	( const void*& ) ( )	os_int32 void*
remove_last	( const void*& ) ( )	os_int32 void*
replace_at	( const void, const os_cursor& ) ( const void, os_unsigned_int32 )	void* void*
retrieve	( os_unsigned_int32 ) const ( const os_cursor& ) const	void* void*
retrieve_first	( ) const ( const void*& ) const	void* os_int32
retrieve_last	( ) const ( const void*& ) const	void* os_int32
set_thread_locking (static)	( os_boolean )	void

os_collection enumerators

The following table lists enumerators for os_collection.


Enumerators
allow_duplicates
allow_nulls
associate_policy
dont_associate_policy
dont_verify
EQ
GE
GT
LE
LT
maintain_cursors
maintain_order
NE
order_by_address
pick_from_empty_returns_null
signal_cardinality
signal_duplicates
unordered
verify

os_collection::add_index()

void add_index(
      const os_index_path&,
      os_int32 options,
      os_segment* = 0
);

Creates an index into the specified collection, keyed by the specified os_index_path. The presence of the index allows optimization of queries involving lookup of collection elements based on the specified path. See the class os_index_path. If the specified collection already has an index with the specified key, this call is ignored. Two instances of os_index_path specify the same key if they were created with the same path string and element type.

Collections with large cardinality might warrant adding the index using multiple transactions. See os_collection::multi_trans_add_index().

The exception err_am is signaled if a class mentioned in the path serving as index key cannot be found in the schema of the database containing the index (or the application schema, if the index is transient).

The options argument is a bit pattern indicating the behavior of the index. You supply the bit pattern by forming the bit-wise disjunction (using |) of enumerators signifying the desired behavior. These enumerators, together with the behaviors they signify, are listed below.

os_index_path::ordered: indicates an ordered index, implemented as a B-tree, supporting optimization of range queries, that is, queries involving the comparison operators <, >, <=, and >=. Specifying both ordered and unordered (see below) for the same index results in an ordered index.
os_index_path::unordered: indicates an unordered index, implemented as a hash table. Such an index does not support optimization of range queries. Specifying both ordered and unordered for the same index results in an ordered index.
os_index_path::allow_duplicates: indicates an index that allows duplicate keys. You should use such an index for collections in which two or more elements can share a key value. Specifying both allow_duplicates and no_duplicates (see below) for the same index results in a no_duplicates index.
os_index_path::no_duplicates: indicates an index that does not allow duplicate key values. You should use such an index for collections in which no two elements can share a key value. If duplicate key values might accidentally occur, use this enumerator together with os_index_path::signal_duplicates (see below). Without signal_duplicates, duplicate keys will not be detected and can have unpredictable results. Specifying both allow_duplicates and no_duplicates (see above) for the same index results in a no_duplicates index.
os_index_path::signal_duplicates: indicates an index that detects duplicate key values. Can only be used together with os_index_path::no_duplicates. If an index that signals duplicates is added to a collection containing two or more elements that share a key value, the exception err_index_duplicate_key is signaled. In addition, for a collection with an index that signals duplicates, inserting an element with the same key value as some other element also provokes an err_index_duplicate_key exception.
os_index_path::copy_key (default): indicates an index with entries consisting of key-value/element pairs, as opposed to pointer-to-key-value/element pairs (see os_index_path::point_to_key, below). For a copy_key index, form an entry by copying the object at the end of the os_index_path that specifies the key. Such an index generally takes up more space than one that points to its keys, but it provides faster access times because of reduced paging costs. Specifying both copy_key and point_to_key for the same index results in a point_to_key index.
os_index_path::point_to_key: indicates an index with entries consisting of pointer-to-key-value/element pairs, as opposed to key-value/element pairs. For a point_to_key index, an entry includes a pointer to the object at the end of the os_index_path that specifies the key. Because of increased paging costs, such an index generally provides slower access times than an index that copies its keys; but a point_to_key index takes up less space. Specifying both copy_key and point_to_key for the same index results in a point_to_key index.
os_index_path::use_references: indicates a reference-based (as opposed to pointer-based) index. For very large collections, using an os_ixonly representation and a reference-based index (or indexes) can, for many operations, significantly reduce address space consumption. Collections using any reference-based index must use only reference-based indexes.

By default, indexes have the following behavior:

      os_index_path::unordered |
      os_index_path::allow_duplicates |
      os_index_path::copy_key.

The os_segment* argument points to the segment in which the new index is to be allocated. If the argument is omitted or if 0 is supplied, the index is allocated in the same segment as the collection being indexed. Putting each index in its own dedicated segment often results in better performance.

The function add_index() can be invoked at any point in the lifetime of a collection.

In a given database, the first time an unordered index is created for a particular key type, ObjectStore modifies the database's schema. Similarly, the first time an ordered index is created for a particular key type, ObjectStore modifies the schema. Schema modification write-locks segment 0, which effectively locks the entire database.

void add_index(
      const os_index_path&,
      os_int32 options,
      os_database*
);

Creates an index into the specified collection, keyed by the specified os_index_path. The presence of the index allows optimization of queries involving lookup of collection elements based on the specified path. See the class os_index_path. If the specified collection already has an index with the specified key, this call is ignored. The os_database* argument points to the database in which the new index is to be allocated. See above for an explanation of the options argument.

void add_index(
      const os_index_path&,
      os_segment* = 0
);

Creates an index into the specified collection, keyed by the specified os_index_path. The presence of the index allows optimization of queries involving lookup of collection elements based on the specified path. See the class os_index_path. If the specified collection already has an index with the specified key, this call is ignored. The os_segment* argument points to the segment in which the new index is to be allocated. If the argument is omitted or if 0 is supplied, the index is allocated in the same segment as the collection being indexed.

void add_index(
      const os_index_path&,
      os_database*
);

Creates an index into the specified collection, keyed by the specified os_index_path. The presence of the index allows optimization of queries involving lookup of collection elements based on the specified path. See the class os_index_path. If the specified collection already has an index with the specified key, this call is ignored. The os_database* argument points to the database in which the new index is to be allocated.

os_collection::allow_duplicates

Possible disjunct of the bit-wise disjunction composing the behavior argument to the create() and change_behavior() members of os_collection, os_Collection, and their subtypes.

Indicates that the new or changed collection should allow duplicate elements, that is, multiple occurrences of the same element. Inserting a value into a collection that allows duplicates always increases the collection's cardinality, and increases the count of that value in the collection. If duplicates are not allowed, insertion of an element that is already present either is silently ignored or signals the exception err_coll_duplicates. See os_collection::insert(). Allowing duplicates generally increases the efficiency of insert operations, since the operations do not have to check for the presence of the inserted element, as they do if duplicates are not allowed.

os_collection::allow_nulls

Possible disjunct of the bit-wise disjunction composing the behavior argument to the create() and change_behavior() members of os_collection, os_Collection, and their subtypes. Indicates that the new or changed collection should allow null elements, that is, 0. Inserting a value into a collection that disallows nulls signals the exception err_coll_nulls. See os_collection::insert().

os_collection::associate_policy

Possible argument to create() and change_rep() members of os_collection, os_Collection, and their subtypes. Indicates that the rep_policy argument to create() or change_rep() should be used to determine how the new or changed collection's representation changes in response to changes in cardinality. See also os_collection::dont_associate_policy.

os_collection::be_an_array

Possible disjunct of the bit-wise disjunction composing the behavior argument to the create() and change_behavior() members of os_collection, os_Collection, os_list, and os_List. For collections that maintain order only. With this behavior, access to the n^th element is an O(1) operation.

os_collection::cardinality()

os_unsigned_int32 cardinality() const;

Returns the sum of the count of each element of the specified collection.

os_collection::cardinality_estimate()

os_unsigned_int32 cardinality_estimate() const;

Returns an estimate of a collection's cardinality. This is an O(1) operation in the size of the collection. This function returns the cardinality as of the last call to os_collection::update_cardinality(); or, for collections that maintain cardinality, the actual cardinality is returned. See os_ixonly_bc.

os_collection::cardinality_is_maintained()

os_int32 cardinality_is_maintained() const;

Returns nonzero if the collection maintains cardinality; returns 0 otherwise. See os_ixonly_bc.

os_collection::change_behavior()

void change_behavior(
      os_unsigned_int32 behavior,
      os_int32 = verify
);

Changes the behavior of the specified collection.

The behavior is a bit pattern, the bit-wise disjunction (using the operator |) of enumerators indicating all the desired properties for the changed collection. The enumerators are

os_collection::allow_nulls
os_collection::allow_duplicates
os_collection::signal_duplicates
os_collection::maintain_order
os_collection::maintain_cursors
os_collection::signal_cardinality
os_collection::pick_from_empty_returns_null

A run-time error is signaled if an attempt is made to change a collection to both signal and allow duplicates. A run-time error is signaled if an attempt is made to change an os_bag or os_Bag to disallow duplicates or be ordered, or to change an os_set or os_Set to allow duplicates or be ordered, or to change an os_list or os_List to be unordered.

os_collection::verify

When you change a collection so that it no longer allows duplicate or null insertions, you might want to check to see if duplicates or nulls are already present. Such a check is performed for you if you supply the enumerator os_collection::verify as the second argument. If nulls are found, err_coll_nulls is signaled. If duplicates are found, and signal_duplicates is on, err_coll_duplicates is signaled. If signal_duplicates is not on, the first among each set of duplicates is retained and trailing duplicates are silently removed. If os_collection::verify is not used, the resulting collection is assumed to be free of duplicates or nulls.

os_collection::change_rep()

void change_rep(
      os_unsigned_int32 expected_size,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Changes the representation or representation policy of the specified collection.

The expected_size is the cardinality you expect the collection to have when fully loaded. This value is used by ObjectStore to determine the collection's initial representation. This saves on the overhead of transforming the collection's representation as it grows during loading.

The rep_policy is the representation policy to be associated with the collection until explicitly changed, if retain is os_collection::associate_policy. If retain is os_collection::dont_associate_policy, the rep_policy is used, together with the expected_size, only to determine the collection's initial representation. (A representation policy is, essentially, a mapping from cardinality ranges to representation types - see os_coll_rep_descriptor, and in ObjectStore Advanced C++ API User Guide see os_ptr_bag and os_packed_list.)

os_collection::clear()

void clear();

Removes all elements of the specified collection.

os_collection::contains()

os_int32 contains(const void*) const;

Returns a nonzero os_int32 if the specified void* is an element of the specified collection, and 0 otherwise.

os_collection::count()

os_int32 count(const void*) const

Returns the number of occurrences (possibly zero) of the specified void* in the collection for which the function was called.

os_collection::create()

static os_collection &create(
      os_database *db,
      os_unsigned_int32 behavior       = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new collection in the database pointed to by db. If the transient database is specified, the collection is allocated in transient memory.

Properties

Every instance of os_Collection has the following properties:

Its entries have no intrinsic order.
Duplicate elements are not allowed.

By default a new os_Collection object also has the following properties:

Performing pick() on an empty result of querying the collection raises err_coll_empty.
Null pointers cannot be inserted.
No guarantees are made concerning whether an element inserted or removed during a traversal of its elements will be visited later in that same traversal.

Using the behavior argument, you can customize the behavior of new os_Collections with regard to these last three properties. See Customizing Collection Representation in ObjectStore Advanced C++ API User Guide.

If you want to customize the representation of a new collection, see Customizing Collection Representation in ObjectStore Advanced C++ API User Guide.

The default representation policy for os_Collections is as follows:

As the collection grows from 0 to 15, the representation is os_chained_list.
Once the collection grows past 15, os_dyn_hash is used.

static os_collection &create(
      os_segment * seg,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

static os_collection &create(
      os_object_cluster *clust,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new collection in the object cluster pointed to by clust. The rest of the arguments are just as described above.

static os_collection &create(
      void * proximity,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

os_collection::default_behavior()

static os_unsigned_int32 default_behavior();

Returns a bit pattern indicating this type's default behavior.

os_collection::destroy()

static void destroy(os_collection&);

Deletes the specified collection and deallocates associated storage.

os_collection::dont_associate_policy

Possible argument to create() and change_rep() members of os_collection, os_Collection, and their subtypes. Indicates that the rep_policy argument to create() or change_rep() should be used, together with expected_size, only to determine the new or changed collection's initial representation. See also os_collection::associate_policy.

os_collection::dont_verify

Possible argument to os_collection::change_behavior(), when changing a collection to allow duplicates or nulls. If this enumerator is supplied, the changed collection is assumed to be free of duplicates and nulls. See also os_collection::verify.

os_collection::drop_index()

void drop_index(const os_index_path &p);

Collections with large cardinality might warrant removing the index with multiple transactions. See os_collection::multi_trans_drop_index().

An err_no_such_index exception is signaled if an index with the specified key was never added to the collection.

os_collection::EQ

Possible return value of the user-supplied rank() functions, and possible argument to os_coll_range constructors, signifying equal.

os_collection::empty()

os_int32 empty();

Returns a nonzero os_int32 if the specified collection is empty, and 0 otherwise.

os_collection::exists()

os_int32 exists(
      char *element_type_name,
      char *query_string,
      os_database *schema_database = 0,
      char *filename,
      os_unsigned_int32
) const;

Returns a nonzero os_int32 (true) if there exists an element of this that satisfies the selection criterion expressed by the query_string. Otherwise, 0 (false) is returned.

The argument element_type_name is the name of the element type of this. Names established through the use of typedef are not allowed.

The query_string is a C++ control expression indicating the query's selection criterion. An element e satisfies the selection criterion if the control expression evaluates to a nonzero os_int32 (true) when e is bound to this.

Any string consisting of an os_int32-valued C++ expression is allowed, as long as

There are no variables that are not data members.
There are no function calls, except calls to strcmp() or strcoll(), calls involving a comparison operator for which the user has defined a corresponding rank function, calls to rank functions themselves, and calls to member functions that satisfy the restrictions described below.

Within the selection criterion of query expressions, member names are implicitly qualified by this, just as are member names in function member bodies.

Restrictions

Member functions called in query strings are subject to certain restrictions:

The return type must be a pointer type or an arithmetic type (int, char, float, and so on - see The Annotated C++ Reference Manual, Section 3.6.1). If it is not, a compile-time error results.
The function must take no arguments except the this argument. Otherwise, a compile-time error results.

Member function in a query string

Applications that use a member function (not returning a reference) in a query string must do four things:

Define an os_backptr-valued data member in the class that defines the member function.
Call the macro os_query_function(). This should be defined at file scope, for example, in the header file that contains the class that defines the member function. See os_query_function() for more information.
Call the macro os_query_function_body(). This should be defined at file scope in a source file that will only be compiled into the application once. See os_query_function_body() for more information.

Member function, returning a reference, in a query string

For applications that use a member function that returns a reference in a query string, you must do the following four things:

Define an os_backptr-valued data member in the class that defines the member function.
Call the macro os_query_function_returning_ref(). This should be defined at file scope, for example, in the header file that contains the class that defines the member function. See os_query_function_body_returning_ref() for more information.
Call the macro os_query_function_body_returning_ref(). This should be defined at file scope in a source file that will only be compiled into the application once. See os_query_function_body_returning_ref() for more information.

To maintain indexes keyed by paths containing member function calls, use os_backptr::make_link() and os_backptr::break_link().

Nested queries

The query string can itself contain queries. A notation is defined to allow the user to specify such nested queries conveniently in a single call to a query member function.

A nested collection-valued query has the form

       collection-expression [:  os_int32-expression :]

where collection-expression is an expression of type os_collection, and os_int32-expression is the selection criterion for the nested query.

A nested single-element query has the form

       collection-expression [%  os_int32-expression %]

If the transient database is specified, the application's schema (stored in the application schema database) is used to evaluate the query.

os_int32 exists(const os_bound_query&) const;

Returns a nonzero os_int32 (true) if there exists an element of this that satisfies the os_bound_query. Otherwise, 0 (false) is returned.

os_unsigned_int32 get_behavior() const;

Returns a bit pattern indicating the specified collection's behavior.

os_collection::get_indexes()

os_collection *get_indexes() const;

If this has associated indexes, returns a collection of os_index_name*s, one for each index. If this has no indexes, 0 is returned. The caller is responsible for deleting the collection and its contents.

os_collection::get_rep()

const os_coll_rep_descriptor &get_rep() const;

Returns a pointer to the specified collection's currently active rep descriptor.

os_collection::get_thread_locking()

static os_boolean get_thread_locking();

If nonzero is returned, collections thread locking is enabled; if 0 is returned, collections thread locking is disabled. See os_collection::set_thread_locking().

os_collection::has_index()

os_int32 has_index(
      const os_index_path&,
      os_int32 index_options = unordered
) const;

Returns a value saying whether an index can support the index type specified with index_options. Possible values for index_option are ordered and unordered.

You must supply a path string and one of the index options. An index that supports exact match queries (hash table) can only be used for exact matches. An index that supports range queries (binary tree) can be used for both exact match and range queries. In effect, os_collection::has_index answers the question "can this index support this type of query" and not what option was used to create the index.

For an index created with the ordered option, the following is true:
has_index(path,os_index::ordered)
Returns true
has_index(path,os_index::unordered)
Returns true
For an index created with the unordered option, the following is true
has_index(path,os_index::ordered)
Returns false
has_index(path,os_index::unordered)
Returns true
:

has_index(path,os_index::ordered)	Returns true
has_index(path,os_index::unordered)	Returns true

has_index(path,os_index::ordered)	Returns false
has_index(path,os_index::unordered)	Returns true

Returns a nonzero os_int32 (true) if the collection has an index that supports the functionality of an index with the given options. That is, an ordered index (one that supports queries of the form "all things greater than X") can be used as an unordered index (one that only supports queries of the form "all things equal to X"). However, an unordered index cannot be used as an ordered index. See os_collection::add_index() for additional information.

os_collection::initialize()

static void initialize();

Must be executed in a process before any use of ObjectStore collection or relationship functionality is made. After the first execution of initialize() in a given process, subsequent executions in that process have no effect.

os_collection::insert()

void insert(const void*);

Adds the specified void* to the collection for which the function was called. If the collection is ordered, the element is inserted at the end of the collection. If the collection disallows and signals duplicates, and the specified void* is already present in the collection, err_coll_duplicates is signaled. If the collection disallows duplicates and does not signal duplicates, and the specified void* is already present in the collection, the insertion is silently ignored. If the collection disallows nulls, and the specified void* is 0, err_coll_nulls is signaled.

os_collection::insert_after()

void insert_after(const void*, const os_cursor&);

Adds the specified void* to the collection for which the function was called. The new element is inserted immediately after the element at which the specified cursor is positioned. The index of all elements after the new element increases by 1. The cursor must be a default cursor (that is, one that results from a constructor call with only a single argument). If the cursor is null, err_null_cursor is signaled. If the cursor is invalid, err_coll_illegal_cursor is signaled. If the collection is not ordered, err_coll_not_supported is signaled. If the collection disallows duplicates, and the specified void* is already present in the collection, err_coll_duplicates is signaled. If the collection disallows nulls, and the specified void* is 0, err_coll_nulls is signaled.

void insert_after(const void*, os_unsigned_int32);

Adds the specified void* to the collection for which the function was called. The new element is inserted after the position indicated by the os_unsigned_int32. The index of all elements after the new element increases by 1. If the index is not less than the collection's cardinality, err_coll_out_of_range is signaled. If the collection is not ordered, err_coll_not_supported is signaled. If the collection disallows duplicates, and the specified void* is already present in the collection, err_coll_duplicates is signaled. If the collection disallows nulls, and the specified void* is 0, err_coll_nulls is signaled.

os_collection::insert_before()

void insert_before(const void*, const os_cursor&);

Adds the specified void* to the collection for which the function was called. The new element is inserted immediately before the element at which the specified cursor is positioned. The index of all elements after the new element increases by 1. The cursor must be a default cursor (that is, one that results from a constructor call with only a single argument). If the cursor is null, err_null_cursor is signaled. If the cursor is invalid, err_coll_illegal_cursor is signaled. If the collection is not ordered, err_coll_not_supported is signaled. If the collection disallows duplicates, and the specified void* is already present in the collection, err_coll_duplicates is signaled. If the collection disallows nulls, and the specified void* is 0, err_coll_nulls is signaled.

void insert_before(const void*, os_unsigned_int32);

Adds the specified instance of void* to the collection for which the function was called. The new element is inserted immediately before the position indicated by the os_unsigned_int32. The index of all elements after the new element increases by 1. If the index is not less than the collection's cardinality, err_coll_out_of_range is signaled. If the collection is not ordered, err_coll_not_supported is signaled. If the collection disallows duplicates, and the specified void* is already present in the collection, err_coll_duplicates is signaled. If the collection disallows nulls, and the specified void* is 0, err_coll_nulls is signaled.

os_collection::insert_first()

void insert_first(const void*);

Adds the specified void* to the beginning of the collection for which the function was called. The index of all elements after the new element increases by 1. If the collection is not ordered, err_coll_not_supported is signaled. If the collection disallows duplicates, and the specified void* is already present in the collection, err_coll_duplicates is signaled. If the collection disallows nulls, and the specified void* is 0, err_coll_nulls is signaled.

os_collection::insert_last()

void insert_last(const void*);

Adds the specified void* to the end of the collection for which the function was called. If the collection is not ordered, err_coll_not_supported is signaled. If the collection disallows duplicates, and the specified void* is already present in the collection, err_coll_duplicates is signaled. If the collection disallows nulls, and the specified void* is 0, err_coll_nulls is signaled.

Possible element of the bit-wise disjunction that makes up the behavior argument to the create() and change_behavior() members of os_collection, os_Collection, and their subtypes. Indicates that the new or changed collection should support updates during iteration. If specified for an unordered collection, iterations over the collection that use safe cursors are guaranteed to visit elements that are inserted during the iteration. If specified for an ordered collection, iterations over the collection that use safe cursors are guaranteed to visit elements that are inserted during the iteration, provided the element was inserted later in the cursor's associated order than the cursor's position at the time of the insertion. See also os_cursor::safe on page 149.

os_collection::maintain_order

Possible element of the bit-wise disjunction that makes up the behavior argument to the create() and change_behavior() members of os_collection, os_Collection, and their subtypes. Indicates that the new or changed collection should maintain its elements in their order of insertion with insert(). This order is used as the default iteration order, as well as the relevant order for the members insert_after(), insert_before(), insert_first(), insert_last(), remove_at(), remove_first(), remove_last(), retrieve_first(), retrieve_last(), and replace_at().

os_collection::multi_trans_add_index()

static void multi_trans_add_index(
      os_reference c,
      const os_index_path & p,
      os_int32 index_options,
      os_segment * index_seg,
      os_segment * scratch_seg,
      os_unsigned_int32 num_per_trans );

Creates an index into the collection specified by the os_reference c, keyed by the specified os_index_path. This function adds the given index to the given collection using multiple transactions. Until the index is fully added, it is unusable. That is, the index raises an exception if an attempt is made to insert or remove through other means. This implies that the collection is effectively write-locked until all the transactions needed to add the index commit.

Function arguments

c is an os_reference to the collection to which to add the index.
p is an os_index_path.
index_options is the same as it is for add_index.
index_seg is the segment in which to create the index (just like add_index).
scratch_seg is a segment that is used internally and can be deleted when the function returns. It cannot be os_segment::get_transient_segment().
num_per_trans is the number of collection elements to insert into the collection per transaction.

If the multi_trans_add_index operation fails partway through, os_collection::drop_index() can be used.

os_collection::multi_trans_drop_index()

static void multi_trans_drop_index(
      os_reference c,
      const os_index_path & p,
      os_segment * scratch_seg,
      os_unsigned_int32 num_per_trans );

Destroys the index into the specified collection whose key is specified by p. This differs from os_collection::drop_index() only in that index maintenance is done using multiple transactions.

The index is unusable while it is being removed. The index raises an exception if an attempt is made to insert or remove it by other means. This means that the collection is effectively write-locked until all the transactions needed to remove the index commit.

Function arguments

c is an os_reference to the collection from which the index should be removed.
p is an os_index_path.
scratch_seg is the segment that is used internally and can be deleted when the function returns. It cannot be os_segment::get_transient_segment().
num_per_trans is the number of collection elements to update per transaction.

Ifs the multi_trans_drop_index operation fails partway through, os_collection::drop_index() can be used.

os_collection::NE

Possible argument to os_coll_range constructors, signifying not equal to.

os_collection::only()

void* only() const;

Returns the only element of the specified collection. If the collection has more than one element, err_coll_not_singleton is signaled. If the collection is empty, err_coll_empty is signaled, unless the collection has behavior os_collection::pick_from_empty_returns_null, in which case 0 is returned.

os_collection::operator os_int32()

operator os_int32() const;

Returns a nonzero os_int32 if the specified collection is not empty, and 0 otherwise.

os_collection::operator os_array&()

operator os_array&();

Returns an array with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of arrays.

os_collection::operator const os_array&()

operator const os_array&() const;

Returns a const array with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of arrays.

os_collection::operator os_bag&()

operator os_bag&();

Returns a bag with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of bags.

os_collection::operator const os_bag&()

operator const os_bag&() const;

Returns a const bag with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of bags.

os_collection::operator os_list&()

operator os_list&();

Returns a list with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of lists.

os_collection::operator const os_list&()

operator const os_list&() const;

Returns a const list with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of lists.

os_collection::operator os_set&()

operator os_set&();

Returns a set with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of sets.

os_collection::operator const os_set&()

operator const os_set&() const;

Returns a const set with the same elements and behavior as the specified collection. An exception is signaled if the collection's behavior is incompatible with the required behavior of sets.

os_collection::operator ==()

os_int32 operator ==(const os_collection &s) const;

os_int32 operator ==(const void* s) const;

Returns a nonzero value if and only if the collection contains s and nothing else.

os_collection::operator !=()

os_int32 operator !=(const os_collection &s) const;

os_int32 operator !=(const void* s) const;

Returns a nonzero value if and only if it is not the case that the collection contains s and nothing else.

os_collection::operator <()

os_int32 operator <(const os_collection &s) const;

Returns a nonzero value if and only if for each element in the this collection count(element) <= s.count(element) and cardinality() < s.cardinality().

os_int32 operator <(const void* s) const;

Returns a nonzero value if and only if the specified collection is empty.

os_collection::operator <=()

os_int32 operator <=(const os_collection &s) const;

Returns a nonzero value if and only if for each element in the this collection count(element) <= s.count(element).

os_int32 operator <=(const void* s) const;

Returns a nonzero value if and only if the specified collection is empty or e is the only element in the collection.

os_collection::operator >()

os_int32 operator >(const os_collection &s) const;

Returns a nonzero value if and only if for each element of s,
count(element) >=s.count(element) and cardinality() > s.cardinality().

os_int32 operator >(const void* s) const;

Returns a nonzero value if and only if count(s) >= 1 and cardinality() > 1.

os_collection::operator >=()

os_int32 operator >=(const os_collection &s) const;

Returns a nonzero value if and only if for each element of s, count(element) >=s.count(element).

os_int32 operator >=(const void* s) const;

Returns a nonzero value if and only if count(s) >= 1.

os_collection::operator =()

os_collection &operator =(const os_collection &s);

os_collection &operator =(const void* e);

Clears the target collection, inserts the element e into the target collection, and returns the target collection.

os_collection::operator |=()

os_collection &operator |=(const os_collection &s);

Inserts the elements contained in s into the target collection, and returns the target collection.

os_collection &operator |=(const void* e);

Inserts the element e into the target collection, and returns the target collection.

os_collection::operator |()

os_collection &operator |(const os_collection &s) const;

os_collection &operator |(const void *e) const;

os_collection::operator &=()

os_collection &operator &=(const os_collection &s);

os_collection &operator &=(const void* e);

If e is present in the target, converts the target into a collection containing just the element e. Otherwise, it clears the target collection. It returns the target collection.

os_collection::operator &()

os_collection &operator &(const os_collection &s) const;

os_collection &operator &(const void *e) const;

os_collection::operator -=()

os_collection &operator -=(const os_collection &s);

os_collection &operator -=(const void* e);

Removes the element e from the target collection. If the collection is ordered, it is the first occurrence of the element that is removed from the target collection. It returns the target collection.

os_collection::operator -()

os_collection &operator -(const os_collection &s) const;

os_collection &operator -(const void *e) const;

Copies the contents of this into a new collection, c, and then performs c -= e. The new collection, c, is then returned. If this allows duplicates, maintains order, or allows nulls, the result does. The result does not maintain cursors or signal duplicates.

os_collection::order_by_address

Possible argument to cursor constructor, indicating that the cursor's associated ordering is the order in which elements appear in persistent memory.

If you dereference each collection element as you retrieve it, and the objects pointed to by collection elements do not all fit in the client cache at once, this order can dramatically reduce paging overhead. An order-by-address cursor is update insensitive.

os_collection::ordered

Used as an argument to os_collection::add_index, to specify that an ordered index (B-tree) is to be maintained. Use of os_index_path::ordered is now preferred.

os_collection::pick()

void* pick() const;

Returns an arbitrary element of the specified collection. If the collection is empty, err_coll_empty is signaled, unless the collection has behavior os_collection::pick_from_empty_returns_null, in which case 0 is returned.

void* pick(
      const os_index_path &path,
      const os_coll_range &range
) const;

Returns an element of the specified collection such that the result of applying path to the element is a value that satisfies range (see the class os_coll_range). If there is no such element, err_coll_empty is signaled, unless the collection has behavior pick_from_empty_returns_null, in which case 0 is returned.

os_collection::pick_from_empty_returns_null

Possible disjunct of the bit-wise disjunction composing the behavior argument to the create() and change_behavior() members of os_collection, os_Collection, and their subtypes. Indicates that only() and pick() should return 0 when performed on empty collections. Without this behavior, performing these on empty collections provokes the exception err_coll_empty.

os_collection::query()

os_collection &query(
      char *element_type_name,
      char *query_string,
      os_database *schema_database = 0,
      char *file_name = 0,
      os_unsigned_int32 line = 0,
      os_boolean dups = query_dont_preserve_duplicates
) const;

Returns a reference to a heap-allocated collection containing those elements of this that satisfy the selection criterion expressed by the query_string. When you no longer need the resulting collection, you should reclaim its memory with ::operator delete() to avoid memory leaks.

The argument element_type_name is the name of the element type of this. Names established through the use of typedef are not allowed.

Any string consisting of an os_int32-valued C++ expression is allowed, as long as

There are no variables that are not data members.
There are no function calls, except calls to strcmp() or strcoll(), calls involving a comparison operator for which the user has defined a corresponding rank function, and calls to member functions that satisfy the restrictions listed below.

Within the selection criterion of query expressions, member names are implicitly qualified by this, just as are member names in function member bodies.

Restrictions

Member functions called in query strings are subject to certain restrictions:

The return type must be a pointer type or an arithmetic type (int, char, float, and so on - see The Annotated C++ Reference Manual, Section 3.6.1). If it is not, a compile-time error results.
The function must take no arguments except the this argument. Otherwise, a compile-time error results.

To perform a query, ObjectStore sometimes (depending on what indexes are present) issues calls to member functions used in paths and queries. If such a member function allocates memory it does not free (for example, if it returns a pointer to newly allocated memory), memory leaks can result; ObjectStore does not free the space the function allocates. So member functions used in paths or queries should not allocate persistent memory or memory in the transient heap.

Member function in a query string

Applications that use a member function (not returning a reference) in a query string must do four things:

Define an os_backptr-valued data member in the class that defines the member function.
Call the macro os_query_function(). This should be defined at file scope, for example, in the header file that contains the class that defines the member function. See os_query_function() for more information.
Call the macro os_query_function_body(). This should be defined at file scope in a source file that will only be compiled into the application once. See os_query_function_body() for more information.
Call the macro OS_MARK_QUERY_FUNCTION(). This macro should be invoked in the schema source file. See OS_MARK_QUERY_FUNCTION() for more information.

Member function, returning a reference, in a query string

For applications that use a member function that returns a reference in a query string, you must do the following four things:

Define an os_backptr-valued data member in the class that defines the member function.
Call the macro os_query_function_returning_ref(). This should be defined at file scope, for example, in the header file that contains the class that defines the member function. See os_query_function_body_returning_ref() for more information.
Call the macro os_query_function_body_returning_ref(). This should be defined at file scope in a source file that will only be compiled into the application once. See os_query_function_body_returning_ref() for more information.
Call the macro OS_MARK_QUERY_FUNCTION(). This macro should be invoked in the schema source file. See OS_MARK_QUERY_FUNCTION() for more information.

Within the selection criterion of query expressions, member names are implicitly qualified by this, just as are member names in function member bodies.

Nested queries

The query string can itself contain queries. A notation is defined to allow the user to specify such nested queries conveniently in a single call to a query member function.

A nested collection-valued query has the form

       collection-expression [:  os_int32-expression :]

where collection-expression is an expression of type os_collection, and os_int32-expression is the selection criterion for the nested query.

A nested single-element query has the form

       collection-expression [%  os_int32-expression %]

A nested query returning a collection is converted to an os_int32 when appropriate, using os_collection::operator os_int32().

ObjectStore uses file_name and line when reporting errors related to the query. You can set them to identify the location of the query's source code.

If dups is the enumerator query_dont_preserve_duplicates, duplicate elements that satisfy the query condition are not included in the query result. If dups is the enumerator query_preserve_duplicates, duplicate elements that satisfy the query condition are included in the query result.

If the transient database is specified, the application's schema (stored in the application schema database) is used to evaluate the query.

os_collection &query(
      const os_bound_query&,
      os_boolean dups = query_dont_preserve_duplicates
) const;

Returns a reference to a heap-allocated collection containing those elements of this that satisfy the os_bound_query. If dups is the enumerator query_dont_preserve_duplicates, duplicate elements that satisfy the query condition are not included in the query result. If dups is the enumerator query_preserve_duplicates, duplicate elements that satisfy the query condition are included in the query result.

When you no longer need the resulting collection, you should reclaim its memory with ::operator delete() to avoid memory leaks.

os_collection::query_pick()

void *query_pick(
      char *element_type_name,
      char *query_string,
      os_database *schema_database = 0,
      char *filename,
      os_unsigned_int32 line=0
) const;

The argument element_type_name is the name of the element type of this. Names established through the use of typedef are not allowed.

Any string consisting of an os_int32-valued C++ expression is allowed, as long as

There are no variables that are not data members.
There are no function calls, except calls to strcmp() or strcoll(), calls involving a comparison operator for which the user has defined a corresponding rank function, and calls to member functions that satisfy the restrictions listed below.

Within the selection criterion of query expressions, member names are implicitly qualified by this, just as are member names in function member bodies.

Member functions called in query strings are subject to certain restrictions:

The return type must be a pointer type or an arithmetic type (int, char, float, and so on - see The Annotated C++ Reference Manual, Section 3.6.1). If it is not, a compile-time error results.
The function must take no arguments except the this argument. Otherwise, a compile-time error results.

To perform a query, ObjectStore sometimes (depending on what indexes are present) issues calls to member functions used in paths and queries. If such a member function allocates memory it does not free (for example, if it returns a pointer to newly allocated memory), memory leaks can result; ObjectStore does not free the space the function allocates. So member functions used in paths or queries should not allocate persistent memory or memory in the transient heap.

Member function in a query string

Applications that use a member function (not returning a reference) in a query string must do four things:

Define an os_backptr-valued data member in the class that defines the member function.
Call the macro os_query_function().
Call the macro os_query_function_body().
Call the macro OS_MARK_QUERY_FUNCTION().

Member function, returning a reference, in a query string

For applications that use a member function that returns a reference in a query string, you must do the following four things:

Define an os_backptr-valued data member in the class that defines the member function.
Call the macro os_query_function_returning_ref().
Call the macro os_query_function_body_returning_ref().
Call the macro OS_MARK_QUERY_FUNCTION().

Within the selection criterion of query expressions, member names are implicitly qualified by this, just as are member names in function member bodies.

Nested queries

The query string can itself contain queries. A notation is defined to allow the user to specify such nested queries conveniently in a single call to a query member function.

A nested collection-valued query has the form

       collection-expression [:  os_int32-expression :]

where collection-expression is an expression of type os_collection, and os_int32-expression is the selection criterion for the nested query.

A nested single-element query has the form

       collection-expression [%  os_int32-expression %]

If the transient database is specified, the application's schema (stored in the application schema database) is used to evaluate the query.

void *query_pick(const os_bound_query&) const;

os_collection::remove()

os_int32 remove(const void*);

Removes the specified void* from the collection for which the function was called, if the void* is an element of the collection. If the collection is ordered, the first occurrence of the specified void* is removed. Returns a nonzero os_int32 if an element was removed, 0 otherwise.

os_collection::remove_at()

void remove_at(const os_cursor&);

Removes from the specified collection the element at which the cursor is positioned. The position of all elements after the removed element decreases by 1. The cursor must be a default cursor (that is, one that results from a constructor call with only a single argument). If the cursor is not positioned at an element, err_coll_illegal_cursor is signaled. If the collection is not ordered, err_coll_not_supported is signaled.

void remove_at(os_unsigned_int32 position);

Removes from the specified collection the element with the specified position. The position of all elements after the removed element decreases by 1. If the position is not less than the collection's cardinality, err_coll_out_of_range is signaled. If the collection is not ordered, err_coll_not_supported is signaled.

os_collection::remove_first()

os_int32 remove_first(const void*&);

Removes the first element from the specified collection, if the collection is not empty; returns a nonzero os_int32 if the collection was not empty, 0 otherwise; and modifies its argument to refer to the removed element. If the specified collection is not ordered, err_coll_not_supported is signaled.

void* remove_first();

Removes the first element from the specified collection; returns the removed element, or 0 if the collection was empty. Note that for collections that allow null elements, the significance of the return value can be ambiguous. The alternative overloading of remove_first(), above, can be used to avoid the ambiguity. If the specified collection is not ordered, err_coll_not_supported is signaled.

os_collection::remove_last()

os_int32 remove_last(const void*&);

Removes the last element from the specified collection, if the collection is not empty; returns a nonzero os_int32 if the collection was not empty, and modifies its argument to refer to the removed element. If the specified collection is not ordered, err_coll_not_supported is signaled.

void* remove_last();

Removes the last element from the specified collection; returns the removed element, or 0 if the collection was empty. Note that for collections that allow null elements, the significance of the return value can be ambiguous. The alternative overloading of remove_first(), above, can be used to avoid the ambiguity. If the specified collection is not ordered, err_coll_not_supported is signaled.

os_collection::replace_at()

void* replace_at(const void*, const os_cursor&);

Returns the element at which the specified cursor is positioned, and replaces it with the specified void*. The cursor must be a default cursor (that is, one that results from a constructor call with only a single argument). If the cursor is null, err_coll_null_cursor is signaled. If the cursor is nonnull but not positioned at an element, err_coll_illegal_cursor is signaled.

void* replace_at(const void*, os_unsigned_int32 position);

Returns the element with the specified position, and replaces it with the specified void*. If the position is not less than the collection's cardinality, err_coll_out_of_range is signaled. If the collection is not ordered, err_coll_not_supported is signaled.

os_collection::retrieve()

void* retrieve(const os_cursor&) const;

void* retrieve(os_unsigned_int32 position) const;

os_collection::retrieve_first()

void* retrieve_first() const;

Returns the specified collection's first element, or 0 if the collection is empty. For collections that contain zeros, see the other overloading of this function, below. If the collection is not ordered, err_coll_not_supported is signaled.

os_int32 retrieve_first(const void*&) const;

os_collection::retrieve_last()

void* retrieve_last() const;

Returns the specified collection's last element, or 0 if the collection is empty. For collections that contain zeros, see the other overloading of this function, below. If the collection is not ordered, err_coll_not_supported is signaled.

os_int32 retrieve_last(const void*&) const;

os_collection::set_query_memory_mode()

static void set_      query_memory_mode(
      os_query_memory_mode mode);

os_query_memory_mode is an enumeration type whose enumerators are:

os_query_memory_mode_none - Use this mode when you know you are doing small or well optimized queries and do not want to incur even a small amount of overhead. This mode is the default when the query is being executed in a nested transaction.

os_query_memory_mode_normal - Marks the address space at the start of the query. If at any time during the query address space runs out, the query is restarted from the beginning using low memory mode.

Use this mode if your application typically does not run queries that use large amounts of address space, but you still want to safeguard against running out of address space. This mode is the default for queries being executed in nonnested transactions.

os_query_memory_mode_low - Marks the address space at the start of the query. Put the results in a collection of references. Catch the err_address_space_full exception inside the query processor. When the exception is signaled, release the address space and continue the query from where it left off. At the end of the query, a final release is performed.

Use this mode for running large queries that can use a great deal of address space. This mode requires some overhead, but ensures the query completes without restarting.

os_collection::set_thread_locking()

static void set_thread_locking(os_boolean);

Collections thread locking is enabled by default when you link with a threads library. To enable collections thread locking explicitly, pass a nonzero value. ObjectStore thread locking must be enabled at the time of the call for this to have any effect. To disable collections thread locking, pass 0 to this function.

If your application uses multiple threads, and the synchronization coded in your application allows two threads to be within the collections or queries libraries at the same time, you need collections thread locking enabled. See also objectstore::set_thread_locking().

os_collection::update_cardinality()

os_unsigned_int32 update_cardinality();

Updates the value returned by os_collection::cardinality_estimate(), by scanning the collection and computing the actual cardinality. Before you add a new index to an os_ixonly_bc collection, call this function. If you do not, add_index() will work correctly, but less efficiently than if you do.

os_collection_size

This class serves as a formal argument to an overloading of the collection subtype constructors. It is used to specify the new collection's expected size. An integer type is not used as the formal in order to prevent certain undesirable conversions and conversion ambiguities. The actual argument supplied to the collection constructors can be an os_int32, since os_collection_size defines a conversion constructor, os_collection_size::os_collection_size(os_int32).

Type definitions

The types os_int32 and os_boolean, used throughout this manual, are each defined as a signed 32-bit integer type. The type os_unsigned_int32 is defined as an unsigned 32-bit integer type.

os_coll_query

Instances of this class are query objects. For more information on query objects, see Preanalyzed Queries in the ObjectStore Advanced C++ API User Guide

Type definitions

The types os_int32 and os_boolean, used throughout this manual, are each defined as a signed 32-bit integer type. The type os_unsigned_int32 is defined as an unsigned 32-bit integer type.

os_coll_query::create()

static const os_coll_query &create(
      const char *element_type,
      const char *query_string,
      os_database *schema_database,
      os_boolean cache_query = 0,
      char *file_name = 0,
      os_unsigned_int32 line = 0
);

Creates a query object, possibly with free variables and function references. The query object can be used to create an os_bound_query, which can then be executed with os_collection::query().

The argument element_type is the name of the element type of this. Names established through the use of typedef are not allowed.

The query_string is a C++ control expression indicating the query's selection criterion. An element, e, satisfies the selection criterion if the control expression evaluates to a nonzero os_int32 (true) when e is bound to this. Only some kinds of function calls are allowed in the query string. See "Restrictions on member functions in query strings" for more information.

The schema_database is a database whose schema contains all the types mentioned in the selection criterion. This database provides the environment in which the query is analyzed and optimized. The database in which the collection resides is often appropriate. If the transient database is specified, the application's schema (stored in the application schema database) is used to evaluate the query.

If cache_query is a nonzero os_int32 (true), the query object is allocated in the schema segment of the database specified. If the database specified is the transient database, the object is allocated in the schema segment of the application schema database. If cache_query is zero (the default), the object is transiently allocated and the user is responsible for deleting it.

file_name, if supplied, should be the name of the source file containing the call to create(). It is used only if an error is signaled during query analysis. Its sole purpose is to allow the resulting error message to make reference to the source file containing the code that caused an error.

line, if supplied, should be the number of the line in the source file on which the call to create() appears. It is used only if an error is signaled during query analysis. Its sole purpose is to allow the resulting error message to make reference to the source file line containing the code that caused an error.

Restrictions on member functions in query strings

Any string consisting of an os_int32-valued C++ expression is allowed in a query string, as long as

Variables are also data members of the elements of the collection.
For local variables (free references), you create an os_coll_query object.
For global functions (free references), you create an os_coll_query object.
There are no function calls, except calls to strcmp() or strcoll(),
There are no comparison operators for which the user might be required to define a corresponding rank/hash function.
There are no calls to member functions that satisfy the restrictions listed below.

Within the selection criterion of query expressions, member names are implicitly qualified by this, just as are member names in function member bodies.

Restrictions

Functions called in query strings are subject to certain restrictions:

The return type can be a basic type (int, char, float, char*).
If the function is a member function it can also return a pointer or a reference to a class type.
The function can take up to two arguments. The first argument must be a pointer. For member functions this is the implied first argument.
Global functions are free references and must be used in an os_coll_query object.
Member functions can be used like data members.

Member function in a query string

Applications that use a member function (not returning a reference) in a query string must do four things:

Define an os_backptr-valued data member in the class that defines the member function. It must precede the member function declaration in the class definition.
Call the macro os_query_function(). This should be defined at file scope, for example, in the header file that contains the class that defines the member function. See os_query_function() for more information.
Call the macro os_query_function_body(). This should be defined at file scope in a source file that will only be compiled into the application once. See os_query_function_body() for more information.
Call the macro OS_MARK_QUERY_FUNCTION(). This macro should be invoked in the schema source file. See OS_MARK_QUERY_FUNCTION() for more information.

Member function, returning a reference, in a query string

For applications that use a member function that returns a reference in a query string, you must do the following four things:

Define an os_backptr-valued data member in the class that defines the member function.
Call the macro os_query_function_returning_ref(). This should be defined at file scope, for example, in the header file that contains the class that defines the member function. See os_query_function_body_returning_ref() for more information.
Call the macro os_query_function_body_returning_ref(). This should be defined at file scope in a source file that will only be compiled into the application once. See os_query_function_body_returning_ref() for more information.
Call the macro OS_MARK_QUERY_FUNCTION(). This macro should be invoked in the schema source file. See OS_MARK_QUERY_FUNCTION() for more information.

To maintain indexes keyed by paths containing member function calls, use os_backptr::make_link() and os_backptr::break_link().

The query string can itself contain queries. A notation is defined to allow the user to conveniently specify such nested queries in a single call to a query member function.

A nested collection-valued query has the form

       collection-expression [:  os_int32-expression :]

where collection-expression is an expression of type os_Collection, and os_int32-expression is the selection criterion for the nested query.

A nested single-element query has the form

       collection-expression [%  os_int32-expression %]

A nested query returning a collection is converted to an os_int32 when appropriate, using os_collection::operator os_int32().

static const os_coll_query &create(
      const char *element_type,
      const char *query_string,
      os_segment *schema,
      os_boolean cache_query = 0,
      char *file_name = 0,
      os_unsigned_int32 line = 0
);

Creates a query object, possibly with free variables and function references. The query object can be used to create an os_bound_query. The arguments are the same as those for the previous version of create(), except the schema database is specified with a pointer to one of its segments.

static const os_coll_query &create(
      const char *element_type,
      const char *query_string,
      void *schema,
      os_boolean cache_query = 0,
      char *file_name = 0,
      os_unsigned_int32 line = 0
);

os_coll_query::create_exists()

static const os_coll_query &create_exists(
      const char *element_type,
      const char *query_string,
      os_database *schema_database,
      os_boolean cache_query = 0,
      char *file_name = 0,
      os_unsigned_int32 line = 0
);

Creates an existential query object, possibly with free variables and function references. The query object can be used to create an os_bound_query, which can then be executed with os_collection::exists(). The arguments are the same as those for os_coll_query::create(), except the schema database is specified with a pointer to its os_database.

static const os_coll_query &create_exists(
      const char *element_type,
      const char *query_string,
      os_segment *schema_database_segment,
      os_boolean cache_query = 0,
      char *file_name = 0,
      os_unsigned_int32 line = 0
);

Creates an existential query object, possibly with free variables and function references. The query object can be used to create an os_bound_query, which can then be executed with os_collection::exists(). The arguments are the same as those for the previous version of create_exists(), except the schema database is specified with a pointer to one of its segments.

static const os_coll_query &create_exists(
      const char *element_type,
      const char *query_string,
      void *schema_database_object,
      os_boolean cache_query = 0,
      char *file_name = 0,
      os_unsigned_int32 line = 0
);

Creates an existential query object, possibly with free variables and function references. The query object can be used to create an os_bound_query, which can then be executed with os_collection::exists(). The arguments are the same as those for the previous version of create_exists(), except the schema database is specified with a pointer to an object it contains.

os_coll_query::create_pick()

static const os_coll_query &create_pick(
      const char *element_type,
      const char *query_string,
      os_database *schema_database,
      os_boolean cache_query = 0,
      char *file_name = 0,
      os_unsigned_int32 line = 0
);

Creates a single-element query object, possibly with free variables and function references. The query object can be used to create an os_bound_query, which can then be executed with os_collection::query_pick(). The arguments are the same as those for os_coll_query::create().

static const os_coll_query &create_pick(
      const char *element_type,
      const char *query_string,
      os_segment *schema_database_segment,
      os_boolean cache_query = 0,
      char *file_name = 0,
      os_unsigned_int32 line = 0
);

static const os_coll_query &create_pick(
      const char *element_type,
      const char *query_string,
      void *schema_database_object,
      os_boolean cache_query = 0,
      char *file_name = 0,
      os_unsigned_int32 line = 0
);

os_coll_query::destroy()

static void destroy(const os_coll_query&);

Deletes the specified instance of os_coll_query. This is the same as calling delete for the os_coll_query object.

os_coll_query::get_element_type()

const char *get_element_type() const;

Returns a string naming the element type supplied when the specified os_coll_query was created.

os_coll_query::get_query_string()

const char *get_query_string() const;

Returns the query string supplied when the specified os_coll_query was created.

os_coll_query::get_file_name()

const char *get_file_name() const;

Returns the file name supplied when the specified os_coll_query was created.

os_coll_query::get_line_number()

os_unsigned_int32 get_line_number() const;

Returns the line number supplied when the specified os_coll_query was created.

os_coll_range

An instance of this class can be used to represent a selection criterion for collection elements. Each os_coll_range is associated with either a particular value or range of values. They can be used as argument to the os_Cursor constructor to create a restricted cursor, or as arguments to os_Dictionary::pick().

os_coll_range::os_coll_range()

The constructor for os_coll_range has several overloadings. Each overloading falls into one of the following two groups:

Overloadings that specify a lower bound only or an upper bound only (for example, "all values less than or equal to 7")
Overloadings that specify both a lower and upper bound on a range of values (for example, "all values greater than 4 and less than or equal to 7")

In each of these two groups, there is one overloading for each C++ fundamental type of value, and one for the type void*. To specify a range for any type of pointer value, use a void* overloading and pass a pointer to the value to serve as upper or lower bound.

Overloadings that specify a boundary only

os_coll_range(
      os_collection::restriction rel_op,
      unsigned char value
);
os_coll_range(
      os_collection::restriction rel_op,
      short value
);
os_coll_range(
      os_collection::restriction rel_op,
      os_signed_int8
);
os_coll_range(
      os_collection::restriction rel_op,
      unsigned short value
);
os_coll_range(
      os_collection::restriction rel_op,
      int value
);
os_coll_range(
      os_collection::restriction rel_op,
      unsigned int value
);
os_coll_range(
      os_collection::restriction rel_op,
      long value
);
os_coll_range(
      os_collection::restriction rel_op,
      float value
);
os_coll_range(
      os_collection::restriction rel_op,
      double value
);
os_coll_range(
      os_collection::restriction rel_op,
      long double value
);
os_coll_range(
      os_collection::restriction rel_op,
      const void* value
);

These construct an os_coll_range satisfied by all values that bear the relation rel_op to value. The argument rel_op should be coded as one of the following enumerators:

os_collection::EQ (equal to)
os_collection::NE (not equal to)
os_collection::LT (less than)
os_collection::LE (less than or equal to)
os_collection::GT (greater than)
os_collection::GE (greater than or equal to)

Overloadings that specify a range

os_coll_range(
      os_collection::restriction rel_op1,
      unsigned char value1,
      os_collection::restriction rel_op2,
      unsigned char value2);
os_coll_range(
      os_collection::restriction rel_op1,
      int value1,
      os_collection::restriction rel_op2,
      int value2);

os_coll_range(
      os_collection::restriction rel_op1,
      unsigned int value1,
      os_collection::restriction rel_op2,
      unsigned int value2
);
os_coll_range(
      os_collection::restriction rel_op1,
      short value1,
      os_collection::restriction rel_op2,
      short value2
);
os_coll_range(
      os_collection::restriction rel_op1,
      unsigned short value1,
      os_collection::restriction rel_op2,
      unsigned short value2
);
os_coll_range(
      os_collection::restriction rel_op1,
      os_signed_int8 value1,
      os_collection::restriction rel_op2,
      os_signed_int8 value2
);
os_coll_range(
      os_collection::restriction rel_op1, long value1,
      os_collection::restriction rel_op2, long value2
);
os_coll_range
      os_collection::restriction rel_op1,
      unsigned long value1,
      os_collection::restriction rel_op2,
      unsigned long value2
);
os_coll_range
      os_collection::restriction rel_op1,
      float value1,
      os_collection::restriction rel_op2,
      float value2
);
os_coll_range
      os_collection::restriction rel_op1,
      double value1,
      os_collection::restriction rel_op2,
      double value2
);
os_coll_range
      os_collection::restriction rel_op1,
      long double value1,
      os_collection::restriction rel_op2,
      long double value2
);
os_coll_range
      os_collection::restriction rel_op1,
      const void *value1,
      os_collection::restriction rel_op2,
      const void *value2
);

Each of these constructs an os_coll_range satisfied by all values that bear both the relation rel_op1 to value1 and the relation rel_op2 to value2. The arguments rel_op1 and rel_op2 should be one of the following enumerators:


Enumerator	Meaning
os_collection::EQ	Equal to
os_collection::NE	Not equal to
os_collection::LT	Less than
os_collection::LE	Less than or equal to
os_collection::GT	Greater than
os_collection::GE	Greater than or equal to

Examples

When the value type is char*, these relations are defined in terms of strcmp(). When the value type is a pointer to a user-defined class object, the user must supply rank/hash functions.

The following example is satisfied by all ints greater than 4 and less than or equal to 7.

os_coll_range( os_collection::GT, 4, os_collection::LE, 7 )

Do not specify the null range, for example,

os_coll_range( os_collection::LT, 4, os_collection::GT, 7 )

Do not specify a discontinuous range, for example,

os_coll_range( os_collection::GT, 4, os_collection::NE, 7 )

If you do, the exception err_am is signaled, and the following message is issued:

No handler for exception:
<maint-0023-0001>invalid restriction on unordered index (err_am)

os_coll_rep_descriptor

The class os_coll_rep_descriptor has no direct instances. Each instance is a direct instance of one of its subtypes:


os_chained_list_descriptor	os_ptr_bag_descriptor
os_ixonly_bc_descriptor	os_ptr_hash_descriptor
os_ixonly_descriptor	os_tinyarray_descriptor
os_packed_list_descriptor	os_ordered_ptr_hash_descriptor

Each instance has an associated cardinality range. In addition, each instance can contain a pointer to another os_coll_rep_descriptor. A list of descriptors linked together in this way designates a representation policy, a mapping from cardinality to representation type. How a collection's representation changes in response to cardinality changes is determined by the policy (if any) associated with that collection.

The types os_int32 and os_boolean, used throughout this manual, are each defined as a signed 32-bit integer type. The type os_unsigned_int32 is defined as an unsigned 32-bit integer type.

os_coll_rep_descriptor::allowed_behavior()

os_unsigned_int32 allowed_behavior() const;

Returns a bit-wise disjunction of enumerators indicating this representation's allowed behaviors. See os_Collection::create().

os_coll_rep_descriptor::copy()

os_coll_rep_descriptor &copy(os_segment*) const;

Creates a copy of the specified descriptor, allocated in the specified segment, and returns a reference to the copy.

os_coll_rep_descriptor::get_grow_rep_descriptor()

os_coll_rep_descriptor *get_grow_rep_descriptor() const;

Returns a pointer to the os_coll_rep_descriptor that becomes active when the cardinality increases past the growth threshold of the specified os_coll_rep_descriptor.

os_coll_rep_descriptor::get_max_size()

os_unsigned_int32 get_max_size() const;

Returns the maximum size of the specified descriptor.

os_coll_rep_descriptor::get_min_size()

os_unsigned_int32 get_min_size() const;

Returns the minimum size of the specified descriptor.

os_coll_rep_descriptor::rep_enum()

os_int32 rep_enum() const;

Returns an enumerator used to designate this representation type. See os_Collection::create().

os_coll_rep_descriptor::rep_name()

char *rep_name() const;

Returns the name of this representation type. It is the user's responsibility to deallocate the returned string when it is no longer needed.

os_coll_rep_descriptor::required_behavior()

os_unsigned_int32 required_behavior() const;

Returns a bit-wise disjunction of enumerators indicating this representation's required behaviors. See os_Collection::create().

os_Cursor

template <class E>

class os_Cursor : public os_cursor

An instance of this class serves to record the state of an iteration by pointing to the current element of an associated collection. A cursor's associated collection is specified when the cursor is created. The user can position the cursor in a relative fashion (using next() and previous()) or in absolute fashion (using first() and last()). The current element is retrieved using the positioning functions or retrieve().

You can allocate a cursor in either transient or persistent memory.

Every cursor has an associated ordering for the elements of its associated collection. This ordering can be the order in which elements appear in the collection (for ordered collections), an arbitrary order (for unordered collections), the order in which elements appear in persistent memory (see os_collection::order_by_address), or an order based on an attribute or path of the elements. In the last case, the order is specified by an os_index_path specified when the cursor is created.

If a cursor is positioned at a collection's last element (in the cursor's associated ordering) and next() is performed on it, the cursor becomes null. Similarly, if a cursor is positioned at a collection's first element (in the cursor's associated ordering) and previous() is performed on it, the cursor becomes null. In other words, a cursor becomes null when it is either advanced past the last element or positioned before the first element. The function os_cursor::more() returns a nonzero os_int32 (true) if the specified cursor is not null, and returns 0 (false) if it is null.

If a cursor is positioned at an element of a collection, and then that element is removed from the collection, the cursor becomes invalid. Repositioning such a cursor has undefined results, unless the flag os_cursor::safe was passed to the cursor constructor when the cursor was created, and the cursor's associated collection was created with os_collection::maintain_cursors behavior (see os_collection::create()). The function os_cursor::valid() returns nonzero (true) if the specified cursor is valid, and returns 0 (false) if it is invalid.

The states null and invalid are mutually exclusive.

For a safe cursor whose associated collection maintains cursors, an invalid cursor's position is defined in terms of the immediate successor, s, of the removed element just prior to removal: such a cursor's position immediately after the removal is between s and the immediate predecessor, p, of s. This means performing next() on the cursor moves the cursor to s, and performing previous() moves the cursor to p.

If an invalid cursor is between an element, s, and the predecessor of s, p, and then elements are inserted between p and s, the cursor is then positioned between s and the new immediate predecessor, p', of s.

In addition, whenever an invalid cursor is between an element, s, and its predecessor, p, removal of s results in repositioning the cursor so that it is between p and s's immediate successor, and removal of p results in repositioning the cursor so that it is between s and p's immediate predecessor.

A safe cursor whose associated collection maintains cursors has the following behavior during iteration:

Any element that has been removed and not yet visited will not be visited.
If the cursor's associated order is arbitrary, elements inserted during the iteration will be visited exactly once.
If the iteration order was specified by an os_index_path, elements inserted before the current cursor position will not be visited, while those inserted after will be visited.

The class os_Cursor is parameterized, with a parameter indicating the element type of the associated collection - if an attempt is made to associate a cursor with a collection whose element type does not match the cursor's parameter, a compile-time error results. (For the nonparameterized version of this class, see os_cursor.) This means that when specifying os_Cursor as a function's formal parameter, or as the type of a variable or data member, you must specify the parameter (the cursor's element type). This is accomplished by appending to os_Cursor the name of the element type enclosed in angle brackets, < >:

os_Cursor<element-type-name>

The parameter E occurs in the signatures of some of the functions described below. The parameter is used by the compiler to detect type errors.

Type definitions

The types os_int32 and os_boolean, used throughout this manual, are each defined as a signed 32-bit integer type. The type os_unsigned_int32 is defined as an unsigned 32-bit integer type.

os_Cursor::first()

E first();

Locates the specified cursor at the first element, in the cursor's associated ordering, of the cursor's associated collection. The first element is returned. If the collection is empty, the cursor is set to null and 0 is returned.

os_Cursor::insert_after()

void insert_after(const E p) const;

Inserts p into the cursor's associated collection immediately after the cursor's current location. If performed on a null cursor, err_coll_null_cursor is signaled. If the collection is an array, all elements after this one being inserted will be pushed down.

os_Cursor::insert_before()

void insert_before(const E p) const;

Inserts p into the cursor's associated collection immediately before the cursor's current location. If performed on a null cursor, err_coll_null_cursor is signaled. If the collection is an array, all elements after this one being inserted will be pushed down.

os_Cursor::last()

E last();

Locates the specified cursor at the last element, in the cursor's associated ordering, of the cursor's associated collection. The last element is returned. If the collection is empty, the cursor is set to null and 0 is returned.

os_Cursor::more()

os_int32 more();

Returns a nonzero os_int32 (true) if the specified cursor is not null, that is, if the cursor is located at an element of the specified set or is invalid. The function returns 0 (false) otherwise.

os_Cursor::next()

E next();

Advances the specified cursor to the immediate next element of the cursor's associated collection, according to the cursor's associated ordering. The next element is returned. If there is no next element, or if the set is empty, the cursor is set to null and 0 is returned. If the cursor is null, a run-time error is signaled.

os_Cursor::null()

os_int32 null();

Returns a nonzero os_int32 (true) if the specified cursor is null. The function returns 0 (false) if the cursor is located at an element of the specified set or is invalid. Inherited from os_cursor.

os_Cursor::os_Cursor()

os_Cursor<E> (
      const os_collection & coll,
      os_int32 options = os_cursor::unsafe
);

Constructs a cursor associated with coll. If the collection is not ordered, the cursor's associated order is arbitrary, unless option is os_collection::order_by_address, in which case the cursor's associated order is the order in which elements appear in persistent memory. If the collection is ordered and option is os_cursor::unsafe or os_cursor::safe, the cursor's associated order is the order in which elements appear in the collection.

If you update a collection while traversing it without using an update-insensitive or safe cursor, the results of the traversal are undefined.

If option is os_collection::order_by_address, the cursor's associated order is the order in which elements appear in persistent memory. If you dereference each collection element as you retrieve it, and the objects pointed to by collection elements do not all fit in the client cache at once, this order can dramatically reduce paging overhead. An order-by-address cursor is update insensitive.

If option is os_collection::update_insensitive, the collection supports updates to it during traversal. The traversal visits exactly the elements of the collection at the time the cursor was bound. No insertions or removals performed during the traversal are reflected in the traversal.

If option is os_cursor::unsafe, the cursor does not support updates to its associated collection during iteration.

If option is os_cursor::safe, and the cursor's associated collection has the behavior specified by os_collection::maintain_cursors, the cursor supports updates during iteration over its associated collection. It visits any elements inserted later in the traversal order, and does not visit any elements that are later in the traversal order that are removed.

If option is os_cursor::safe, and the cursor's associated collection does not have the behavior specified by os_collection::maintain_cursors, err_coll_not_supported is signaled.

os_cursor(
      const os_collection & coll,
      _Rank_fcn rfcn,
      os_int32 options = os_cursor::unsafe
);

An _Rank_fcn is a rank function for the element type of coll. Iteration using that cursor will follow the order determined by the specified rank function. Rank-function-based cursors are update insensitive.

os_Cursor<E> (
      const os_Collection<E> & coll,
      const os_index_path &path,
      os_int32 options = os_cursor::unsafe
);

Constructs a cursor associated with coll. The path specifies the cursor's associated order. If safety is os_cursor::unsafe, the cursor does not support updates to its associated collection during iteration. If safety is os_cursor::safe, and the cursor's associated collection has the behavior specified by os_collection::maintain_cursors, the cursor supports updates during iteration over its associated collection. If safety is os_cursor::safe, and the cursor's associated collection does not have the behavior specified by os_collection::maintain_cursors, err_coll_not_supported is signaled.

Upon creation of the first persistent, unsafe, ordered,or restricted cursor with a particular key type (where the key type is the specified path's terminal type), ObjectStore performs schema modification, provided the collection does not have an index on the specified path.

os_Cursor<E> (
      const os_Collection<E> & coll,
      const char *typename,
      os_int32 options = os_cursor::unsafe
);

typename is the name of the element type. Iteration using that cursor will follow the order determined by the element type's rank function. Rank-function-based cursors are update insensitive.

os_Cursor<E> (
      const os_Dictionary & coll,
      const os_coll_range &range,
      os_int32 options = os_cursor::unsafe
);

For traversing dictionaries. A traversal with this cursor visits only those collection elements whose key satisfies range. The order of iteration is arbitrary.

os_Cursor<E> (
      const os_Collection<E> & coll,
      const os_index_path &path,
      const os_coll_range &range,
      os_int32 options = os_cursor::unsafe
);

A traversal with this cursor visits only those collection elements that satisfy the cursor's restriction. An element satisfies the cursor's restriction if the result of applying path to the element satisfies range. The order of iteration is determined by os_index_path based on the index. If the index is not present, it is created.

You can construct a new cursor by copying with the following function, defined by the os_cursor class.

os_cursor (
      const os_cursor & c
);

os_Cursor::owner()

const os_collection *owner() const;

Returns a pointer to the specified cursor's associated collection. Inherited from os_cursor.

os_collection *owner();

Returns a pointer to the specified cursor's associated collection. Inherited from os_cursor.

os_Cursor::previous()

E previous();

Moves the specified cursor to the immediate previous element of the cursor's associated collection, according to the cursor's associated ordering. If there is no previous element, or if the collection is empty, the cursor is set to null and 0 is returned. If the cursor is null, a run-time error is signaled.

os_Cursor::rebind()

void rebind(const os_Collection<E>&);

Associates the specified cursor with the specified collection, positioning the cursor at the collection's first element.

void rebind(const os_collection &, _Rank_Fcn);

Associates the specified cursor with the specified collection, positioning the cursor at the collection's first element.

os_Cursor::remove_at()

void remove_at() const;

Removes that element of the cursor's associated collection at which the specified cursor is currently located. If performed on a null or invalid cursor, err_coll_null_cursor is signaled.

os_Cursor::retrieve()

E retrieve();

Returns the element of the specified cursor's associated collection at which the specified cursor is currently located. A run-time error is signaled if the cursor is not located at an element of the set.

os_Cursor::valid()

os_int32 valid();

Returns a nonzero os_int32 (true) if the specified cursor is null or is located at an element of the associated collection. The function returns 0 (false), if the cursor was located at an element that has been removed. Inherited from os_cursor.

os_Cursor::~os_Cursor()

void ~os_Cursor();

Breaks the association between the cursor and its associated collection.

os_cursor

You can allocate a cursor in either transient or persistent memory.

Upon creation of a persistent, unsafe, ordered cursor for which the collection does not have an index on the given path, a write lock is acquired on segment 0 that effectively locks the entire database.

If a cursor is positioned at an element of a collection, and then that element is removed from the collection, the cursor becomes invalid. Repositioning such a cursor has undefined results, unless the flag os_collection::safe was passed to the cursor constructor when the cursor was created, and the cursor's associated collection was created with maintain_cursors behavior (see os_collection::create()). The function os_cursor::valid() returns nonzero (true) if the specified cursor is valid, and returns 0 (false) if it is invalid.

Valid and invalid cursors

The states null and invalid are mutually exclusive.

For safe cursors whose associated collection maintains cursors, an invalid cursor's position is defined in terms of the immediate successor, s, of the removed element just prior to removal: such a cursor's position immediately after the removal is between s and the immediate predecessor of s, p. This means performing next() on the cursor moves the cursor to s, and performing previous() moves the cursor to p.

If an invalid cursor is between an element, s, and its predecessor, p, and elements are subsequently inserted between p and s, the cursor is then positioned between s and the new immediate predecessor of s.

In addition, whenever an invalid cursor is between an element, s, and its predecessor, p, removal of s results in repositioning the cursor so that it is between p and s's immediate successor. Similarly, removal of p results in repositioning the cursor so that it is between s and p's immediate predecessor.

A safe cursor whose associated collection maintains cursors has the following behavior during iteration:

Any element that has been removed and not yet visited will not be visited.
If the cursor's associated order is arbitrary, elements inserted during the iteration will be visited exactly once.
If the iteration order was specified by an os_index_path, elements inserted before the current cursor position will not be visited, while those inserted after will be visited.

Type definitions

The types os_int32 and os_boolean, used throughout this manual, are each defined as a signed 32-bit integer type. The type os_unsigned_int32 is defined as an unsigned 32-bit integer type.

os_cursor::first()

void *first();

Locates the specified cursor at the first element of the cursor's associated collection, according to the cursor's associated ordering. The first element is returned. If the collection is empty, the cursor is set to null and 0 is returned.

os_cursor::insert_after()

void insert_after(const void *p) const;

Inserts p into the cursor's associated collection immediately after the cursor's current location. If performed on a null cursor, err_coll_null_cursor is signaled.

os_cursor::insert_before()

void insert_before(const void *p) const;

Inserts p into the cursor's associated collection immediately before the cursor's current location. If performed on a null cursor, err_coll_null_cursor is signaled.

os_cursor::last()

void *last();

Locates the specified cursor at the last element of the cursor's associated collection, according to the cursor's associated ordering. The last element is returned. If the collection is empty, the cursor is set to null and 0 is returned.

os_cursor::more()

os_int32 more();

os_cursor::next()

void *next();

os_cursor::null()

os_int32 null();

Returns a nonzero os_int32 (true) if the specified cursor is null. The function returns 0 (false) if the cursor is located at an element of the specified set or is invalid.

os_cursor::os_cursor()

os_cursor(
      const os_collection & coll,
      os_int32 options = os_cursor::unsafe
);

Constructs a cursor associated with coll. If the collection is not ordered, the cursor's associated order is system-supplied, unless options is os_collection::order_by_address, in which case the cursor's associated order is the order in which elements appear in persistent memory. If the collection is ordered and options is os_cursor::unsafe or os_cursor::safe, the cursor's associated order is the order in which elements appear in the collection.

If you update a collection while traversing it without using an update-insensitive or safe cursor, the results of the traversal are undefined.

If options is os_collection::order_by_address, the cursor's associated order is the order in which elements appear in persistent memory. If you dereference each collection element as you retrieve it, and the objects pointed to by collection elements do not all fit in the client cache at once, this order can dramatically reduce paging overhead. An order-by-address cursor is update insensitive.

If options is os_collection::update_insensitive, the collection supports updates to it during traversal. The traversal visits exactly the elements of the collection at the time the cursor was bound. No insertions or removals performed during the traversal are reflected in the traversal.

If options is os_cursor::unsafe, the cursor does not support updates to its associated collection during iteration.

If options is os_cursor::safe, and the cursor's associated collection has the behavior specified by os_collection::maintain_cursors, the cursor supports updates during iteration over its associated collection. It visits any elements inserted later in the traversal order, and does not visit any elements that are later in the traversal order that are removed.

If options is os_cursor::safe, and the cursor's associated collection does not have the behavior specified by os_collection::maintain_cursors, err_coll_not_supported is signaled.

os_cursor(
      const os_collection & coll,
      const os_index_path &path,
      os_int32 options = os_cursor::unsafe
);

Constructs a cursor associated with coll. The path specifies the cursor's associated order. If options is os_cursor::unsafe, the cursor does not support updates to its associated collection during iteration. If options is os_cursor::safe, and the cursor's associated collection has the behavior specified by os_collection::maintain_cursors, the cursor supports updates during iteration over its associated collection. If options is os_cursor::safe, and the cursor's associated collection does not have the behavior specified by os_collection::maintain_cursors, err_coll_not_supported is signaled.

Upon creation of the first persistent, unsafe, ordered, or restricted cursor with a particular key type (where the key type is the specified path's terminal type), provided the collection does not have an index on the specified path.

os_cursor(
      const os_collection & coll,
      const char *typename,
      os_int32 options = os_cursor::unsafe
);

typename is the name of the element type as argument. Iteration using that cursor will follow the order determined by the element type's rank function.

os_cursor(
      const os_collection & coll,
      _Rank_fcn rnk,
      os_int32 options = os_cursor::unsafe
);

An _Rank_fcn is a rank function for the element type of coll. Iteration using that cursor will follow the order determined by the specified rank function.

os_cursor(
      const os_collection & coll,
      const os_index_path &path,
      const os_coll_range &range,
      os_int32 options = os_cursor::unsafe
);

Upon creation of a persistent, unsafe, ordered cursor for which the collection does not have an index on the given path, ObjectStore performs schema modification, which effectively write-locks the entire database.

os_cursor(
      const os_dictionary & coll,
      const os_coll_range &range,
      os_int32 options = os_cursor::unsafe
);

For traversing dictionaries. A traversal with this cursor visits only those collection elements whose key satisfies range. The order of iteration is arbitrary.

Copying a cursor

os_cursor (
      const os_cursor & c
);

Constructs a new cursor by copying the contents of the cursor specified by c.

os_cursor::owner()

const os_collection *owner() const;

Returns a pointer to the specified cursor's associated collection.

os_collection *owner();

Returns a pointer to the specified cursor's associated collection.

os_cursor::previous()

void *previous();

os_cursor::rebind()

void rebind(os_collection&);

Associates the specified cursor with the specified collection, positioning the cursor at the collection's first element.

void rebind(const os_collection&);

Associates the specified cursor with the specified collection, positioning the cursor at the collection's first element.

os_cursor::remove_at()

void remove_at() const;

Removes that element of the cursor's associated collection at which the specified cursor is currently located. If performed on a null or invalid cursor, err_coll_null_cursor is signaled.

os_cursor::retrieve()

void *retrieve();

os_cursor::valid()

os_int32 valid();

os_cursor::~os_cursor()

void ~os_cursor();

Breaks the association between the cursor and its associated collection.

os_Dictionary

template <class K, class E>

class os_Dictionary<K, E> : public os_Collection<E>

Like bags, dictionaries are unordered collections that allow duplicate elements. Unlike bags, however, dictionaries associate a key with each element. The key can be a value of any C++ fundamental type or user-defined class. If the key is a pointer it must be a void*. When you insert an element into a dictionary, you specify the key along with the element. You can retrieve an element with a given key or retrieve those elements whose keys fall within a given range. os_Dictionary inherits from os_collection.

os_rDictionary is just like os_Dictionary, except that it records its elements using references (as do os_vdyn_hash and os_vdyn_bag), which eliminates address space reservation and can reduce relocation overhead. See os_rDictionary for a description of this class.

Dictionaries are always implemented as B-trees or hash tables, so lookup of elements based on their keys is efficient.

If you use persistent dictionaries, you must call the macro OS_MARK_DICTIONARY() in your source file for each key-type/element-type pair that you use. If you are using only transient dictionaries, call the macro OS_TRANSIENT_DICTIONARY() in your source file.

The element type of any instance of os_Dictionary must be a pointer type.

Create collections with the member create() or, for stack-based or embedded collections, with a constructor. Do not use new to create collections.

Requirements

Requirements for classes used as keys are listed below.

Types used as keys also need a public operator=.
For integer keys, specify one of the following as the key type:
For class keys, the class must have a destructor, and if the class contains any pointers, they must be zeroed out.
You must define and register (using os_index_key) rank/hash functions for the class type.

Use the type void* for pointer keys other than char* keys.

For char[] keys, use the parameterized type os_char_array<S>, where the actual parameter is an integer literal indicating the size of the array in bytes.

The key type char* is treated as a class whose rank and hash functions are defined in terms of strcmp() or strcoll(). For example:

a_dictionary.pick("Smith")

returns an element of a_dictionary whose key is the string "Smith" (that is, whose key, k, is such that strcmp(k, "Smith") is 0).

If a dictionary's key type is char* and it is ordered, the dictionary makes its own copies of the character array upon insert. If the key type is char* and the dictionary has the behavior maintain_key_order, it will point to the string rather than making a copy of it. If the dictionary does not allow duplicate keys you can significantly improve performance by using the type os_char_star_nocopy as the key type. With this key type, the dictionary copies the pointer to the array and not the array itself. You can freely pass char*s to this type.

Note that you cannot use os_char_star_nocopy with dictionaries that allow duplicate keys.

Although it is possible to set up an os_Cursor on an os_Dictionary, you cannot set up a safe cursor that allows insertions/removals during the iteration. That is, os_Dictionary does not support the behavior os_collection::maintain_cursors.

Required header files

Any program using dictionaries must include the header files <ostore/ostore.hh> followed by <ostore/coll.hh>. In addition your program will require the inclusion of <ostore/coll/dict_pt.hh> or <ostore/coll/dict_pt.cc>.

If your program instantiates a template, include dict_pt.cc at the point where you instantiate the template. If you are using the template, but not instantiating it, include dict_pt.hh. Since dict_pt.cc includes dict_pt.hh, you do not need both. You have to include dict_pt.cc because it contains the bodies of the functions declared in dict_pt.hh.

Required libraries

Programs that use dictionaries must link with the library file oscol.lib (UNIX platforms) or oscol.ldb (Windows platforms).

Below are two tables. The first table lists the member functions that can be performed on instances of os_Dictionary. The second table lists the enumerators inherited by os_Dictionary from os_collection. Many functions are also inherited by os_Dictionary from os_Collection or os_collection. The full explanation of each inherited function or enumerator appears in the entry for the class from which it is inherited. The full explanation of each function defined by os_Dictionary appears in this entry, after the tables. In each case, the Defined By column gives the class whose entry contains the full explanation.

Name Arguments Returns Defined By
add_index
( const os_index_path&, os_int32 = unordered, os_segment* = 0 ) ( const os_index_path&, os_int32 = unordered, os_database* = 0 ) ( const os_index_path&, os_segment* = 0 ) ( const os_index_path&, os_database* = 0 )
void void void void
os_collection

cardinality
( ) const
os_unsigned_int32
os_collection

change_behavior
( os_unsigned_int32 behavior, os_int32 = verify )
void
os_collection

clear
( )
void
os_collection

contains
( const K &key_ref, const E element ) const ( const K *key_ptr, const E element ) const
os_int32 os_int32
os_Dictionary

count
( const E ) const
os_int32
os_Collection

count_values
( const K &key_ref ) const ( const K * key_ptr ) const
os_int32 os_unsigned_int32
os_Dictionary

create (static)
( os_database *db, os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior = 0 ) ( os_segment *seg, os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior = 0 ) ( os_object_cluster *clust, os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior = 0 ) ( os_object_cluster *proximity, os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior = 0 )
os_Dictionary <K,E>& os_Dictionary <K,E>& os_Dictionary <K,E>& os_Dictionary <K,E>&
os_Dictionary

default_behavior (static)
( )
os_unsigned_int32
os_Dictionary

destroy (static)
( os_Dictionary<K, E>& )
void
os_Dictionary

drop_index
( const os_index_path& )
void
os_collection

empty
( )
os_int32
os_collection

exists
( char *element_type_name, char *query_string, os_database *schema_database = 0, char *file, os_unsigned_int32 line ) const ( const os_bound_query& ) const
os_int32 os_int32
os_collection

get_behavior
( ) const
os_unsigned_int32
os_collection

has_index
( const os_index_path&, os_int32 index_options ) const
os_int32
os_collection

insert
( const K &key_ref, const E element ) ( const K *key_ptr, const E element )
void void
os_Dictionary

only
( ) const
E
os_Collection

os_Dictionary
( os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior = 0 )

os_Dictionary

pick
( const os_coll_range& ) const ( const K &key_ref ) const ( const K *key_ptr ) const ( ) const
E E E E
os_Dictionary

query
( char *element_type_name, char *query_string, os_database *schema_database = 0, char *file-name = 0, os_unsigned_int32 line = 0, os_boolean dups ) const ( const os_bound_query&, os_boolean dups ) const

os_Collection<E>& os_Collection<E>&
os_Collection

query_pick
( char *element_type_name, char *query_string, os_database *schema_database = 0, char* filename = 0, os_unsigned_int32 line = 0 ) const ( const os_bound_query& ) const
E E
os_Dictionary

remove
( const K &key_ref, const E element ) ( const K *key_ptr, const E element )
void void
os_Dictionary

remove_value
( const K &key_ref, const E os_unsigned_int32 n = 1 ) ( const K *key_ptr, os_unsigned_int32 n = 1 )
E E
os_Dictionary

retrieve
( const os_cursor& ) const
E
os_Dictionary

retrieve_key
( const os_cursor& )
K*
os_Dictionary

os_Dictionary enumerators

The following table lists enumerators for the os_Dictionary class.


Name	Inherited From
allow_nulls	os_collection
associate_policy	os_collection
dont_associate_policy	os_collection
dont_verify	os_collection
EQ	os_collection
GT	os_collection
LT	os_collection
maintain_cursors	os_collection
maintain_key_order	os_Dictionary
maintain_order	os_collection
pick_from_empty_returns_null	os_collection
no_dup_keys	os_Dictionary
signal_cardinality	os_collection
signal_dup_keys	os_Dictionary
signal_duplicates	os_collection
unordered	os_collection
verify	os_collection

os_Dictionary::change_behavior()

change_behavior(os_unsigned_int_32 behavior);

Changes the behavior of the specified collection.

Take 1

behavior is a bit pattern, the bit-wise disjunction (using the operator |) of enumerators indicating all the desired properties for the changed collection. The enumerators are

os_collection::allow_nulls
os_collection::signal_duplicates
os_collection::signal_cardinality
os_collection::pick_from_empty_returns_null

When you change a collection so that it no longer allows null insertions, you might want to check to see if nulls are already present.

Take 2

You can customize the behavior of new dictionaries with regard to these last three properties. You do this by supplying a behavior argument to create(), an unsigned 32-bit integer, a bit pattern indicating the collection's properties. The bit pattern is obtained by forming the bit-wise disjunction (using bit-wise or, |) of enumerators taken from the following possibilities:

os_collection::pick_from_empty_returns_null: Performing pick() on an empty dictionary returns 0 rather than raising an exception.
os_dictionary::signal_dup_keys: Duplicate keys are not allowed; err_am_dup_key is signaled if an attempt is made to establish two or more elements with the same key.
os_dictionary::maintain_key_order: Range lookups are supported using pick() or restricted cursors.

These are instances of an enumeration defined in the scope of the os_Dictionary. Each enumerator is associated with a different bit, and including an enumerator in the disjunction sets its associated bit.

You can turn these behaviors on and off throughout the dictionary's lifetime. See os_collection::change_behavior().

os_Dictionary::contains()

os_boolean contains(const K &key_ref, const E element) const;

Returns nonzero (true) if this contains an entry with the specified element and the key referred to by key_ref. If there is no such entry, 0 (false) is returned. This overloading of contains() differs from the overloading following only in that the key is specified with a reference instead of a pointer.

os_boolean contains(const K *key_ptr, const E element) const;

Returns nonzero (true) if this contains an entry with the specified element and the key pointed to by key_ptr. If there is no such entry, 0 (false) is returned. This overloading of contains() differs from the preceding overloading only in that the key is specified with a pointer instead of a reference.

os_Dictionary::count_values()

os_unsigned_int32 count_values(const K &key_ref) const;

Returns the number of entries in this with the key referred to by key_ref. This overloading of count_values() differs from the overloading following only in that the key is specified with a reference instead of a pointer.

os_unsigned_int32 count_values(const K *key_ptr) const;

Returns the number of entries in this with the key pointed to by key_ptr. This overloading of count_values() differs from the preceding overloading only in that the key is specified with a pointer instead of a reference.

os_Dictionary::create()

static os_Dictionary<K, E> &create(
      os_database *db,
      os_unsigned_int32 expected_cardinality = 10,
      os_unsigned_int32 behavior_enums = 0
);

Creates a new dictionary in the database pointed to by db. If the transient database is specified, the dictionary is allocated in transient memory. K can be a basic type, a pointer, or a class type. If the key type is a class type, the class's rank/hash functions must be registered with the os_index_key macro.

db: This is one of four overloadings of create(). As with the create operations for the other types of collections, these overloadings differ only in the first argument, which specifies where to allocate the new dictionary. Depending on the overloading, it specifies a database, segment, or object cluster.

expected_cardinality: Unlike the create operations for other collection classes, there are no arguments relating to representation policies. This is because you cannot directly control the representation for dictionaries.

By default, dictionaries are presized with a representation suitable for cardinality 10. If you want a new dictionary presized for a different cardinality, supply the expected_cardinality argument explicitly.

behavior: Every dictionary has the following properties:

Its entries have no intrinsic order.
Duplicate elements are allowed.
Null pointers cannot be inserted.
No guarantees are made concerning whether an element inserted or removed during a traversal of its elements will be visited later in that same traversal.

By default a new dictionary also has the following properties:

Performing pick() on an empty dictionary raises err_coll_empty.
Duplicate keys are allowed; that is, two or more elements can have the same key.
Range lookups are not supported; that is, key order is not maintained.

os_collection::pick_from_empty_returns_null: Performing pick() on an empty dictionary returns 0 rather than raising an exception.
os_dictionary::signal_dup_keys: Duplicate keys are not allowed; err_am_dup_key is signaled if an attempt is made to establish two or more elements with the same key.
os_dictionary::maintain_key_order: Range lookups are supported using pick() or restricted cursors.

You can turn these behaviors on and off throughout the dictionary's lifetime. See os_collection::change_behavior().

For large dictionaries that maintain key order, there is also an option for reducing contention. With os_collection::dont_maintain_cardinality behavior, insert() and remove() do not update cardinality information, avoiding contention in the collection header. This can significantly improve performance for large dictionaries subject to contention. The disadvantage of this behavior is that cardinality() is an O(n) operation, requiring a scan of the whole dictionary. See the following members of os_collection(): os_collection::cardinality_is_maintained(), os_collection::cardinality_estimate(), and os_collection::update_cardinality().

Unlike the create operations for other collection classes, there are no arguments relating to representation. This is because you cannot directly control the representation for dictionaries. You can, however, use the class os_rDictionary instead of os_Dictionary. The former class is just like os_Dictionary, except that it records its elements using references (as do os_vdyn_hash and os_vdyn_bag), which can eliminate address space reservation and can reduce relocation overhead. See the description of os_rDictionary.

static os_Dictionary<K, E> &create(
      os_segment *seg,
      os_unsigned_int32 expected_cardinality = 10,
      os_unsigned_int32 behavior = 0
);

Creates a new dictionary in the segment pointed to by seg. If the transient segment is specified, the dictionary is allocated in transient memory.

This is one of four overloadings of create(). As with the create operations for the other types of collections, these overloadings differ only in the first argument, which specifies where to allocate the new dictionary. Depending on the overloading, it specifies a database, segment, or object cluster.

The rest of the arguments are just as described previously for the first overloading of this function.

static os_Dictionary<K, E> &create(
      os_object_cluster *clust,
      os_unsigned_int32 expected_cardinality = 10,
      os_unsigned_int32 behavior = 0
);

Creates a new dictionary in the object cluster pointed to by clust.

The rest of the arguments are just as described previously for the first overloading of this function.

static os_Dictionary<K, E> &create(
      os_object_cluster *proximity,
      os_unsigned_int32 expected_cardinality = 10,
      os_unsigned_int32 behavior = 0
);

Creates a new dictionary in the segment occupied pointed to by proximity. If the object is part of an object cluster, the new dictionary is allocated in that cluster. If the specified object is transient, the array is allocated in transient memory. The rest of the arguments are just as described previously for the first overloading of this function.

os_Dictionary::default_behavior()

static unsigned long default_behavior ();

Returns a bit pattern indicating this type's default behavior, which includes allowing duplicates and allowing nulls. See the enumerators os_collection::allow_duplicates and os_collection::allow_nulls.

os_Dictionary::destroy()

static void destroy(os_Dictionary<K, E>&);

Deletes the specified collection and deallocates associated storage. This is the same as calling delete() on the dictionary.

os_Dictionary::insert()

void insert(const K &key_ref, const E element);

Inserts the specified element with the key referred to by key_ref. This overloading of insert() differs from the overloading following only in that the key is specified with a reference instead of a pointer.

Each insertion increases the collection's cardinality by 1 and increases by 1 the count (or number of occurrences) of the inserted element in the collection, unless the dictionary already contains an entry that matches both the key and the element (in which case the insert is silently ignored).

If you insert a null pointer (0), the exception err_coll_nulls is signaled.

For dictionaries with signal_dup_keys behavior, if an attempt is made to insert something with the same key as an element already present, err_am_dup_key is signaled.

void insert(const K *key_ptr, const E element);

Inserts the specified element with the key pointed to by key_ptr. This overloading of insert() differs from the above overloading only in that the key is specified with a pointer instead of a reference. See the documentation for the preceding overloading.

os_Dictionary::os_Dictionary()

os_Dictionary(
      os_unsigned_int32 expected_cardinality = 10,
      os_unsigned_int32 behavior = 0
);

Use the dictionary constructor only to create stack-based dictionaries, or dictionaries embedded within other objects. See os_Dictionary::create(), above.

os_Dictionary::pick()

E pick(const os_coll_range&) const;

Returns an element of this that satisfies the specified os_coll_range. If there is more than one such element, an arbitrary one is picked and returned. If there is no such element, 0 is returned. If the dictionary is empty, err_coll_empty is signaled. If the dictionary has behavior pick_from_empty_returns_null, calling os_Dictionary::pick() on an empty dictionary returns 0.

E pick(const K &key_ref) const;

Returns an element of this that has the value of the key referred to by the value of key_ref. If there is more than one such element, an arbitrary one is picked and returned. If there is no such element, 0 is returned. If the dictionary is empty, err_coll_empty is signaled. If the dictionary has behavior pick_from_empty_returns_null, calling os_Dictionary::pick() on an empty dictionary returns 0.

E pick(const K *key_ptr) const;

Returns an element of this that has the value of the key pointed to by key_ptr. If there is more than one such element, an arbitrary one is picked and returned. If there is no such element, 0 is returned. If the dictionary is empty, err_coll_empty is signaled. If the dictionary has behavior pick_from_empty_returns_null, calling os_Dictionary::pick() on an empty dictionary returns 0.

E pick() const;

Picks an arbitrary element of this and returns it. If the dictionary is empty, err_coll_empty is signaled, unless the collection's behavior includes os_collection::pick_from_empty_returns_null, in which case 0 is returned.

os_Dictionary::query()

???Returns an os_collection.

os_Dictionary::query_pick()

E query_pick(
      char *element_type,
      char *query_string,
      os_database *schema_database = 0,
      char *file_name = 0,
      os_unsigned_int32 line = 0
) const;

Returns an element of this that satisfies the specified query_string. See the documentation of query_string for os_Collection::query().

If there is no such element or the dictionary is empty, 0 is returned.

The argument element_type is the name of the element type of this. Names established through the use of typedef are not allowed.

The schema_database is a database whose schema contains all the types mentioned in query_string. This database provides the environment in which the query is analyzed and optimized. The database in which the collection resides is often appropriate.

void *query_pick(const os_bound_query&) const;

Returns an element of this that satisfies the specified bound query. If there is no such element or the dictionary is empty, 0 is returned. If there is no such element and the dictionary does not have pick_from_empty_returns_null behavior, err_coll_empty is signaled.

os_Dictionary::remove()

void remove(const K &key_ref, const E element);

Removes the dictionary entry with the element element at the value of the key referred to by key_ref. This overloading of remove() differs from the next overloading only in that the key is specified with a reference instead of a pointer. If removing this element leaves no other elements at this key value, the key is removed and deleted.

If there is no such entry, the dictionary remains unchanged. If there is such an entry, the collection's cardinality decreases by 1 and the count (or number of occurrences) of the removed element in the collection decreases by 1.

void remove(const K *key_ptr, const E element);

Removes the dictionary entry with the element element and the key referred to by key_ref. This overloading of remove() differs from the preceding overloading only in that the key is specified with a pointer instead of a reference. If removing this element leaves no other elements at this key value, the key is removed and deleted. See the documentation for the previous overloading.

os_Dictionary::remove_value()

E remove_value(const K &key_ref, os_unsigned_int32 n = 1);

Removes n dictionary entries with the value of the key referred to by key_ref. If there are fewer than n, all entries in the dictionary with that key are removed. If there is no such entry, the dictionary remains unchanged.

This overloading of remove_value() differs from the next overloading only in that the key is specified with a reference instead of a pointer.

For each entry removed, the collection's cardinality decreases by 1 and the count (or number of occurrences) of the removed element in the collection decreases by 1. If removing this element leaves no other elements at this key value, the key is removed and deleted.

void remove_value(const K *key_ptr, os_unsigned_int32 n = 1);

Removes n dictionary entries with the value of the key pointed to by key_ptr. This overloading of insert() differs from the preceding overloading only in that the key is specified with a pointer instead of a reference. If removing this element leaves no other elements at this key value, the key is removed and deleted. See the documentation for the previous overloading.

os_Dictionary::retrieve()

E retrieve(const os_cursor&) const;

Returns the element of this at which the specified cursor is located. If the cursor is null, err_coll_null_cursor is signaled. If the cursor is invalid, err_coll_illegal_cursor is signaled.

os_Dictionary::retrieve_key()

const K *retrieve_key(const os_cursor&) const;

Returns a pointer to a dictionary key. Do not modify the key being pointed to. Like all collections functions that take cursor arguments, this function works only with vanilla cursors. A vanilla cursor is any cursor that was not created with a cursor option, index path, rank function, or an os_coll_range.

os_dynamic_extent

Derived from os_Collection, an instance of this class can be used to create an extended collection of all objects of a particular type, regardless of which segments the objects reside in. All objects are retrieved in an arbitrary order that is stable across traversals of the segments, as long as no objects are created or deleted from the segment, and no reorganization is performed (using schema evolution or compaction).

os_dynamic_extent is useful for joining together multiple collections of the same object type into a new collection. The new collection is created dynamically, which results in no additional storage consumption.

You iterate over the os_dynamic_extent collection by creating an associated instance of os_cursor. Only the os_cursor::more, os_cursor::first, and os_cursor::next functions are supported by os_dynamic_extent. You can create an index for the os_dynamic_extent collection by calling add_index(); however, creating an index requires additional storage.

os_dynamic_extent::os_dynamic_extent()

os_dynamic_extent(
      os_database * db,
      os_typespec * typespec
);

Constructs an os_dynamic_extent that associates all objects of os_typespec that exist in the specified os_database. This constructor should be used only for transient instances of os_dynamic_extent.

os_dynamic_extent(
      os_typespec * typespec,
      os_boolean options = os_dynamic_extent::all_segments
);

Constructs an os_dynamic_extent that associates all objects of os_typespec. This constructor assumes that the os_dynamic_extent is persistent and searches the database where the os_dynamic_extent resides. If the option is os_dynamic_extent::all_segments, all segments are searched. The alternative option is os_dynamic_extent::of_segment, which searches only the segment in which the os_dynamic_extent is allocated.

os_dynamic_extent(
      os_database * db,
      os_typespec* typespec,
      os_segment* seg
);

Constructs an os_dynamic_extent that associates only those objects of os_typespec that exist in the specified os_database and os_segment. This constructor should be used only for transient instances of os_dynamic_extent.

os_dynamic_extent::insert()

void insert(const void*);

Adds the specified void* to the index for the current os_dynamic_extent collection. You must first create an index by calling os_dynamic_extent::add_index(). See os_collection::add_index().

os_dynamic_extent::remove()

os_int32 remove(const void*);

Removes the specified void* from the os_dynamic_extent collection index.

If the index is ordered, the first occurrence of the specified void* is removed. Returns a nonzero os_int32 if an element was removed; returns 0 otherwise.

os_dynamic_extent::~os_dynamic_extent()

~os_dynamic_extent();

Performs internal maintenance associated with os_dynamic_extent deallocation.

os_index_name

An instance of this class encapsulates information about a particular index. Functions are provided for retrieving a string representation of the index's associated path and a bit pattern indicating the index's associated options. See also os_collection::get_indexes(), which returns a collection of os_index_names.

os_index_name::get_options()

os_int32 get_options();

Returns a bit pattern indicating the index options associated with the index named by this.

os_index_name::get_path_name()

char *get_path_name();

Returns a string representation of the path associated with the index named by this. The caller is responsible for freeing the memory pointed to by the return value.

os_index_path

Instances of the class os_index_path are used in specifying iteration order, as well as in specifying index keys to enable query optimization.

Each path specifies a certain kind of mapping by specifying a sequence of member names. Applying the mapping is equivalent to accessing a data member, applying a member function, or accessing a data member of a data member, and so on.

For example, suppose the type employee defines a data member department, whose values are pointers to instances of a type that defines a data member manager. Then a path might be specified with the path_string "department->manager". This path maps pointers to instances of employee to the manager of the given employee's department.

Path expressions have some additional expressive power. They can indicate iterative retrieval of the elements of path results that are collections. For example, consider specifying a key for an index that optimizes lookup of a part based on the emp_id of any of the responsible_engineers for the part (suppose that the member responsible_engineers is collection valued). You can use the path created by the following call:

      os_index_path::create(
            "part*","responsible_engineers[]->emp_id", db1)

Here the data member name "responsible_engineers" is followed by the symbols [], indicating that the next component of the path (emp_id) is to be applied to each element of the collection of responsible engineers, rather than to the collection itself.

os_index_path::create()

static os_index_path &create(
      const char *element_type_string,
      const char *path_string,
      const os_database*
);

Creates a transient heap-allocated os_index_path.

The element_type_string, known as the path's type string, is a string consisting of the name of the element type of collections whose elements can serve as path starting points. Names created with a typedef cannot be used.

The path_string consists of a sequence of member names, separated by dots or arrows.

Given a path string, path-string, ending in a member function name, you can form a path string whose values are the results of dereferencing the result of path-string this way:

" *(parent-> theChild() ) "
      *(path-string)

The parentheses are not necessary if the original path string specifies a single-step path.

You cannot specify a dereferenced data member at the end of a path string. For example, you cannot specify

      " *(parent->child) "

      " * Foo "

A collection-valued path followed by a pair of brackets [] forms a multivalued path whose values are the collection's elements. To indicate element retrieval (using []) from a nonparameterized collection, the part of the path designating the collection must be preceded by a cast to os_Collection<E>, where E is the collection's element type os_collection.

The value type of a data member referred to in a path expression must be a built-in type, a class, or a pointer to a built-in type or class. The type person**, for example, is not allowed.

If an illegal path_string is supplied, err_illegal_index_path is signaled.

Data members mentioned in the path_string, except const and collection-valued members, must be indexable if there is any possibility of their being updated when participating in an index.

For applications that use member functions, see "Member function in a query string". In addition, when you create an index path that ends in a member function, the member function should return something that is either a basic type, a pointer to a persistent object, or a class object that will be copied into the index.

An application must supply a rank function (see Chapter 5, User-Supplied Functions, in ObjectStore C++ API Reference) for a class type, T, if the application uses a path ending in T as an index key or to specify iteration order. An application must supply a hash function (see Chapter 5, User-Supplied Functions, in ObjectStore C++ API Reference) for a class, T, if the application uses a path ending in T as a key for an unordered index.

The os_database* is a database whose schema contains the classes defining the members mentioned in the path_string.

Once the path generated by create() is no longer needed, you should deallocate with ::operator delete() to avoid memory leaks.

static os_index_path &create(
      const char *element_type_string,
      const char *path_string,
      const os_segment*
);

Creates a transient heap-allocated os_index_path. Same as the preceding version of create(), except that the os_segment* indicates a segment in a database whose schema contains the classes defining the members mentioned in the path_string.

static os_index_path &create(
      const char *element_type_string,
      const char *path_string,
      const void*
);

Creates a transient heap-allocated os_index_path. Same as the preceding version of create(), except that the void* indicates an object in a database whose schema contains the classes defining the members mentioned in the path_string.

os_index_path::destroy()

static void destroy(os_index_path&);

Deletes the specified path. This is the same as deleting the os_index_path.

os_keyword_arg

An instance of this class is used to specify the binding of a free reference in an os_coll_query. An os_keyword_arg or os_keyword_arg_list (see os_keyword_arg_list) is used together with an os_coll_query to create an os_bound_query. Each os_keyword_arg associates a variable name with a value of the appropriate type.

os_keyword_arg::operator ,()

os_keyword_arg_list &operator ,(const os_keyword_arg
arg&)const;

Returns a reference to an os_keyword_arg_list whose elements are the instances of os_keyword_arg referred to by this and arg. The comma operator of this class and os_keyword_arg_list is overloaded in such a way that you can designate a keyword_arg_list with an expression of the following form:

      (
             keyword_arg-expr,
             keyword_arg-expr,
             ... ,
             keyword_arg-expr
      )

os_keyword_arg::os_keyword_arg()

os_keyword_arg(
      const char *name,
      os_signed_int8 value
);

Constructs an os_keyword_arg that binds the char-valued variable specified by name to value.

os_keyword_arg(
      const char *name ,
      unsigned char value
);

Constructs an os_keyword_arg that binds the unsigned char-valued variable specified by name to value.

os_keyword_arg(
      const char *name,
      short value
);

Constructs an os_keyword_arg that binds the short-valued variable specified by name to value.

os_keyword_arg(
      const char *name,
      unsigned short value
);

Constructs an os_keyword_arg that binds the unsigned short-valued variable specified by name to value.

os_keyword_arg(
      const char *name,
      int value
);

Constructs an os_keyword_arg that binds the int-valued variable specified by name to value.

os_keyword_arg(
      const char *name,
      unsigned int value
);

Constructs an os_keyword_arg that binds the unsigned int-valued variable specified by name to value.

os_keyword_arg(
      const char *name,
      long value
);

Constructs an os_keyword_arg that binds the long-valued variable specified by name to value.

os_keyword_arg(
      const char *name,
      unsigned long value
);

Constructs an os_keyword_arg that binds the unsigned long-valued variable specified by name to value.

os_keyword_arg(
      const char *name,
      float value
);

Constructs an os_keyword_arg that binds the float-valued variable specified by name to value.

os_keyword_arg(
      const char *name,
      double value
);

Constructs an os_keyword_arg that binds the double-valued variable specified by name to value.

os_keyword_arg(
      const char *name,
      long double value
);

Constructs an os_keyword_arg that binds the long double-valued variable specified by name to value.

os_keyword_arg(
      const char *name,
      void* value
);

Constructs an os_keyword_arg that binds the void*-valued variable specified by name to value and void*.

os_keyword_arg(
      const char *name,
      const void* value
);

Constructs an os_keyword_arg that binds the const void*-valued variable specified by name to value and void*.

os_keyword_arg_list

An instance of this class is used to specify the binding of free variables in an os_coll_query. An os_keyword_arg_list or os_keyword_arg (see os_keyword_arg) is used together with an os_coll_query to create an os_bound_query. Each os_keyword_arg_list associates a variable name with a value of the appropriate type.

os_keyword_arg_list::operator ,()

os_keyword_arg_list &operator ,(const os_keyword_arg&);

Returns a reference to an os_keyword_arg_list whose elements are the elements of this together with the specified os_keyword_arg. The comma operator of this class and os_keyword_arg is overloaded in such a way that you can designate an os_keyword_arg_list with an expression of the following form:

      (
             keyword_arg-expr,
             keyword_arg-expr,
             ... ,
             keyword_arg-expr
      )

os_keyword_arg_list::os_keyword_arg_list()

os_keyword_arg_list(
      const os_keyword_arg&,
      const os_keyword_arg_list* = 0
);

Constructs an os_keyword_arg_list whose elements are the specified os_keyword_arg together with the elements of the specified os_keyword_arg_list. This constructor allows conversion of an os_keyword_arg to a single-element os_keyword_arg_list. This is useful when calling the os_bound_query constructor. For example:

os_bound_query bq(my_coll_query, os_keyword_arg(age, 5));

Between this constructor, the comma operator of this class, and the comma operator of os_keyword_arg, it should never be necessary for you to reference an os_keyword_arg_list explicitly.

os_List

template <class E>

class os_List : public os_Collection<E>

A list is an ordered collection. As with other ordered collections, list elements can be inserted, removed, replaced, or retrieved based on a specified numerical index or based on the position of a specified cursor.

By default, lists are ordered, allow duplicates, and disallow null elements.

If an element is inserted or removed from an os_List, all other elements are either pushed up or down with respect to their ordinal index in the list.

The class os_List is parameterized, with a parameter for constraining the type of values allowable as elements (for the nonparameterized version of this class, see os_list). This means that when specifying os_List as a function's formal parameter, or as the type of a variable or data member, you must specify the parameter (the list's element type). This is accomplished by appending to os_List the name of the element type enclosed in angle brackets, < >:

os_List< element-type-name>

The element type parameter, E, occurs in the signatures of some of the functions described below. The parameter is used by the compiler to detect type errors.

The element type of any instance of os_List must be a pointer type.

Create collections with the member create() or, for stack-based or embedded collections, with a constructor. Do not use new to create collections.

os_List enumerators

The following table lists the enumerators inherited by os_List from os_collection.


Name	Inherited From
allow_duplicates	os_collection
allow_nulls	os_collection
associate_policy	os_collection
dont_associate_policy	os_collection
dont_verify	os_collection
EQ	os_collection
GT	os_collection
LT	os_collection
maintain_cursors	os_collection
maintain_order	os_collection
order_by_address	os_collection
pick_from_empty_returns_null	os_collection
signal_cardinality	os_collection
signal_duplicates	os_collection
unordered	os_collection
verify	os_collection

os_List::create()

static os_List<E> &create (
      os_database *db,
      os_unsigned_int32 behavior       = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new list in the database pointed to by db. If the transient database is specified, the list is allocated in transient memory.

The behavior is a bit pattern, the bit-wise disjunction (using the operator |) of enumerators indicating the desired behaviors. The enumerators are

os_collection::allow_nulls
os_collection::allow_duplicates
os_collection::signal_duplicates
os_collection::pick_from_empty_returns_null
os_collection::maintain_cursors
os_collection::be_an_array

See the class os_collection for an explanation of each enumerator.

The specified behaviors supplement the default behaviors for lists. If 0 is supplied for behavior, only the default behaviors are enabled. The default behavior is given by

      os_collection::maintain_order | os_collection::allow_duplicates

A run-time error is signaled if an attempt is made to create a list that is not ordered.

Representation policy

The default representation policy for lists created with create() is as follows:

A list created as an embedded object has the representation of os_tiny_array (0 to 4 elements).
An embedded list becomes out of line and mutates to an os_chained_list when the fifth element is inserted.
A list created with ::create with cardinality <= 20 is represented as an os_chained_list.
Once the list grows past 20, its representation is os_packed_list.

Additional behaviors

An os_List can also have these behaviors:

pick_from_empty_returns_null
signal_duplicates
allow_nulls
maintain_cursors

static os_List<E> &create (
      os_segment * seg,
      os_unsigned_int32 behavior       = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new list in the segment pointed to by seg. If the transient segment is specified, the list is allocated in transient memory. The rest of the arguments are just as described previously.

static os_List<E> &create (
      os_object_cluster *clust,
      os_unsigned_int32 behavior       = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new list in the object cluster pointed to by clust. The rest of the arguments are just as described previously.

static os_List<E> &create(
      void * proximity,
      os_unsigned_int32 behavior       = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new list in the segment occupied by the object pointed to by proximity. If the object is part of an object cluster, the new list is allocated in that cluster. If the specified object is transient, the list is allocated in transient memory. The rest of the arguments are just as described previously.

os_List::default_behavior()

static os_unsigned_int32 default_behavior();

Returns a bit pattern indicating this type's default behavior, which is maintain_order and allow_duplicates.

os_List::destroy()

static void destroy(os_List<E>&);

Deletes the specified collection and deallocates associated storage. This is the same as deleting the list.

Assignment Operator Semantics

Note: The assignment operator semantics are described in the next section in terms of insert operations into the target collection. Describing the semantics in terms of insert operations serves to illustrate how duplicate, null, and order semantics are enforced. The actual implementation of the assignment might be quite different, while still maintaining the associated semantics.

os_List::operator =()

os_List<E> &operator =(const os_List<E> &s);

Copies the contents of the collection s into the target collection and returns the target collection. The copy is performed by effectively clearing the target, iterating over the source collection (in order), and inserting each element into the target collection. The target collection semantics are enforced as usual during the insertion process.

os_List<E> &operator =(const os_Collection<E> &s);

Copies the contents of the collection s into the target collection and returns the target collection. The copy is performed by effectively clearing the target, iterating over the source collection (in order), and inserting each element into the target collection. The target collection semantics are enforced as usual during the insertion process.

os_List<E> &operator =( const E e);

Clears the target collection, inserts the element e into the target collection, and returns the target collection.

os_List::operator |=()

os_List<E> &operator |=(const os_Collection<E> &s);

Inserts the elements contained in s into the target collection, and returns the target collection.

os_List<E> &operator |=(const E e);

Inserts the element e into the target collection, and returns the target collection.

os_List::operator &=()

os_List<E> &operator &=(const os_Collection<E> &s);

For each element in the target collection, reduces the count of the element in the target to the minimum of the counts in the source and target collections. It does so by retaining the appropriate number of leading elements. It returns the target collection.

os_List<E> &operator &=(const E e);

If e is present in the target, converts the target into a collection containing just the element e. Otherwise, it clears the target collection. It returns the target collection.

os_List::operator -=()

os_List<E> &operator -=(const os_Collection<E> &s);

For each element in the collection s, removes s.count(e) occurrences of the element from the target collection. The first s.count(e) elements are removed. It returns the target collection.

os_List<E> &operator -=(const E e);

Removes the element e from the target collection. The first occurrence of the element is removed from the target collection. It returns the target collection.

os_List::os_List()

os_List();

Returns an empty list.

os_List(os_collection_size);

The user should pass an os_int32 for the os_collection_size actual argument. Returns an empty list whose initial implementation is based on the expectation that the specified os_int32 indicates the approximate usual cardinality of the list, once it has been loaded with elements.

os_List(const os_List<E>&);

Returns a list that results from assigning the specified list to an empty list.

os_List(const os_Collection<E>&);

Returns a list that results from assigning the specified collection to an empty list.

os_list

class os_list : public os_collection

The class os_list is nonparameterized. For the parameterized version of this class, see os_List.

By default, lists allow duplicates and disallow null elements.

The element type of any instance of os_list must be a pointer type.

Create collections with the member create() or, for stack-based or embedded collections, with a constructor. Do not use new to create collections.

Behavior

The behavior is a bit pattern, the bit-wise disjunction (using the operator |) of enumerators indicating the desired properties. The enumerators are
os_collection::allow_nulls
os_collection::allow_duplicates
os_collection::signal_duplicates
os_collection::pick_from_empty_returns_null
os_collection::maintain_cursors
os_collection::be_an_array

See the class os_collection for an explanation of each enumerator.

The specified behaviors supplement the default behaviors for lists. If 0 is supplied for behavior, only the default behaviors are enabled. The default behavior is given by

      os_collection::maintain_order | os_collection::allow_duplicates

A run-time error is signaled if an attempt is made to create a list that is not ordered.

Below are two tables. The first table lists the member functions that can be performed on instances of os_list. The second table lists the enumerators inherited by os_list from os_collection. The full explanation of each inherited function or enumerator appears in the entry for the class from which it is inherited. The full explanation of each function defined by os_list appears in this entry, after the tables. In each case, the Defined By column gives the class whose entry contains the full explanation.


Name	Arguments	Returns	Defined By
add_index	( const os_index_path&, os_int32 = unordered, os_segment* = 0 ) ( const os_index_path&, os_int32 = unordered, os_database* = 0 ) ( const os_index_path&, os_segment* = 0 ) ( const os_index_path&, os_database* = 0 )	void void void void	os_collection
cardinality	( ) const	os_int32	os_collection
change_behavior	( os_unsigned_int32 behavior, os_int32 = verify )	void	os_collection
change_rep	( os_unsigned_int32 expected_size, const os_coll_rep_descriptor *policy = 0, os_int32 retain = dont_associate_policy )	void	os_collection
clear	( )	void	os_collection
contains	( const void* ) const		os_collection
count	( const void* ) const	os_int32
create (static)	( os_segment seg, os_unsigned_int32 behavior = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor = 0, os_int32 retain = dont_associate_policy )	os_list	os_list
	( os_database db, os_unsigned_int32 behavior = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor = 0, os_int32 retain = dont_associate_policy )	os_list
	( os_object_cluster clust, os_unsigned_int32 behavior = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor = 0, os_int32 retain = dont_associate_policy )	os_list
	( void* proximity, os_unsigned_int32 behavior = 0, os_int32 expected_size = 0, const os_coll_rep_descriptor* = 0, os_int32 retain = dont_associate_policy )	os_list
default_behavior (static)	( )	os_unsigned_int32	os_set
destroy (static)	( os_list& )	void	os_list
drop_index	( const os_index_path& )	void	os_collection
empty	( )	os_int32	os_collection
exists	( char element_type_name, char query_string, os_database schema_database = 0, char file, os_unsigned_int32 line ) const ( const os_bound_query& ) const	os_int32 os_int32	os_collection
get_behavior	( ) const	os_unsigned_int32	os_collection
get_rep	( ) const	os_coll_rep_ descriptor&	os_collection
has_index	( const os_index_path&, os_int32 index_options = unordered ) const	os_int32	os_collection
insert	( const void* )	void	os_collection
insert_after	( const void, const os_cursor& ) ( const void, os_unsigned_int32 )	void void	os_collection
insert_before	( const void, const os_cursor& ) ( const void, os_unsigned_int32 )	void void	os_collection
insert_first	( const void* )	void	os_Collection
insert_last	( const void* )	void	os_Collection
only	( ) const	void*	os_Collection
operator os_bag&	( )		os_collection
operator const os_bag&	( ) const		os_collection
operator os_set&	( )		os_collection
operator const os_set&	( ) const		os_collection
operator ==	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator !=	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator <	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator <=	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator >	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator >=	( const os_collection& ) const ( const void* ) const	os_int32 os_int32	os_collection
operator =	( const os_list& ) const ( const os_collection& ) const ( const void* ) const	os_list& os_list& os_list&	os_list
operator \|=	( const os_collection& ) const ( const void* ) const	os_list& os_list&	os_list
operator \|	( const os_collection& ) const ( const void* ) const	os_collection os_collection	os_list
operator &=	( const os_collection& ) const (const void*) const	os_list& os_list&	os_list
operator &	( const os_collection& ) const ( const void* ) const	os_collection os_collection	os_list
operator -=	( const os_collection& ) const ( const void* ) const	os_list& os_list&	os_list
operator -	( const os_collection& ) const ( const void* ) const	os_collection os_collection	os_list
os_list	( ) ( os_collection_size expected_size ) ( const os_list& ) ( const os_collection& )		os_list
pick	( ) const ( const os_index_path&, const os_coll_range& ) const	void* void*	os_collection
query	( char element_type_name, char query_string, os_database schema_database = 0, char filename = 0, os_unsigned_int32 line, os_boolean dups ) const ( const os_bound_query&, os_boolean dups ) const	os_collection& os_collection&	os_collection
query_pick	( char element_type_name, char query_string, os_database schema_database = 0, char file, os_unsigned_int32 line ) const ( const os_bound_query& ) const	void* void*	os_collection
remove	( const void* )	os_int32	os_collection
remove_at	( const os_cursor& ) ( os_unsigned_int32 )	void void	os_collection
remove_first	( const void*& ) ( )	os_int32 void*	os_collection
remove_last	( const void*& ) ( )	os_int32 void*	os_collection
replace_at	( const void, const os_cursor& ) ( const void, os_unsigned_int32 )	void* void*	os_collection
retrieve	( os_unsigned_int32 ) const ( const os_cursor& ) const	void* void*	os_collection
retrieve_first	( ) const ( const void*& ) const	void* os_int32	os_collection
retrieve_last	( ) const ( const void*& ) const	void* os_int32	os_collection

os_list enumerators

The following table lists the enumerators inherited by os_list from os_collection.


Name	Inherited From
allow_duplicates	os_collection
allow_nulls	os_collection
associate_policy	os_collection
dont_associate_policy	os_collection
dont_verify	os_collection
EQ	os_collection
GT	os_collection
LT	os_collection
maintain_cursors	os_collection
maintain_order	os_collection
order_by_address	os_collection
pick_from_empty_returns_null	os_collection
signal_cardinality	os_collection
signal_duplicates	os_collection
unordered	os_collection
verify	os_collection

os_list::create()

static os_list &create (
      os_database *db,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new list in the database pointed to by db. If the transient database is specified, the list is allocated in transient memory.

The behavior is a bit pattern, the bit-wise disjunction (using the operator |) of enumerators indicating the desired properties. The enumerators are

os_collection::allow_nulls
os_collection::allow_duplicates
os_collection::signal_duplicates
os_collection::pick_from_empty_returns_null
os_collection::maintain_cursors
os_collection::be_an_array

See the class os_collection for an explanation of each enumerator.

The specified behaviors supplement the default behaviors for lists. If 0 is supplied for behavior, only the default behaviors are enabled. The default behavior is given by

      os_collection::maintain_order | os_collection::allow_duplicates

A run-time error is signaled if an attempt is made to create a list that is not ordered.

static os_list &create(
      os_segment * seg,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new list in the segment pointed to by seg. If the transient segment is specified, the list is allocated in transient memory. The rest of the arguments are just as described previously.

static os_list &create(
      os_object_cluster *clust,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new list in the object cluster pointed to by clust. The rest of the arguments are just as described previously.

static os_list &create(
      void * proximity,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

os_list::default_behavior()

static os_unsigned long default_behavior();

Returns a bit pattern indicating this type's default behavior. The default behavior is to maintain order and allow duplicates.

os_list::destroy()

static void destroy(os_list&);

Deletes the specified collection and deallocates associated storage.

os_list::operator =()

os_list &operator =(const os_collection &s);
os_list &operator = (const os_list &s);

os_list &operator =(const void *e);

Clears the target collection, inserts the element e into the target collection, and returns the target collection.

os_list::operator |=()

os_list &operator |=(const os_collection &s);

Inserts the elements contained in s into the target collection and returns the target collection.

os_list &operator |=(const void *e);

Inserts the element e into the target collection and returns the target collection.

os_list::operator |()

os_collection &operator |(const os_collection &s) const;

Copies the contents of this into a new collection, c, and then performs c |= s. The new collection, c, is then returned. If either operand allows duplicates or nulls, the result does. The result does not maintain cursors or signal duplicates.

os_collection &operator |(const void *e) const;

Copies the contents of this into a new collection, c, and then performs c |= s. The new collection, c, is then returned. If this allows duplicates or nulls, the result does. The result does not allow nulls, maintain cursors, or signal duplicates.

os_list::operator &=()

os_list &operator &=(const os_collection &s);

os_list &operator &=(const void *e);

If e is present in the target, converts the target into a collection containing just the element e. Otherwise, it clears the target collection. It returns the target collection.

os_list::operator &()

os_collection &operator &(const os_collection &s) const;

Copies the contents of this into a new collection, c, and then performs c &= s. The new collection, c, is then returned. If either operand allows duplicates or nulls, the result does. The result does not maintain cursors or signal duplicates.

os_collection &operator &(const void *e) const;

Copies the contents of this into a new collection, c, and then performs c &= e. The new collection, c, is then returned. If this allows duplicates, the result does. If this allows nulls, the result does. The result does not maintain cursors or signal duplicates.

os_list::operator -=()

os_list &operator -=(const os_collection &s);

For each element in the collection s, removes s.count(e) occurrences of the element from the target collection. The first s.count(e) elements are removed. It returns the target collection.

os_list &operator -=(const void *e);

Removes the element e from the target collection. The first occurrence of the element is removed from the target collection. It returns the target collection.

os_list::operator -()

os_collection &operator -(const os_collection &s) const;

Copies the contents of this into a new collection, c, and then performs c -= s. The new collection, c, is then returned. If either operand allows duplicates or nulls, the result does. If s is ordered, the result is. The result does not maintain cursors or signal duplicates.

os_collection &operator -(const void *e) const;

Copies the contents of this into a new collection, c, and then performs c -= s. The new collection, c, is then returned. If this allows duplicates or nulls, the result does. The result does not maintain cursors or signal duplicates.

os_list::os_list()

os_list();

Returns an empty list.

os_list(os_collection_size);

os_list(const os_list&);

Returns a list that results from assigning the specified list to an empty list.

os_list(const os_collection&);

Returns a list that results from assigning the specified collection to an empty list.

os_rDictionary

template <class K, class E, class R>

class os_rDictionary<K, E, R> :

Dictionaries are unordered collections that allow duplicate elements and associate a key with each element. The key can be a value of any C++ fundamental type or user-defined class. If the key is a pointer, it must not be of the type void *. When you insert an element into a dictionary, you specify the key along with the element. You can retrieve an element with a given key or retrieve those elements whose keys fall within a given range.

Unlike the create operations for other collection classes, there are no arguments relating to representation in the os_Dictionary class. To control the representation for dictionaries, you use the class os_rDictionary, which records its elements as references. Using references can eliminate address space reservation and reduce relocation overhead.

The set of functions in the os_rDictionary class is identical to the set for os_Dictionary, with the difference that in addition to the key type and element type parameters, functions of the class os_rDictionary have a reference type parameter whose value must be an ObjectStore reference types.

Persistent and transient dictionaries

If you use persistent dictionaries, you must call the macro OS_MARK_RDICTIONARY() in your schema source file for each key-type/element-type/os_reference type triplet that you use. If you are using only transient dictionaries, call the macro OS_TRANSIENT_RDICTIONARY() in your source file.

Required header files

Programs that use the class os_rDictionary must include these header files: <ostore/ostore.hh> followed by <ostore/coll.hh> and <ostore/coll/rdict_pt.hh>. <ostore/coll/rdict_pt.cc> must be included in any source file that instantiates an os_rDictionary.

For os_rDictionary, the key can be a value of any C++ fundamental type or user-defined class. When you insert an element into a dictionary, you specify the key along with the element and reference type. You can retrieve an element with a given key or retrieve those elements whose keys fall within a given range.

The element type of any instance of os_rDictionary must be a pointer type.

The reference type of any instance of os_rDictionary must be os_reference.

Classes used as keys

Requirements for classes used as keys are listed below.

Types used as keys must have a no-arg constructor.
The no-arg constructor should not allocate anything.
Types used as keys also need a public operator= and copy constructor.

These requirements apply to os_rDictionaries that do not have the maintain_key_order flag set at creation time. If the maintain_key_order flag is on, ObjectStore does not run any user code when manipulating keys.

For class keys, the class must have a destructor.

Integer keys

For integer keys, specify one of the following as the key type:

os_int32 (a signed 32-bit integer)
os_unsigned_int32 (an unsigned 32-bit integer)
os_int16 (a signed 16-bit integer)
os_unsigned_int16 (an unsigned 16-bit integer)

Use the type void* for pointer keys other than char* keys.

For char[] keys, use the parameterized type os_char_array<S>, where the actual parameter is an integer literal indicating the size of the array in bytes.

The key type char* is treated as a class whose rank and hash functions are defined in terms of strcmp() or strcoll(). For example:

a_dictionary.pick("Smith")

returns an element of a_dictionary whose key is the string "Smith" (that is, whose key, k, is such that strcmp(k, "Smith") is 0).

If a dictionary's key type is char* and it is unordered,the dictionary makes its own copies of the character array upon insert. If the key type is char* and the dictionary has the behavior maintain_key_order, then it will point to the string rather than making a copy of it.

If the dictionary does not allow duplicate keys, you can significantly improve performance by using the type os_char_star_nocopy as the key type. With this key type the dictionary copies the pointer to the array and not the array itself. You can freely pass char*s to this type.

Note that you cannot use os_char_star_nocopy with dictionaries that allow duplicate keys.

Although it is possible to set up an os_Cursor on an os_rDictionary, you cannot iterate through it while you are doing insertions and removals from the os_rDictionary (safe cursor). That is, os_rDictionary does not support the behavior os_collection::maintain_cursors.

Below are two tables. The first table lists the member functions that can be performed on instances of os_rDictionary. The second table lists the enumerators used by os_rDictionary. Many functions and enumerators are inherited by os_rDictionary from internal collection classes. The full explanation of each inherited function or enumerator appears in the documentation for os_collection or os_Collection, as specified. The full explanation of each function and enumerator defined by os_rDictionary appears in this entry, after the tables. In each case, the Defined By column gives the class whose entry contains the full explanation.

Name Arguments Returns Defined By
add_index
( const os_index_path&, os_int32 = unordered, os_segment* = 0 ) ( const os_index_path&, os_int32 = unordered, os_database* = 0 ) ( const os_index_path&, os_segment* = 0 ) ( const os_index_path&, os_database = 0 )
void void void void
os_collection

cardinality
( ) const
os_unsigned_int32
os_collection

change_ behavior
( os_unsigned_int32 behavior_ enums, os_int32 = verify )
void
os_collection

clear
( )
void
os_collection

contains
( const E element ) ( const K &key_ref, const E element ) const ( const K *key_ptr, const E element ) const
os_boolean os_boolean
os_Collection os_rDictionary

count
( const E ) const
os_int32
os_Collection

count_values
( const K &key_ref ) const ( const K * key_ptr ) const
os_int32 os_unsigned_int32
os_Dictionary

create (static)
( os_segment *seg, os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior_enums = 0 ) ( os_database *db, os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior_enums = 0 ) ( os_object_cluster *clust, os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior_enums = 0 ) ( os_object_cluster *proximity, os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior_enums = 0 )
os_rDictionary
<K,E,R>& os_Dictionary
<K,E,R>& os_Dictionary
<K,E,R>& os_Dictionary
<K,E,R>&
os_rDictionary

default_ behavior (static)
( )
os_unsigned_int32
os_Dictionary

destroy (static)
( os_rDictionary<K, E.R>& )
void
os_Dictionary

drop_index
( const os_index_path& )
void
os_collection

empty
( )
os_int32
os_collection

exists
( char *element_type_name, char *query_string, os_database *schema_database = 0, char *file, os_unsigned_int32 line ) const ( const os_bound_query& ) const
os_int32 os_int32
os_collection

get_behavior
( ) const
os_unsigned_int32
os_collection

has_index
( const os_index_path&, os_int32 index_options = 0 ) const
os_int32
os_collection

insert
( const K &key_ref, const E element ) ( const K *key_ptr, const E element )
void void
os_rDictionary

only
( ) const
E
os_Collection

os_Dictionary
( os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior = 0 )

os_rDictionary

pick
( const os_coll_range& ) const ( const K &key_ref ) const ( const K *key_ptr ) const ( ) const
E E E E
os_rDictionary

query
( char *element_type_name, char *query_string, os_database *schema_database = 0, char *filename = 0, os_unsigned_int32 line = 0, os_boolean dups = query_dont_preserve_duplicates ) const ( const os_bound_query& , os_boolean dups = query_dont_preserve_duplicates ) const
os_Collection<E>& os_Collection<E>&
os_Collection

query_pick
( char *element_type_name, char *query_string, os_database *schema_database = 0, char *filename = 0, os_unsigned_int32 line = 0) const ( const os_bound_query& ) const
E jelm E
os_Collection

remove
( const K &key_ref, const E element ) ( const K *key_ptr, const E element )
void void
os_rDictionary

remove_value
( const K &key_ref, const E os_unsigned_int32 n = 1 ) ( const K *key_ptr, os_unsigned_int32 n = 1 )
E E
os_rDictionary

retrieve
( const os_cursor& ) const
E
os_rDictionary

retrieve_key
( const os_cursor& )
K*
os_rDictionary

Name	Arguments	Returns	Defined By
add_index	( const os_index_path&, os_int32 = unordered, os_segment* = 0 ) ( const os_index_path&, os_int32 = unordered, os_database* = 0 ) ( const os_index_path&, os_segment* = 0 ) ( const os_index_path&, os_database = 0 )	void void void void	os_collection
cardinality	( ) const	os_unsigned_int32	os_collection
change_ behavior	( os_unsigned_int32 behavior_ enums, os_int32 = verify )	void	os_collection
clear	( )	void	os_collection
contains	( const E element ) ( const K &key_ref, const E element ) const ( const K *key_ptr, const E element ) const	os_boolean os_boolean	os_Collection os_rDictionary
count	( const E ) const	os_int32	os_Collection
count_values	( const K &key_ref ) const ( const K * key_ptr ) const	os_int32 os_unsigned_int32	os_Dictionary
create (static)	( os_segment seg, os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior_enums = 0 ) ( os_database db, os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior_enums = 0 ) ( os_object_cluster clust, os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior_enums = 0 ) ( os_object_cluster proximity, os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior_enums = 0 )	os_rDictionary <K,E,R>& os_Dictionary <K,E,R>& os_Dictionary <K,E,R>& os_Dictionary <K,E,R>&	os_rDictionary
default_ behavior (static)	( )	os_unsigned_int32	os_Dictionary
destroy (static)	( os_rDictionary<K, E.R>& )	void	os_Dictionary
drop_index	( const os_index_path& )	void	os_collection
empty	( )	os_int32	os_collection
exists	( char element_type_name, char query_string, os_database schema_database = 0, char file, os_unsigned_int32 line ) const ( const os_bound_query& ) const	os_int32 os_int32	os_collection
get_behavior	( ) const	os_unsigned_int32	os_collection
has_index	( const os_index_path&, os_int32 index_options = 0 ) const	os_int32	os_collection
insert	( const K &key_ref, const E element ) ( const K *key_ptr, const E element )	void void	os_rDictionary
only	( ) const	E	os_Collection
os_Dictionary	( os_unsigned_int32 expected_card = 10, os_unsigned_int32 behavior = 0 )		os_rDictionary
pick	( const os_coll_range& ) const ( const K &key_ref ) const ( const K *key_ptr ) const ( ) const	E E E E	os_rDictionary
query	( char element_type_name, char query_string, os_database schema_database = 0, char filename = 0, os_unsigned_int32 line = 0, os_boolean dups = query_dont_preserve_duplicates ) const ( const os_bound_query& , os_boolean dups = query_dont_preserve_duplicates ) const	os_Collection<E>& os_Collection<E>&	os_Collection
query_pick	( char element_type_name, char query_string, os_database schema_database = 0, char filename = 0, os_unsigned_int32 line = 0) const ( const os_bound_query& ) const	E jelm E	os_Collection
remove	( const K &key_ref, const E element ) ( const K *key_ptr, const E element )	void void	os_rDictionary
remove_value	( const K &key_ref, const E os_unsigned_int32 n = 1 ) ( const K *key_ptr, os_unsigned_int32 n = 1 )	E E	os_rDictionary
retrieve	( const os_cursor& ) const	E	os_rDictionary
retrieve_key	( const os_cursor& )	K*	os_rDictionary

os_rDictionary enumerators

The following table lists enumerators for the os_rDictionary class.


Name	Inherited From
allow_nulls	os_collection
associate_policy	os_collection
dont_associate_policy	os_collection
dont_verify	os_collection
EQ	os_collection
GT	os_collection
LT	os_collection
maintain_cursors	os_collection
maintain_key_order	os_rDictionary
maintain_order	os_collection
pick_from_empty_returns_null	os_collection
no_dup_keys	os_rDictionary
signal_cardinality	os_collection
signal_dup_keys	os_rDictionary
signal_duplicates	os_collection
unordered	os_collection
verify	os_collection

os_rDictionary::contains()

os_boolean contains(const K &key_ref, const E element) const;

Returns nonzero (true) if this contains an entry with the specified element and the key referred to by key_ref. If there is no such entry, 0 (false) is returned. This overloading of contains() differs from the next overloading only in that the key is specified with a reference instead of a pointer.

os_boolean contains(const K *key_ptr, const E element) const;

Returns nonzero (true) if this contains an entry with the specified element and the key pointed to by key_ptr. If there is no such entry, 0 (false) is returned. This overloading of contains() differs from the previous overloading only in that the key is specified with a pointer instead of a reference.

os_rDictionary::count_values()

os_unsigned_int32 count_values(const K &key_ref) const;

Returns the number of entries in this with the key referred to by key_ref. This overloading of count_values() differs from the next overloading only in that the key is specified with a reference instead of a pointer.

os_unsigned_int32 count_values(const K *key_ptr) const;

Returns the number of entries in this with the key pointed to by key_ptr. This overloading of count_values() differs from the previous overloading only in that the key is specified with a pointer instead of a reference.

os_rDictionary::create()

static os_rDictionary<K, E, R> &create(
      os_database *db,
      os_unsigned_int32 expected_cardinality = 10,
      os_unsigned_int32 behavior_enums = 0
);

Creates a new dictionary in the database pointed to by db. If the transient database is specified, the dictionary is allocated in transient memory. K can be either a pointer, a basic type, or a class type. R is always os_reference.

This is one of three overloadings of create(). As with the create operations for the other types of collections, these overloadings differ only in the first argument, which specifies where to allocate the new dictionary. Depending on the overloading, it specifies a database, segment, or object cluster.

Usage note

For os_rDictionary::create(), the cardinality and behavior arguments are the third and fourth arguments to the function. This differs from os_collection::create(), where the behavior argument precedes the expected size argument.

db: The database to which the new dictionary will be allocated.

If the key type is a class type, then the rank/hash functions for this type must be defined and registered through the os_index_key() macro.

behavior_enums: Every dictionary has the following properties:

Its entries have no intrinsic order.
Duplicate elements are allowed.
Null pointers cannot be inserted.
No guarantees are made concerning whether an element inserted or removed during a traversal of its elements will be visited later in that same traversal.

By default a new dictionary also has the following properties:

Performing pick() on an empty dictionary raises an err_coll_empty exception.
Duplicate keys are allowed; that is, two or more elements can have the same key.
Range lookups are not supported; that is, key order is not maintained.

os_collection::pick_from_empty_returns_null: Performing pick() on an empty dictionary returns 0 rather than raising an exception.
os_dictionary::signal_dup_keys: Duplicate keys are not allowed; err_am_dup_key is signaled if an attempt is made to establish two or more elements with the same key.
os_dictionary::maintain_key_order: Range lookups are supported using pick() or restricted cursors.

For example:

os_rDictionary<K,E,R>::default_behavior(), or
os_rDictionary<K,E,R>::create
      (db,n,os_collection::pick_from_empty_returns_null)

These enumerators are instances of an enumeration defined in the scope of the os_rDictionary. Each enumerator is associated with a different bit, and including an enumerator in the disjunction sets its associated bit.

You can change the behavior pick_from_empty_returns_null after an os_rDictionary has been created. See os_collection::change_behavior().

For large dictionaries that maintain key order, there is also an option for reducing contention. With os_collection::dont_maintain_cardinality behavior, insert() and remove() do not update cardinality information, avoiding contention in the collection header. This can significantly improve performance for large dictionaries subject to contention. The disadvantage of this behavior is that cardinality() is an O(n) operation, requiring a scan of the whole dictionary. See the following members of os_collection:

os_collection::cardinality_is_maintained()

os_collection::cardinality_estimate()

os_collection::update_cardinality()

static os_rDictionary<K, E, R> &create(
      os_segment *seg,
      os_unsigned_int32 expected_cardinality = 10,
      os_unsigned_int32 behavior = 0
);

Creates a new dictionary in the segment pointed to by seg. If the transient segment is specified, the dictionary is allocated in transient memory.

The rest of the arguments are just as described previously for the first overloading of this function.

static os_rDictionary<K, E, R> &create(
      os_object_cluster *clust,
      os_unsigned_int32 expected_cardinality = 10,
      os_unsigned_int32 behavior = 0
);

Creates a new dictionary in the os_object_cluster pointed to by clust.

The rest of the arguments are just as described previously for the first overloading of this function.

os_rDictionary::destroy()

static void destroy(os_rDictionary<K, E, R>& c);

Deletes the specified collection and deallocates associated storage.

This function has the same effect as deleting the os_rDictionary object.

os_rDictionary::insert()

void insert(const K &key, const E element)

Inserts the specified element with the key referred to by key_ref. This overloading of insert() differs from the next overloading only in that the key is specified with a reference instead of a pointer.

For os_rDictionary <K,E,R>::insert the element is automatically converted to an os_reference so that the pointer is not stored in the os_rDictionary.

If you insert a null pointer (0), the exception err_coll_nulls is signaled.

For dictionaries with signal_dup_keys behavior, if an attempt is made to insert something with the same key as an element already present, err_am_dup_key is signaled.

void insert(const K *key, const E element)

Inserts the specified element with the key pointed to by key_ptr. This overloading of insert() differs from the preceding overloading of insert() only in that the key is specified with a pointer instead of a reference.

os_rDictionary::os_rDictionary()

os_rDictionary(
      os_unsigned_int32 expected_cardinality = 10,
      os_unsigned_int32 behavior = 0
);

Use the dictionary constructor only to create stack-based dictionaries, or dictionaries embedded within other objects. See os_Dictionary::create() for more information on creating ObjectStore dictionaries.

os_rDictionary::pick()

E pick(const os_coll_range&) const;

Returns an element of this that satisfies the specified os_coll_range. Even though the os_rDictionary contains elements that are stored as os_references, this function converts the os_reference element to a pointer and returns a pointer. The dictionary must be created with maintain_key_order to support pick() with os_coll_range.

If there is more than one such element, an arbitrary one is picked and returned. If there is no such element, 0 is returned.

E pick(const K &key_ref) const;

Returns an element of this that has the key referred to by key_ref. The value of the object referred to by key_ref is used for the test.

If there is more than one such element, an arbitrary one is picked and returned. If there is no such element, 0 is returned. If the dictionary is empty and has pick_from_empty_returns_null behavior, 0 is returned. If the dictionary is empty and does not have pick_from_empty_returns_null behavior, err_coll_empty is signaled.

E pick(const K *key_ptr) const;

Returns an element of this that has the key with the same value as *key_ptr.

E pick() const;

Picks an arbitrary element of this and returns it.

If the dictionary is empty and has pick_from_empty_returns_null behavior, 0 is returned. If the dictionary is empty and does not have pick_from_empty_returns_null behavior, err_coll_empty is signaled.

os_rDictionary::query()

os_rDictionary::query_pick()

E query_pick(
      char *element_type,
      char *query_string,
      os_database *schema_db = 0,
      char *file_name = 0,
      os_unsigned_int32 line = 0
) const;

Returns an element (pointer) of this that satisfies the specified query_string. See the description of query_string for os_Collection::query().

If there is no such element, 0 is returned.

Since the os_rDictionary stores its elements as os_references, doing a query will require that each element's os_reference be resolved. This will increase query time. Ideally there would be a reference-based index that the query can use.

The argument element_type is the name of the element type of this. Names established through the use of typedef are not allowed.

The schema_db is a database whose schema contains all the types mentioned in query_string. This database provides the environment in which the query is analyzed and optimized. The database in which the collection resides is often appropriate.

void *query_pick(const os_bound_query&) const;

Returns an element of this that satisfies the specified bound query.

If there is no such element, 0 is returned.

os_rDictionary::remove()

void remove(const K &key_ref, const E element);

Removes the dictionary entry with the element element at the key value referred to by key_ref. This overloading of remove() differs from the next overloading only in that the key is specified with a reference instead of a pointer. If removing this element leaves no other elements at this key value, then the key is removed and deleted.

void remove(const K *key_ptr, const E element);

Removes the dictionary entry with the element element and the key referred to by key_ptr. This overloading differs from the preceding overloading of remove() only in that the key is specified with a pointer instead of a reference. If removing this element leaves no other elements at this key value, the key is removed and deleted.

os_rDictionary::remove_value()

E remove_value(const K &key_ref, os_unsigned_int32 n = 1);

Removes n dictionary entries with the key value referred to by key_ref. If there are fewer than n, all entries in the dictionary with that key are removed. If there is no such entry, the dictionary remains unchanged. If removing this element leaves no other elements at this key value, the key is removed and deleted.

This overloading of remove_value() differs from the next overloading only in that the key is specified with a reference instead of a pointer.

For each removed entry, the collection's cardinality decreases by 1 and the count (or number of occurrences) of the removed element in the collection decreases by 1.

void remove_value(const K *key_ptr, os_unsigned_int32 n = 1);

Removes n dictionary entries with the key pointed to by key_ptr. This overloading differs from the previous overloading of insert() only in that the key is specified with a pointer instead of a reference. If removing this element leaves no other elements at this key value, the key is removed and deleted.

os_rDictionary::retrieve()

E retrieve(const os_cursor&) const;

Returns the element of this at which the specified cursor is located. If the cursor is null, err_coll_null_cursor is signaled. If the cursor is invalid, err_coll_illegal_cursor is signaled.

os_rDictionary::retrieve_key()

const K *retrieve_key(const os_cursor&) const;

Returns the key of the element of this at which the specified cursor is located. If the cursor is null, err_coll_null_cursor is signaled. If the cursor is invalid, err_coll_illegal_cursor is signaled.

os_rep

An instance of this class is used to build an os_rep_policy or os_rep_list. Each os_rep serves to associate a collection representation type with a threshold cardinality. The threshold is the largest cardinality at which the associated representation applies.

os_rep::os_rep()

os_rep(os_rep_type rep_enum, os_unsigned_int32 threshold);

Creates an os_rep that specifies a representation of rep_enum until cardinality threshold. rep_enum should be one of the following:

os_packed_list_rep
os_ordered_ptr_hash_rep
os_ptr_bag_rep
os_chained_list_rep
os_ixonly_rep
os_ixonly_bc_rep
os_dyn_hash_rep
os_dyn_bag_rep
os_vdyn_hash_rep_os_reference
os_vdyn_bag_rep_os_reference

os_Set

template <class E>

class os_Set : public os_Collection<E>

A set is an unordered collection that does not allow duplicate element occurrences. The count of a value in a given set is the number of times it occurs in the set - either 0 or 1.

The class os_Set is parameterized, with a parameter for constraining the type of values allowable as elements (for the nonparameterized version of this class, see os_set). This means that when specifying os_Set as a function's formal parameter, or as the type of a variable or data member, you must specify the parameter (the set's element type). This is accomplished by appending to os_Set the name of the element type enclosed in angle brackets, < >:

      os_Set<element-type-name>

The element type parameter, E, occurs in the signatures of some of the functions described below. The parameter is used by the compiler to detect type errors.

The element type of any instance of os_Set must be a pointer type.

Create collections with the member create() or, for stack-based or embedded collections, with a constructor. Do not use new to create collections.

os_Set enumerators

The following table lists the enumerators inherited by os_Set from os_collection.


Name	Inherited From
allow_duplicates	os_collection
allow_nulls	os_collection
associate_policy	os_collection
dont_associate_policy	os_collection
dont_verify	os_collection
EQ	os_collection
GT	os_collection
LT	os_collection
maintain_cursors	os_collection
maintain_order	os_collection
order_by_address	os_collection
pick_from_empty_returns_null	os_collection
signal_cardinality	os_collection
signal_duplicates	os_collection
unordered	os_collection
verify	os_collection

os_Set::create()

static os_Set<E> &create(
      os_database *db,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new set in the database pointed to by db. If the transient database is specified, the set is allocated in transient memory.

The behavior is a bit pattern, the bit-wise disjunction (using the operator |) of enumerators indicating the desired properties. The enumerators are

os_collection::allow_nulls
os_collection::signal_duplicates
os_collection::pick_from_empty_returns_null
os_collection::maintain_cursors

See the class os_collection for an explanation of each enumerator.

A run-time error is signaled if an attempt is made to create a set that is ordered or allows duplicates.

Representation policy

The default representation for a set is

An os_Set created as an embedded object has a representation of os_tiny_array (0 to 4 elements).
An embedded set becomes out of line and mutates to an os_chained_list when the fifth element is inserted.
A set created with ::create and a cardinality of <= 20 is represented as an os_chained_list.
Once the set grows past 20 its representation is os_dyn_hash unless it has maintain_cursors behavior, in which case the representation is os_packed_list.

An os_Set can have the following additional behaviors:

pick_from_empty_returns_null
signal_duplicates
allow_nulls

static os_Set<E> &create(
      os_segment * seg,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new set in the segment pointed to by seg. If the transient segment is specified, the set is allocated in transient memory. The rest of the arguments are just as described previously.

static os_Set<E> &create(
      os_object_cluster *clust,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new set in the object cluster pointed to by clust. The rest of the arguments are just as described previously.

static os_Set<E> &create(
      void * proximity,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new set in the segment occupied by the object pointed to by proximity. If the object is part of an object cluster, the new set is allocated in that cluster. If the specified object is transient, the set is allocated in transient memory. The rest of the arguments are just as described previously.

os_Set::default_behavior()

static os_unsigned_int32 default_behavior();

Returns a bit pattern indicating this type's default behavior.

os_Set::destroy()

static void destroy(os_Set<E>&);

Deletes the specified collection and deallocates associated storage. This is the same as deleting the os_Set.

Assignment Operator Semantics

os_Set::operator =()

os_Set<E> &operator =(const os_Collection<const E> &s);

os_Set<E> &operator =(E e);

Clears the target collection, inserts the element e into the target collection, and returns the target collection.

os_Set::operator |=()

os_Set<E> &operator |=(const os_Collection<E> &s);

Inserts the elements contained in s into the target collection, and returns the target collection.

os_Set<E> &operator |=(E e);

Inserts the element e into the target collection, and returns the target collection.

os_Set::operator &=()

os_Set<E> &operator &=(const os_Collection<E> &s);

For each element in the target collection, reduces the count of the element in the target to the minimum of the counts in the source and target collections. It returns the target collection.

os_Set<E> &operator &=(E e);

If e is present in the target, converts the target into a collection containing just the element e. Otherwise, it clears the target collection. It returns the target collection.

os_Set::operator -=()

os_Set<E> &operator -=(const os_Collection<E> &s);

For each element in the collection s, removes s.count(e) occurrences of the element from the target collection. It returns the target collection.

os_Set<E> &operator -=(E e);

Removes the element e from the target collection. It returns the target collection.

os_Set::os_Set()

os_Set();

Returns an empty set.

os_Set(os_collection_size);

The user should pass an os_int32 for the os_collection_size actual argument. Returns an empty set whose initial implementation is based on the expectation that the specified os_int32 indicates the approximate usual cardinality of the set, once it has been loaded with elements.

os_Set(const os_Set<E>&);

Returns a set that results from assigning the specified set to an empty set.

os_Set(const os_Collection<E>&);

Returns a set that results from assigning the specified collection to an empty set.

os_set

class os_set : public os_collection

A set is an unordered collection that does not allow duplicate element occurrences. The count of a value in a given set is the number of times it occurs in the set - either 0 or 1.

The class os_set is nonparameterized. For the parameterized version of this class, see os_Set.

os_set enumerators

The following table lists the enumerators inherited by os_set from os_collection.


Name	Inherited From
allow_duplicates	os_collection
allow_nulls	os_collection
associate_policy	os_collection
dont_associate_policy	os_collection
dont_verify	os_collection
EQ	os_collection
GT	os_collection
LT	os_collection
maintain_cursors	os_collection
maintain_order	os_collection
order_by_address	os_collection
pick_from_empty_returns_null	os_collection
signal_cardinality	os_collection
signal_duplicates	os_collection
unordered	os_collection
verify	os_collection

os_set::create()

static os_set &create(
      os_database *db,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new set in the database pointed to by db. If the transient database is specified, the set is allocated in transient memory.

The behavior is a bit pattern, the bit-wise disjunction (using the operator |) of enumerators indicating the desired properties. The enumerators are

os_collection::allow_nulls
os_collection::signal_duplicates
os_collection::pick_from_empty_returns_null
os_collection::maintain_cursors

See the class os_collection for an explanation of each enumerator.

A run-time error is signaled if an attempt is made to create a set that is ordered or allows duplicates.

static os_set &create(
      os_segment * seg,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new set in the segment pointed to by seg. If the transient segment is specified, the set is allocated in transient memory. The rest of the arguments are just as described previously.

static os_set &create(
      os_object_cluster *clust,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new set in the object cluster pointed to by clust. The rest of the arguments are just as described previously.

static os_set &create(
      os_object_cluster *proximity,
      os_unsigned_int32 behavior = 0,
      os_int32 expected_size = 0,
      const os_coll_rep_descriptor *rep_policy = 0,
      os_int32 retain = dont_associate_policy
);

Creates a new set in the specified object cluster. The rest of the arguments are just as described previously.

os_set::default_behavior()

static os_unsigned_long default_behavior();

Returns a bit pattern indicating this type's default behavior.

os_set::destroy()

static void destroy(os_set&);

Deletes the specified collection and deallocates associated storage.

Note: The assignment operator semantics are described below in terms of insert operations into the target collection. Describing the semantics in terms of insert operations serves to illustrate how duplicate, null, and order behavior are enforced. The actual implementation of the assignment might be quite different, while still maintaining the associated behavior.

os_set::operator =()

os_set &operator =(const os_set &s);

os_set &operator =(const void *e);

Clears the target collection, inserts the element e into the target collection, and returns the target collection.

os_set::operator |=()

os_set &operator |=(const os_set &s);

Inserts the elements contained in s into the target collection and returns the target collection.

os_set &operator |=(const void *e);

Inserts the element e into the target collection and returns the target collection.

os_set::operator |()

os_set &operator |(const os_collection &s) const;

Copies the contents of this into a new collection, then inserts the elements of s into the new collection. The new collection is then returned. If s allows duplicates, the result does. If either operand allows nulls, the result does. The result does not maintain order, maintain cursors, or signal duplicates.

os_set &operator |(const void *e) const;

Copies the contents of this into a new collection, then inserts e into the new collection. The new collection is then returned. If this allows nulls, the result does. The result does not allow duplicates, maintain order, maintain cursors, or signal duplicates.

os_set::operator &=()

os_set &operator &=(const os_set &s);

os_set &operator &=(const void *e);

If e is present in the target, converts the target into a collection containing just the element e. Otherwise, it clears the target collection. It returns the target collection.

os_set::operator &()

os_set &operator &(const os_collection &s) const;

Copies the contents of this into a new collection, c, and then performs c &= s. The new collection, c, is then returned. If s allows duplicates, the result does. If either operand allows nulls, the result does. The result does not maintain order, maintain cursors, or signal duplicates.

os_set &operator &(const void *e) const;

Copies the contents of this into a new collection, c, and then performs c &= s. The new collection, c, is then returned. If this allows nulls, the result does. The result does not allow duplicates, maintain order, maintain cursors, or signal duplicates.

os_set::operator -=()

os_set &operator -=(const os_set &s);

os_set &operator -=(const void *e);

Removes the element e from the target collection. If the collection is ordered, it is the first occurrence of the element that is removed from the target collection. It returns the target collection.

os_set::operator -()

os_set &operator -(const os_collection &s) const;

Copies the contents of this into a new collection, c, and then performs c -= s. The new collection, c, is then returned. If s allows duplicates, the result does. If either operand allows nulls, the result does. The result does not maintain order, maintain cursors, or signal duplicates.

os_set &operator -(const void *e) const;

Copies the contents of this into a new collection, c, and then performs c -= s. The new collection, c, is then returned. If this allows nulls, the result does. The result does not allow duplicates, maintain order, maintain cursors, or signal duplicates.

os_set::os_set()

os_set();

Returns an empty set.

os_set(os_collection_size);

os_set(const os_set&);

Returns a set that results from assigning the specified set to an empty set.

os_set(const os_collection&);

Returns a set that results from assigning the specified collection to an empty set.

os_set::retrieve()

void* retrieve(const os_cursor&) const;

Returns the element at which the specified cursor is positioned. If the cursor is null, err_coll_null_cursor is signaled. If the cursor is nonnull but not positioned at an element, err_coll_illegal_cursor is signaled.

[previous] [next]

Updated: 03/31/98 15:53:38
